C9 Splittering Stone Machine
- Tianjin
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas | |
| Brand Name | HMJ | Model Number | HM80A |
Product Description
The hydraulic log splitter for tractor is our newly developed produce which is composed of two parts: hydraulic pumping station and splitter. The supper-high-pressure oil-driven oil cylinder outputted by the pumping station generates gigantic driving power, which can split
Technical Paramter of hydraulic splitter
1. Hydraulic power pump station:
Motor type | Specification (MM) | Weight (KG) | Capacity of tank (L) | Working Pressure(Mpa) | Power | Working Medium | Work Flow (L/M) | Configurable splitting hammer number (Piece) |
Diesel Type | 1150*750*800 | 120 | 25 | 55-60 | 4HP | 46 or 68 anti-wear hydraulic oil | 2-13 | 1-3 |
1280*1180*940 | 145 | 45 | 55-60 | 7.7HP | 2-13 | 3-6 | ||
Electric Type | 380*240*410 | 60 | 25 | 55-60 | 2.2KW(220V/380V) | 2-13 | 1-10 | |
384*280*620 | 75 | 30 | 55-60 | 4KW(380V) | 13 | 1-10 | ||
450*410*700 | 100 | 40 | 55-60 | 5.5KW(380V) | 2-13 | 1-10 | ||
Anti-explosion Electric Type | 380*240*410 | 60 | 25 | 55-60 | 2.2KW(380V/660V) | 2-13 | 1-10 | |
384*280*620 | 75 | 30 | 55-60 | 4KW(660V/1140V) | 2-13 | 1-10 | ||
Pneumatic Type | 284*285*620 | 100 | 40
| 55-60 | 2000r/m, 4.04KW,5.5HP | 2-13 | 1-10 | |
Gasoline Type | 1200*1170*800 | 100 | 40 | 55-60 | 7.5HP | 2-13 | 1-10 |
2. Splitter hammer
Model | Piston Diameter/Stroke(MM) | Hole Diameter(MM) | Hole Depth(MM) | Actually Splitting Force (T) | Splitting Distance(MM) | Length of Cylinder body(MM) | Counter wedge length(MM) | Weight (KG) |
HM80A | 80 /200 | 40-42 | 400 | 380 | 12 | 900 | 200 | 21 |
HM80B | 80/ 200 | 42-45 | 600 | 500 | 13 | 1000 | 230 | 28 |
HM80C | 80/ 200 | 42-45 | 700 | 420 | 12 | 1100 | 380 | 29 |
HM80D | 80/ 250 | 42-45 | 800 | 460 | 14 | 1250 | 450 | 32 |
HM80E | 80/ 140 | 40-42 | 300 | 360 | 14 | 700 | 130 | 20 |
HM90A | 80/ 200 | 40-42 | 400 | 580 | 12 | 900 | 200 | 31 |
HM90B | 80/ 200 | 42-45 | 600 | 700 | 13 | 1000 | 230 | 38 |
HM90C | 80/ 200 | 42-45 | 700 | 620 | 12 | 1100 | 380 | 39 |
HM90D | 80/ 250 | 42-45 | 800 | 660 | 14 | 1250 | 450 | 42 |
Pictures of hydraulic splitter

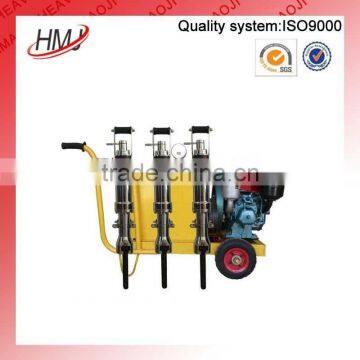

Diesel hydraulic splitter Gasoline hydraulic splitter
Electric hydraulic splitter Pneumatic rock splitter
