Home > Products > LiFePO4 Cells > LiFePO4 3.2V60Ah Prismatic Battery
LiFePO4 3.2V60Ah Prismatic Battery
- hongkong
 - T/T

You May Like
Product Details
| Place of Origin | Hubei, China | Brand Name | Ocell | |
| Model Number | IFP36130200EC-60Ah | Type | Li-Ion | |
| Components | Other, LiFePO4 | Size | 36mm(W)*130mm(L)*215mm(H) | |
| Voltage | 3.2V | Weight | 1.8Kg | |
| Nominal Capacity | 60Ah | Application | energy storage system, solar light battery, EV etc |
Standard package
Product Description
No.  | Items  | Specifications  |
1  | Charge cut-offvoltage  | 3.60V  |
2  | Nominal voltage  | 3.2V  |
3  | Minimal capacity  | 60Ah@ 0.2C  |
4  | Nominal capacity  | 60Ah@ 0.2C  |
5  | Charge current  | 0.2C  |
6  | Standard chargingmethod  | 0.2CCC (constant current) charge to 3.60V, then CV (constant voltage 3.60V) charge till charge current decline to £ 0.05C  |
7  | Charging time  | Standard charge: 6.5 hours Ref  |
8  | Max. charge current  | 60A  |
9  | Max. continue discharge current  | 120A  |
10  | Discharge cut-off voltage  | 2.0V  |
11  | Operating temperature  | Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 65°C)  |
12  | Storage temperature/humidity  | Temperature -10°C ~ +30°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage)  |
13  | Cell Weight  | 1.8Kg  |

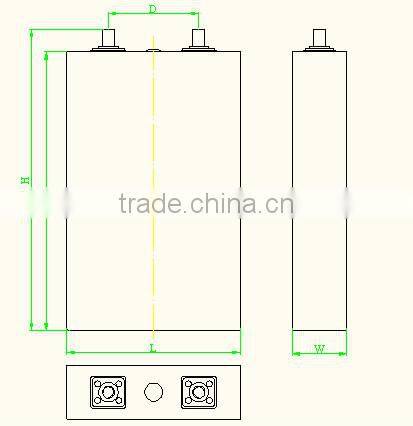

H (mm)  | h (mm)  | W (mm)  | L (mm)  | D (mm)  |
215  | 200  | 36±0.5  | 130±1.0  | 74±1.0  |
.
3.2V LiFePO4 battery (Prismatic) Models
| Model | IFP30135185EC | IFP36115205EC | IFP36130200EC | IFP60150190EC | IFM3-1800EC | |
| voltage (V) | 3.2 | |||||
| Nominal capacity(Ah) | 50 | 60 | 60 | 100 | 180 | |
| Charging method | CC, CV | |||||
| Standard charging / discharging current(A) | 15 | 12 | 12 | 20 | 36 | |
| Max. charging current(A) | 50 | 60 | 60 | 100 | 90 | |
| Max. discharging current(A) | 150 | 180 | 120 | 300 | 90 | |
| Max. charging voltage(V) | 3.65 | |||||
| discharge cut-off voltage(V) | 2 | |||||
| Dimension | Length (mm) | 135 | 115 | 130 | 150 | 180 |
| width(mm) | 30 | 36 | 36 | 60 | 73 | |
| Height (mm) | 180 | 205 | 200 | 189 | 278 | |
| Total Height (mm) | 185 | 220 | 215 | 205 | 285 | |
| resistance(mΩ) | 3 | 3 | 3 | 2.5 | 5 | |
| Approx. Weight (Kg) | 1.4 | 1.8 | 1.8 | 3.2 | 6 | |
Contact Johnson AT for customized models
Skype: csulwp
QQ: 20146075
.
