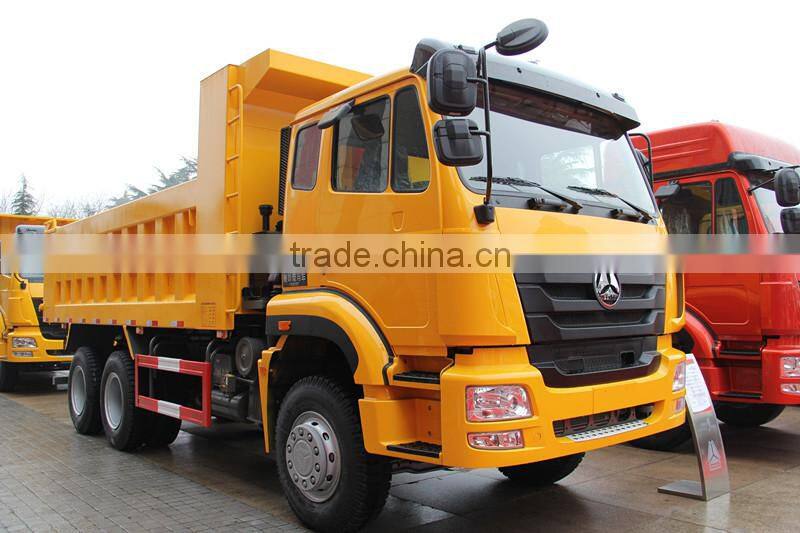

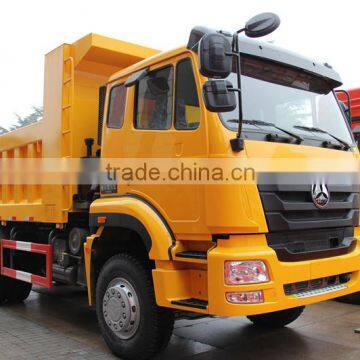

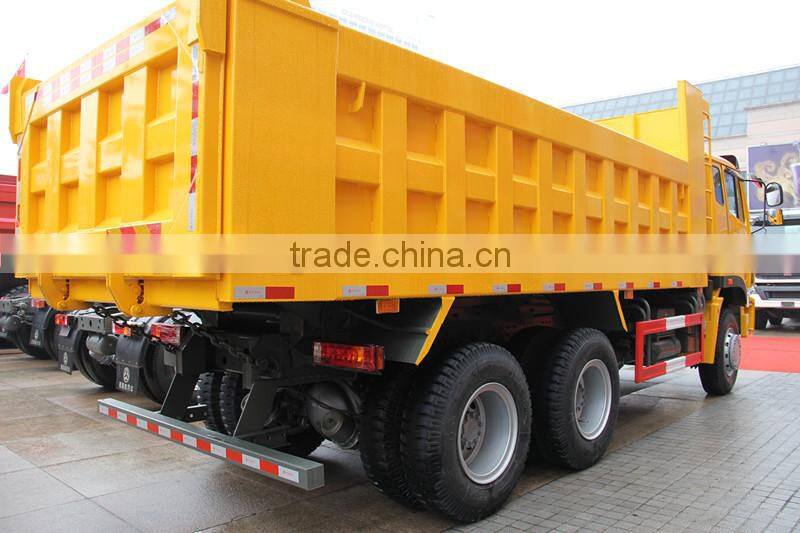

CHina Heavy Trucks Hohan 10 Wheel Tipper Dump Truck ZZ3255N3246C1 Made in CHina

Truck Model

ZZ3255N3246C1 (LHD)

Truck Brand

SINOTRUK –HOHAN

Dimension(Lx W xH)(unloaded)

7857x2496x3237

Cargo body size (L*W*H, mm)

5200x2300X1300

Cargo body thickness(mm)

bottom:8mm, side:6mm,

Lift type of Carriage

Ventral lifting

Approaching angle/Departure angle(°)

19/28

Overhang(front/rear) (mm)

1550/1732

Wheel base (mm)

3225+1350

Max speed(km/h)

75

Curb weight(kg)

11920

Total Weight(kg)

25000

Fuel tanker capacity

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

D430 diaphragm type clutch

Engine Model

(Steyr technology, made in China)

Model

WD615.62- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling

Horse Power, max(kw/rpm)

336HP

Emission Standard

EURO II

Transmission

Model

HW 15710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

D50  hydraulic steering with power assistance

Front axle

HF9 , Steering with double T-cross section beam

Rear axle

AC16, Casting axle housing, central double reduction with differential locks between axles and wheels

Color

Optional

Tire

11.00-20 11 pieces,one spare

Cab

H16 cab, (one sleeper,with air-condition),

all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
