China New Brand Heavy Trucks Sinotruk Howo A7 Tow Trucks With High Quality
- shanghai tianjin qingdao
- T/T
You May Like
-
Low Price Sale for CHina SInotruk Heavy Truck Howo A7 Tow Trucks Made in CHina
-
Low Price Sale for China Heavy Truck Sinotruk Howo 6x4 Tow Trucks Low Price Sale
-
Low Price Sale for China SInotruk Heavy Truck Howo 4x2 Tow Trucks With High Quality
-
2016 New Brand CHina SInotruk Heavy Trucks Howo 4x2 Tow Truck Made in China
-
Low Price Sale for Sinotruk Heavy Trucks Howo 6x4 Tow Trucks Made in CHina
-
China Heavy Trucks SInotruk Howo10 Wheel Tow Trucks / Sinotruk Howo Tractor Trucks With High Quality
Product Details
| Condition | New | Horsepower | 251 - 350hp | |
| Drive Wheel | 6x4 | Transmission Type | Manual | |
| Emission Standard | Euro 2 | |||
| Fuel Type | Diesel | Brand Name | HOWO A7 | |
| Size | 6160X2496X3850 | Gross Vehicle Weight | 25000 kg |
Product Description

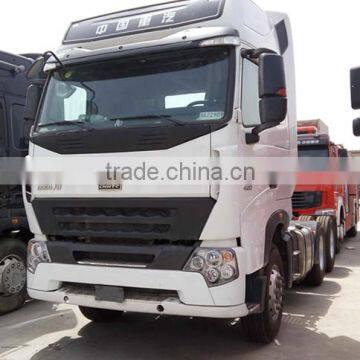

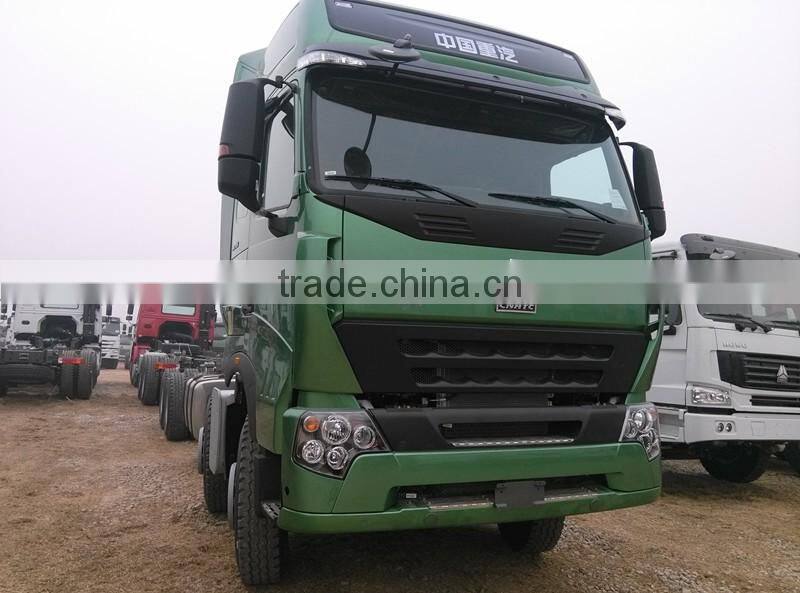

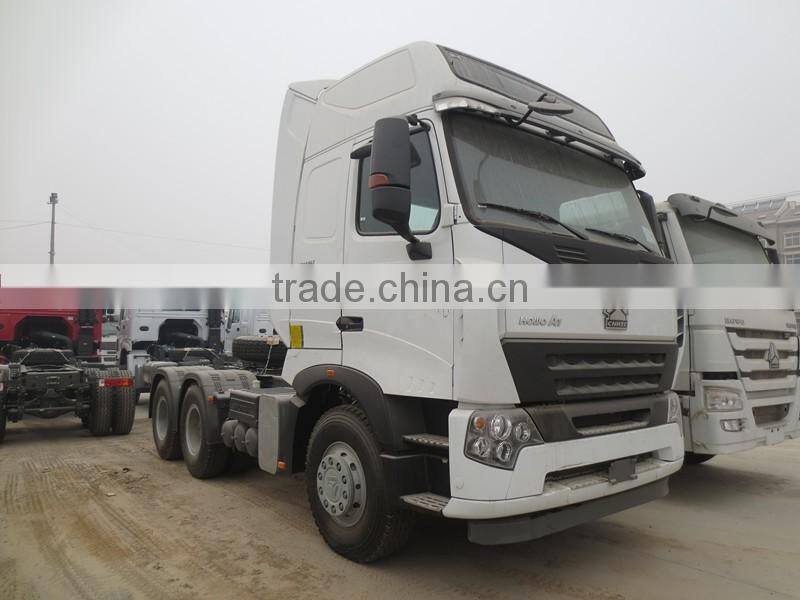

China New Brand heavy trucks Sinotruk howo A7 tow trucks with high quality
Truck model | ZZ4257M3247N1B /T2GA | ZZ4257N3247N1B /N2GA | ZZ4257N3247N1B /S2GA | ZZ4257N3247N1B /S2GC | ZZ4257V3247N1B /V2GC | |
cab | Type | A7-G | ||||
style | High floor and lengthen cab, single sleeper, the air suspension seat, adjustable steering wheel, air conditioning heater, | |||||
Engine | type | D10.30 | D10.34 | D10.38 | D12.38 | D12.42 |
Rated power kW/rpm
| 221/1900 | 249/1900 | 279/2000 | 279/2000 | 309/2000 | |
Max torque Nm/rpm | 1340/1200-1500 | 1490/1200-1500 | 1590/1200-1500 | 1650/1100-1500 | 1820/1100-1500 | |
emission L | 9.726 | 9.726 | 9.726 | 11.596 | 11.596 | |
Style | In-line, six clyinder engine, inter-cooling, supercharger in the middle, | |||||
Clutch | The engine likeD10.38, D12.38 and D12.42 used 430A, D10.34 used 430B, D10.30 used 430C | |||||
transmmision | SINOTRUK HW SERIES 10 transsimision, the structure of main and vice box, D10.30 and D10.34 with HW15710, D10.38 and D12.42 with HW19710 | |||||
Front axle | HF7, rated weitht 7 t, the style of disk or drum | |||||
Rear axle | HW1697(3.73, optional 4.22); besides ZZ4187V3517N1B/V2Pcyou can thoose ST16 (3.93; optional 4.42; 4.8) | |||||
suspension | steel spring, damper, anti-roll bar in front/rear suspension | |||||
Steering system | ZF8098steering gear box, Zfsteering oil pumpe, system pressure18MPa | |||||
Electric system | CAN, voltage: 24V; engine: 1540W; starter:7.5kW ; accumulater:12V/165Ah, 2 | |||||
Tyre | 315/80R22.5; optional 12.00R20 | |||||
Fuel tank capacity L | Standard 400L, optional 600L | |||||
Curb weight kg | 8800 | 8800 | 8800 | 8800 | 8800 | |
Gvw kg | 25000 | 25000 | 25000 | 25000 | 25000 | |
Trailer total quality kg | 34800 | 40000 | 40000 | 40000 | 40000 | |
Max load of saddle kg | 16070 | 16070 | 16070 | 16070 | 16070 | |
Dimension(length x widthx) mm | 6185x2496x3560 | 6985x2496x3560 | 6985x2496x3850 | 6985x2496x3850 | 6985x2496x3560
| |
Wheel base mm | 3200+1400 | 3200+1400 | 3200+1400 | 3200+1400 | 3200+1400 | |
Front/rear overhang mm | 1540/870 | 1540/870 | 1540/870 | 1540/870 | 1540/870 | |
Truck(fronty/rear mm | 2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | 2022/1850 | |
Min ground clearance mm | 268 | 268 | 268 | 268 | 268 | |
Approaching/departure angle | 15/46 | 15/46 | 15/46 | 15/46 | 15/46 | |
Max speed km/h | 101 | 101 | 101 | 101 | 101 | |
Max grade ability % | 24 | 24.6 | 26.5 | 27.6 | 30.9 | |
Min turning diameter m | 15 | 15 | 15 | 15 | 15 | |
Saddle grounclearance (empty/full) mm mm | 1390/1326 | 1390/1326 | 1390/1326 | 1390/1326 | 1390/1326 | |
Front/rear turning radius mm | 2460/2250 | 2460/2250 | 2460/2250 | 2460/2250 | 2460/2250 | |
Traction pin specifications | 50# (2hour | 50# (2hour | 50# (2hour ) | 50# (2 hour | 50# (2hour | |
Our company is one of the few heavy truck manufactures in China
that have the ability to produce heavy truck engines,cabins and axles.
our development target is to bulid the company into a "world
well-known heavy truck manufacturing base which is displaceable
in China".
In order to realize this target,the enterprise will insist on carrying
out four strategies,i.e internationalization,technology ahead,high quality
and low cost, and regionalization to realize the internationalization of
products,market, capital,mechanism,brand and talent and establish
an international sustainable enterprise with self-innovation capability
and core competitiveness.Sincerely hope to make a long business
relationship with you.
