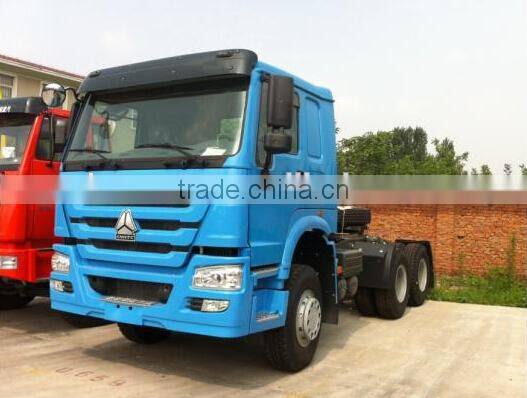

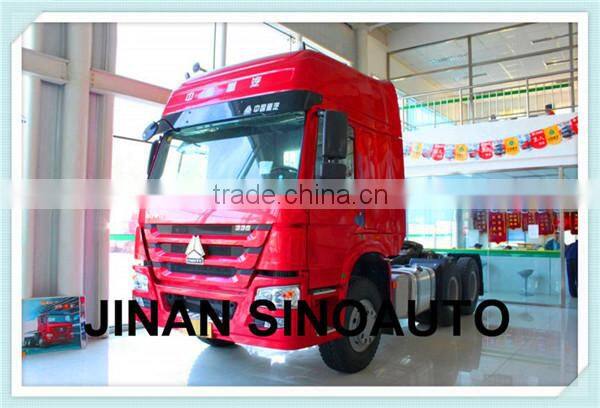

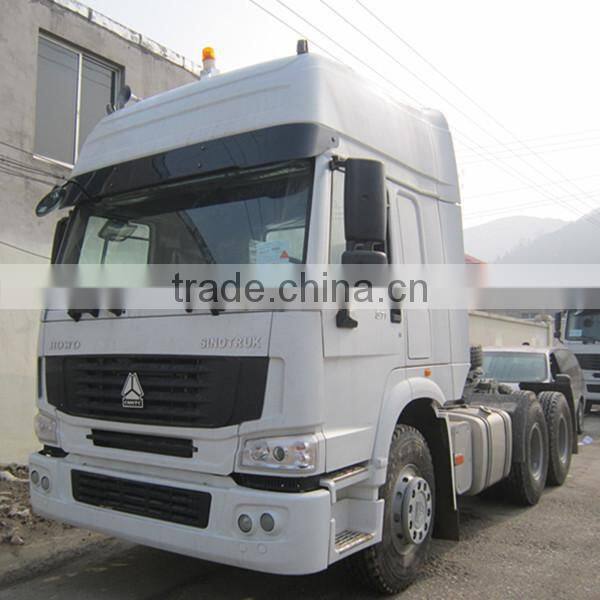

2017 New Brand SInotruk Howo 6x4 Tractor Truck Head With High Quality

Model

SINOTRUK HOWO 6x4 tractor truck

Cabin

Four points suspension Cabin with spring and air shock absorber,

Adjustable steering, Sun cover, A/C, low cabin with single sleeper

Engine

Type: Diesel 4-stroke Direct injection,6-cylinder in line, Turbo-charging

Inner cooling.

Model:

WD615.69

STEYR technology(CNHTC)

Engine power

371hp/247kw

Displacement(L):

9.726 liter (Euro 2 standard)

Max torque:

1160NM@1100-1600rpm

Gear box

CNHTC

Max torque:1900NM

Model:

HW19710

Speed:

10speed, 2 reverse

Axle(front/rear)

Front axle

HF9 STEYR technology front steering axle

Tandem

HC16 double reduction hub reductor driving axle

Clutch

D430 diaphragm type clutch

Brake

Service brake: Dual lines air brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)

Steering

ZF8098, driver sit at the left hand side, (RHD is optional)

Electric  Equipment

Operating voltage:

24Vnegative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah,cigar lighter

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim

12.00-20

Suspension system: Strengthen heavy duty Leaf spring type

Front/Rear

9/12

Overall dimension(mm): 6800x2496x2958 (Length x width x height)

Wheelbase

3200+1400mm

Track:

Front/Rear

2022/1850

Approach/Departure angle

16/70

Front /Rear overhang

1500/725

Max speed

102km/h

Kerb weight:

9180kg
