Home > Products > Mini excavator > ChineseMini Excavator For Sale YG15-8

ChineseMini Excavator For Sale YG15-8

FOB Price

USD $70,000 - $120,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Model Number	YG15-8, YG15-8
Moving Type	Other, Crawler Excavator, Crawler Excavator
Bucket capacity	0.1m3, 0.1m3	Maximum Digging Height	2010mm, 2010
Maximum Digging Depth	1880mm, 1880	Machine Weight	1500kg
Max Digging Radius	3500mm, 3500mm	Rated Speed	2.0Km/h, 2.0Km/h
Certification	ISO9001:2008, ISO9001:2008	After-sales Service Provided	No overseas service provided

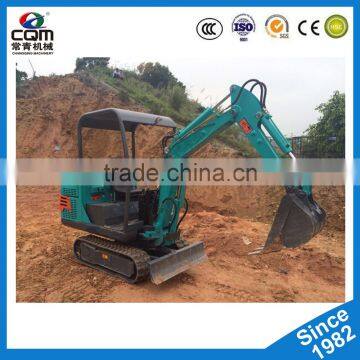

Hydraulic Hammer Mini Excavator YG15-8

The streamline modelling design, fashion and elegant appearance, reliable,highly cost effective.

A Overall Length (trans pos)	3630mm
B Overall Height (trans pos)	2150 mm
C Width of Undercarriage	990mm
D Width of Track	230mm(9.06inch)
F Length Of Track	1405mm (0.8'in)
H Dist. Between Undercarriage And Ground	205mm
J Width Of Platform	1020mm
L Dist. Between Platform And Ground	460mm
E Maximum Platform Tail Turning Radius	1180mm
I Dist. Between Boom And Ground	1105mm
G Sprocket To Idler Centres	1045mm(3'5''in)

Operation Hydraulic Pressure	16Mpa(2320PSI)
Maximum Digging Force	≥10.5 KN (2474lbs)
Maximum Gradeadility	≥58%(30°)
Travelling Speed	≥2 km/h (1.2mph)
Maximum traction	11.5 KN
Swing Speed of Platform	10rpm
Variable displacement pump capacity
Fixed displacement pump capacity	2X17.6+606L/min
Swing Angularity of the Digging Arm(left/right)	80°/80°

A Maximum Digging Height	2950mm
B Maximum Dumping Height	2010mm
C Maximum Digging Depth	1880mm
D Maximum Digging Radius	3500mm
D1 Maximum Digging Dist.of Ground	3421mm
E Maximum Height Digging Radius	2410mm
F Maximum Platform Tail Turning Radius	1530mm
G Maximum Depth for Bulldozing	170mm
H Maximum Height for Bulldozing	205mm

Delivery time for order within available stock is in 7days

Delivery time for order without available stock is in 15days

After Service

1.Guarantee for a year.

2.Quality problem,we will send you the accessories.

3.Free repair whole using life(without the freight and accessories charge).
