CNC Machine Beads Machine Wooden Bead Rosary Bead Machine CNC Lathe Machine

Crate

Specifications

Device Name : Professional CNC machine beads

Operator Training : supplied full operation of the video , commentary .

Use Tool : Standard CNC NC Arbor , hard alloy blades .

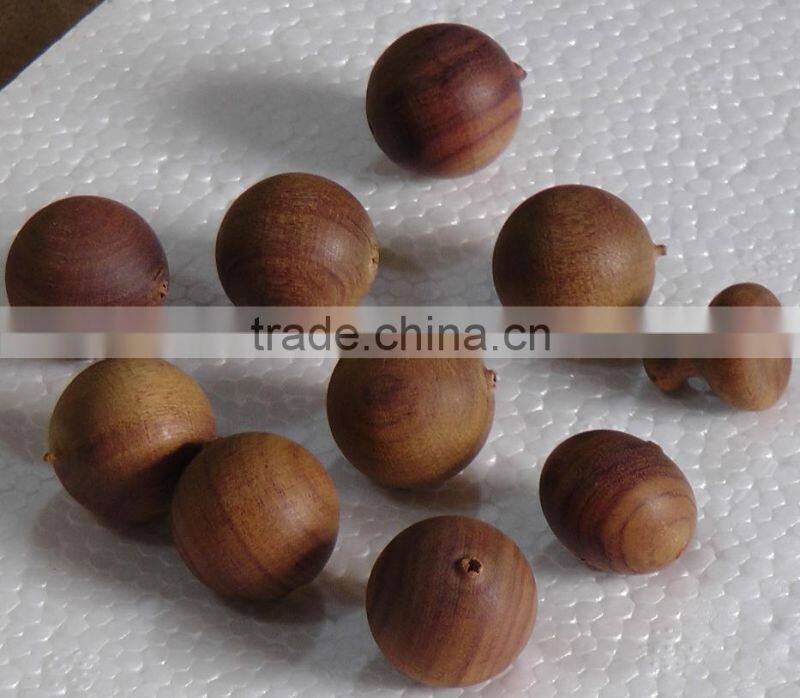

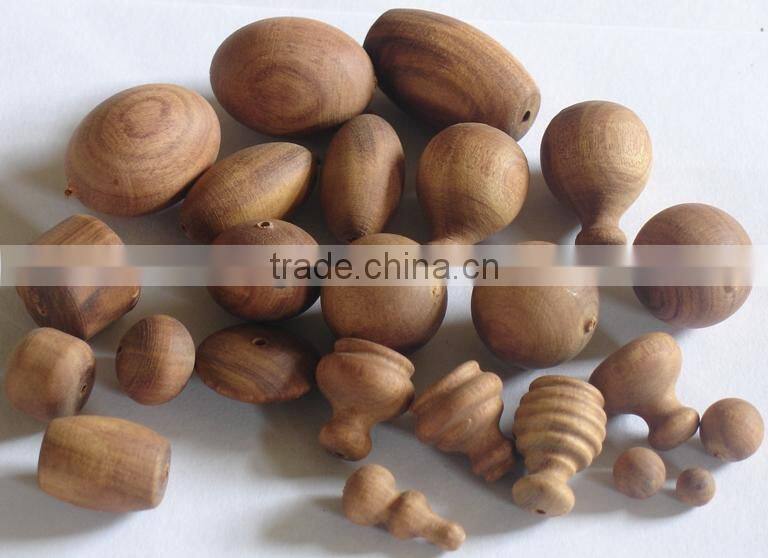

Processing range : less than 10 cm in diameter any size beads, oval beads, barrel

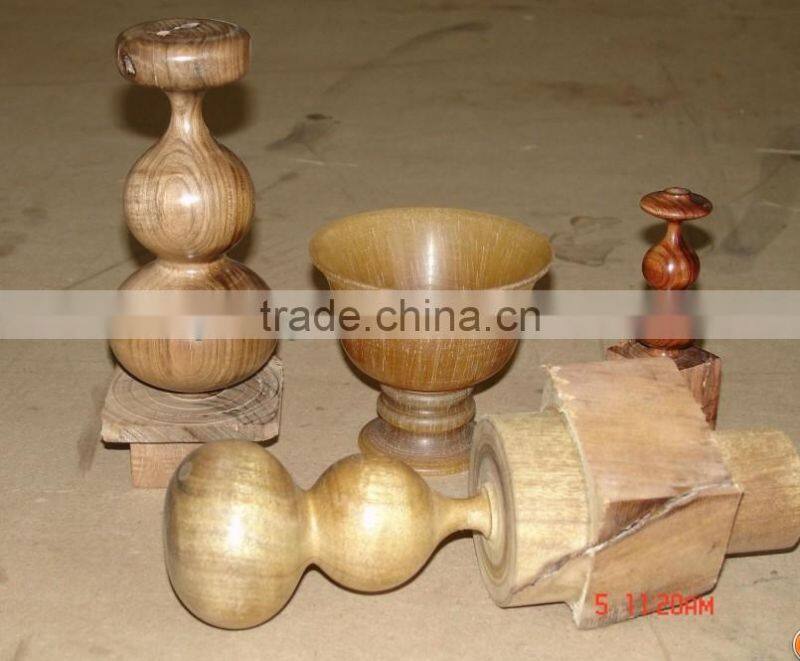

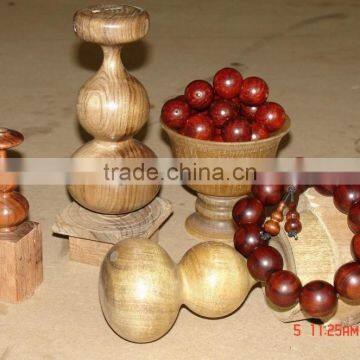

               Beads ; kinds of Buddha head pagoda pendant gourd , gourd put pieces of wood

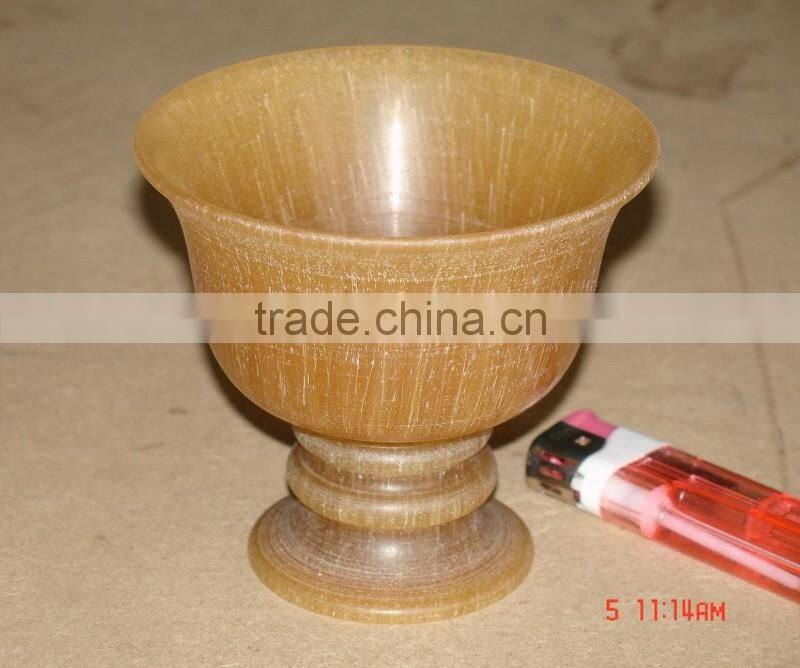

               Bowl , rhino horn cups, whip , cigarette holder , eggs, ashtray , scrolls

               First class.

              Max diameter of 10 cm , length 20 cm .

Punch mode: with automatic tail drill, computer controlled automatic concentric punch .

Power requirements: 220 volts ordinary mains , the whole power of 1000 watts maximum . Spindle

               Motor power 750 watts.

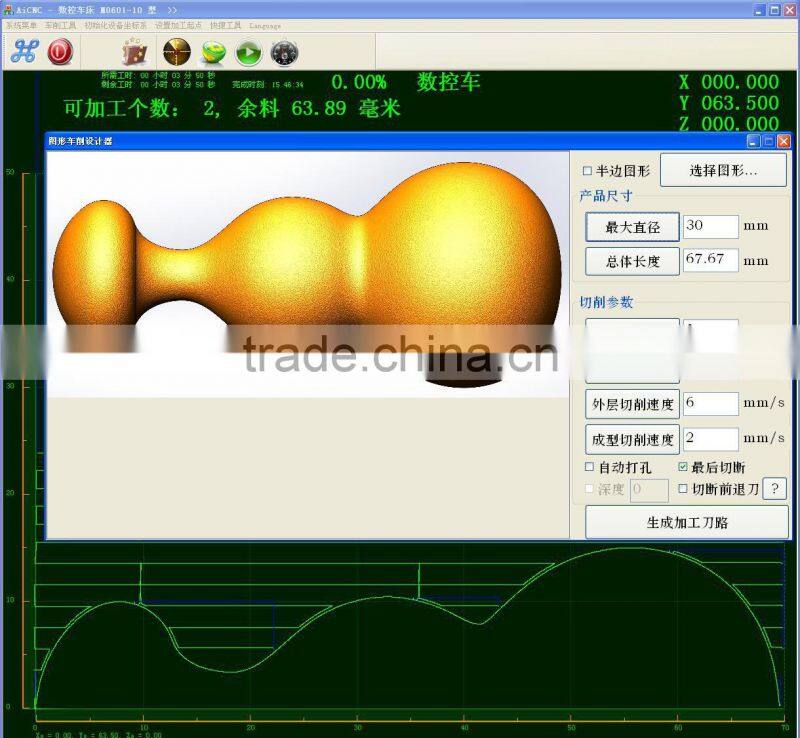

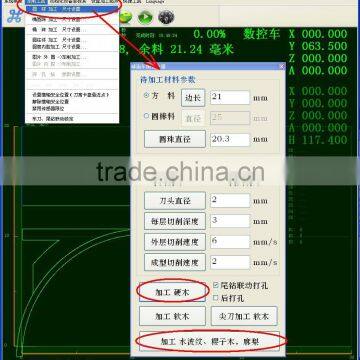

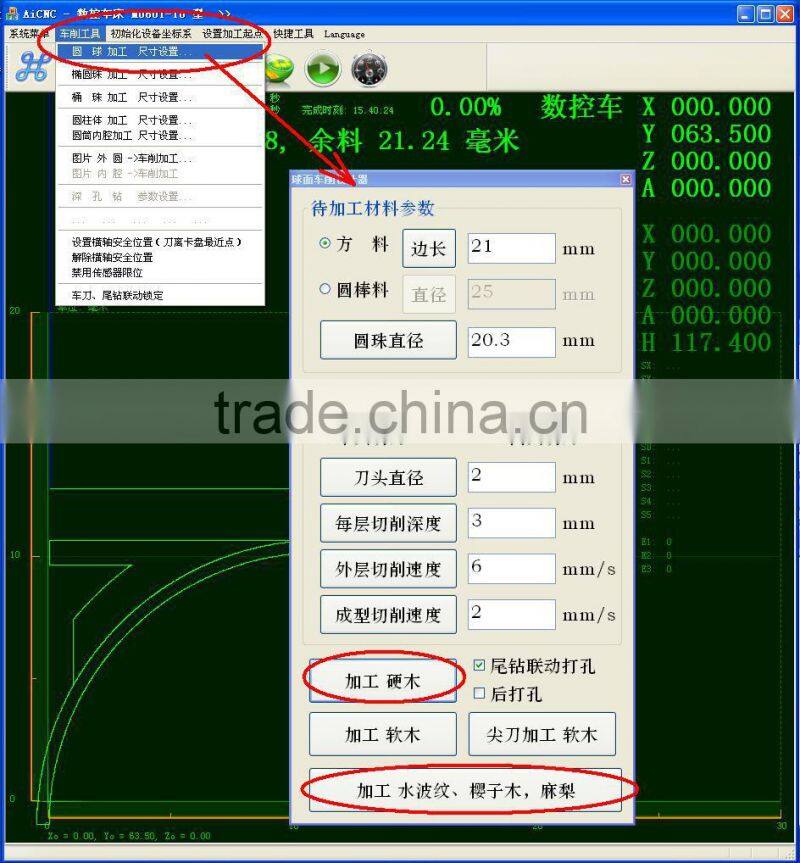

Operation: supporting designed for bracelets , designed to fool parts industry operating software

               Pieces . Processing all types of beads, direct input in the software needed

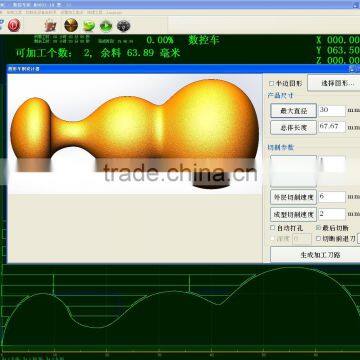

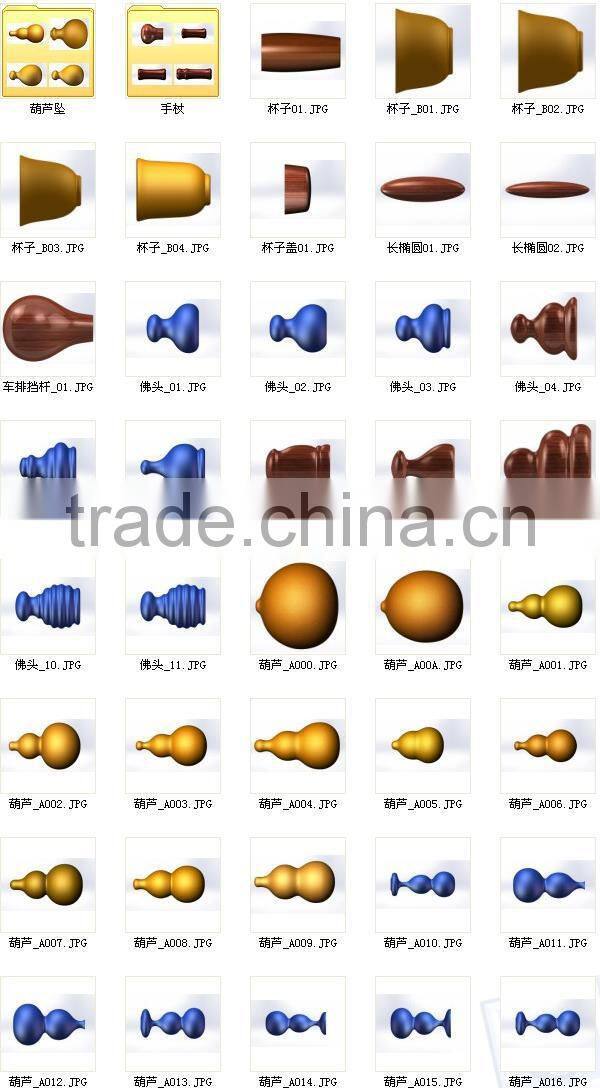

               Simple parameters such as the diameter of the beads can ; pagoda gourd , etc., directly
               Select the shape, size. No programming required , easy to use.

              You can also design your own shape, contour drawing , saved as

               bmp, jpg images can be processed .

Device accuracy : imported high-precision square rail , ball screw drive , life

               Long, high accuracy. Precision 0.01 mm .

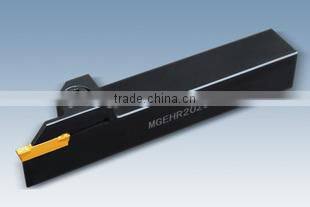

Tool life : the use of CNC cemented carbide blade ( stainless steel processing professionals

               Use ) , turning hard mahogany almost no wear . Processing 3000

               2.0 lobular red sandalwood without tool change . Extremely long life , is the standard

               Pieces . Direct replacement if damaged , need to master sharpening skills.

Processing speed: 2.0 -sized beads to prevail processing , automatic beat lobular red sandalwood

               Hole , turning 38 seconds each tablet , do not punch 30 seconds . Gold Phoebe fight

               Turning holes , 25 seconds each tablet , not every single punch 19 seconds ;

Processing 5 cm diameter handball, 2 minutes and 30 seconds one .

Working hand pieces gourd , diameter 5 cm , length 11 cm by the time 5

               Minutes.

Device dimensions: length one meter , half a meter wide , 80 cm high and weighs 150 kg .

Ship with fully enclosed wooden packaging , total weight 200 kg .

Package of equipment including lathes, CNC box each one, without the computer.
