Home > Products > Law enforcement > Multi function ventilation meter JFY-6

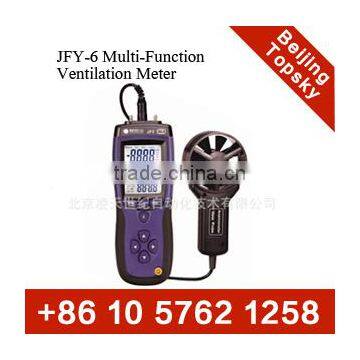

Multi function ventilation meter JFY-6
- Tianjin
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | TOPSKY | |
| Model Number | JFY-6 |
Product Description
Specifications
Intrinsically safe and explosion-proof instrumentmeasure 6 measurements simultaneously
downloading software with USB cable
Applications:
JFY-6 Multi-Function Ventilation Meter is an intrinsically safe and explosion-proof instrument, especially designed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.
It is used at the underground coal mine and mine safety inspection mainly. Certainly, it is also applied to fire fighting , chemical industry , Clean room testing, HVAC commissioning and troubleshooting, Ventilation evaluations, Process air flow testing and all kinds of environment that needed to measure the barometric pressure, differential pressure, air velocity, temperature, relative humidity and methane gas.
Key features:
- Intrinsically safe and explosion-proof instrument
- Best-in-class air velocity accuracy
- Displays up to 6 measurements simultaneously
- Large graphic display
On-screen messages and instructions
- Intuitive menu structure allows for ease of use and setup
- Multiple data logging formats
- Bluetooth communications for transferring data or remote polling
- Includes downloading software with USB cable
- Fast calibration and repair service—just send in the probe
Technical specification:
Range | ||
air velocity | 0.2 to 20 m/s | |
temperature | -20 to 50°C | |
relative humidity | 0 to 100% RH | |
barometric pressure | 100.00~1400.00hPa | |
different pressure | -1100.00~1100.00hPa | |
Accuracy | ||
air velocity | ±0.4 m/s | |
temperature | ±2.5% | |
relative humidity | ±2% RH | |
barometric pressure | 2% of reading | |
different pressure | ±2% | |
Resolution | ||
air velocity | 0.01 m/s | |
temperature | 0.1°C | |
relative humidity | 0.1% RH | |
different pressure | 0.01mm Hg, 1 Pa | |
Data storage capabilities | 15000test IDs(manual, auto save continuous) | |
Explosion protection | Exibd I | |
Protection grade | IP54 | |
External Meter Dimensions | 203mm x 75mm x 50mm | |
Power Requirements | 9V 1000mAh lithium battery | |
Accessories:
Rotating Vane Probe, USB cable , lithium battery, Carrying case and Operate guidebook.
