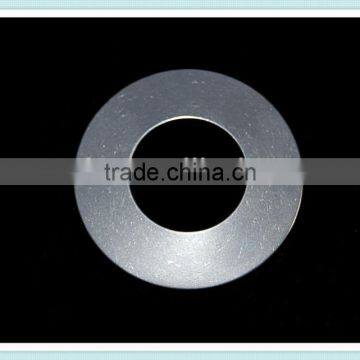

50CrV4 / stainless steel DIN2093 disc spring

Specifications

Description:

Disc springs are conically-shaped, washer-type components designed to be axially loaded. We make disc springs as per DIN 2093, the deflection for a given load is predictable and the minimum life cycle can be determined. Disc springs can be statically loaded either continuously or intermittently, or dynamically subjected to continuous load cycling. They can be used singly or in multiples stacked parallel, in series or in a combination thereof.

The advantages of disc springs compared to other types of springs include the following

A wide range of load/deflection characteristics

*    High load capacity with small deflection

*    Space savings – high load to size ratio

*    No set under design loads

*    Longer fatigue life

*    Inherent dampening especially with parallel stacking

*    Flexibility in stack arrangement to meet your application requirements

Applications with disc springs in use

  o       Control Safety Valve

  o       Automatic Quick Tool Changer (CNC Machines, etc.)

  o       Torque Converter

  o       Clutches Manual Transmission

  o       Nozzle of Spray Injection Moulding Unit

  o       Brake System

  o       Brake Slack Adjuster

  o       Stamping Machine

  o       Damper

  o       Over Load Protection

1. Disc spring as per DIN2093 and GB/T1972-2005

2. Material: 60Si2MnA, 50CrVA, SUS301, SUS304, SUS316, HP15-7Mo, 17-7pH, 30W4Cr2v, INCONEL -750, INCONEL-718, 21 CrMoV 5-7,

X 22 CrMoV 12-1, X 35 CrMo 17, X 30 WCrV 5-3, A286, CuSn 8, CuBe 2, Nimonic 90.

3. Surface treatment: Phosphating, electrophoresis, oxidize Bluing, mechanical Zinc plating, Polish, original, white zinc, black, nickel, chrome

4. The characteristics of disc spring is "maximum force in minimum space".

5 .We can customize disc spring as per customer's requirements.please provide the following details.
