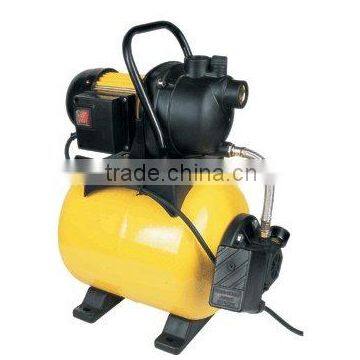

Automatic Booster Pump With Iron Tank
US$ 48.5 - 55.6
/ Piece
50 Pieces(Min. Order)
- NINGBO
- T/T L/C
You May Like
-
250W Smaller Clean Water Submersible Pump
-
electric drainage submersible pump for clean water
-
115V Automatic Electric Clean Water Submersible Sump Pump Irrigating Garden
-
New Type Submersible Clean Water Pump For Garden Irrgation
-
TUV CE/GS Electric Sewage Centrifugal Submersible Pump With Integrated Float Switch
-
2017 China New Plastic Submersible Electric Clean Water Pump
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TRUPOW | |
| Model Number | TP03101~TP03104 | Theory | Jet Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, Electric | Pressure | High Pressure | |
| Application | Other, Gardening |
Product Description
Specifications
Automatic Booster Pump With Iron Tank, is suitable for water lifting and distribution in domestic fitting and little irrigationsAutomatic Booster Pump With Iron Tank
Operating Limits:
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
-Fluid temperature up to 35°C
-Maximum ambient temperature 40°C
Material:
-Motor shaft: 45# Carbon steel
-Impeller: PP
-Pump head: PP
-Pressure tank: Iron
Application:
-Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Booster system with pressure tank.
-They are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
-They are very silent and reliable and particularly Suitable to increase pressure from a water system, to supply water from wells and in domestic high pressure groups.
Techncial Data:
MODEL | POWER (W) | MAX HEAD (M) | MAX FLOW (L/H) | MAX SUC. DEPTH (M) | MAX PRE. (BAR) | CABLE AND LENGTH (M) | QTY/20”CTN (PC) |
TP03101 | 600 | 35 | 2800 | 7 | 2/3 | H07RN-F3G1.0mm2X1.2m | 380 |
TP03102 | 800 | 40 | 3200 | 8 | 2/3 | H07RN-F3G1.0mm2X1.2m | 380 |
TP03103 | 1000 | 44 | 3500 | 8 | 2/3 | H07RN-F3G1.0mm2X1.2m | 380 |
TP03104 | 1200 | 50 | 3800 | 8 | 2.5/4 | H07RN-F3G1.0mm2X1.2m | 380 |
