Split aluminum alloy solar water heater frame parts

Specifications

Solar water heater frame

Material of Model:

1.the heater pipe is made of red copper TU1+water,transfer power>150w,working pressure:4MPa,welding pressure:4MPa

2.vacuum tube :tri-element,high boron and silicon content3.3,structure:gradual change SS-AL-Nx/Cu selective absorption coating;life:15 year

3.frame:aluminum alloy,thickness:2.0mm

4.water tank:color steel plate thickness:0.5mm outertank,and inner tank stainless steel 304-2B,thainless 1.5mm,normal working pressure:6 bar

station:circulation pump RS-15/6wilo,controller,expansion tank(italy)

6.the insulating layer uses polyurethane bulk bubble and has a good effect of temperature preservation

   Model:  tank capacity: 150L,200L,250L,300L,400L,500L,600L,700L,800L............

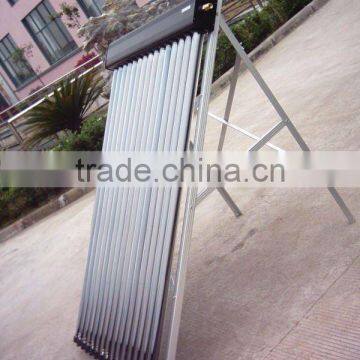

solar water collector

1)      Reliable, efficient, twin-glass evacuated tubes

2)      Red copper(TU1) heat pipes for rapid heat transferring

3)      High efficiency - long term performance

4)      Light-weight - easy to transport

5)      Attractive design, standard frame suitable for pitched roof or flat roof

6)      Reliability and long life

7)      Significant advantages over flat plate

8)      Easy plug-in installation

9)      Suitable for mains pressure water

10)   Corrosion resistant

11)   Can be connected with the existing heating device

12)   Protecting the environment and reducing your fuel cost

13)   Domestic and commercial use,  solar collector is ideal for both domestic and commercial use, and is scalable to your exact needs. This allows us to be highly competitive.

NOTE:

1.above prices are based on FOB shanghai

2.warranty:5 years for the whole system,10 years for vacuum tubes

3.module design,arbitrary combination,harmonize with the building perfectly

4.intelligent control and automatic operation

at anytime and enjoyable

6.multifunction:bathing,washing,domestic heating,swimming pool, heater floor...

7.anti-freeze:using the anti-freezing liquid as the medium and the controller has anti-freezing function
