Home > Products > Outboard motor > Copy Four-stroke Outboard motor boats 5hp ,6hp,4hp

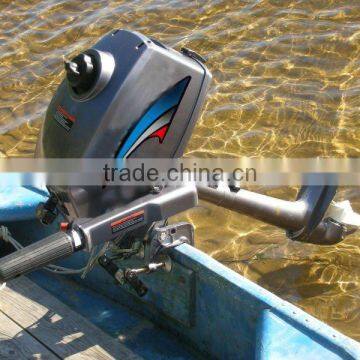

Copy Four-stroke Outboard motor boats 5hp ,6hp,4hp
Negotiable
/ Set
3 Sets(Min. Order)
- Shanghai Ningbo port
You May Like
-
Import and wholesale Outboard motors sample set 5hp,9.9hp,15hp,40hp,60hp
-
New design Outboard motors jet long shaft 5HP,6HP,9.9HP,15HP
-
Small evinrude Outboard motor boats 9.9HP 60hp
-
Two stroke Tohatsu Outboard motors long shaft 9.9HP,15HP,60hp
-
Mariner Outboard motors 2hp /2.6hp/3.5hp/4hp/5hp
-
Two stroke Outboard motors for japan sale 30hp,40hp,60hp
Product Details
| Condition | New | Engine | 4 Stroke | |
| Fuel Type | Gasoline | |||
| Cylinders | 1 | Engine Position | Outboard | |
| Dimensions (L x W x H) (mm) | 103*50.5*43 |
Product Description
Specifications
Outboard motor,1.the MOQ have 5 sets
2.have short shaft,long shaft stroke ,4 stroke
3.have 1 year for the out board motor.
Outboard motor,
| MODEl(4 stroke) | F2.5BMS | F4BMS | F5BMS | F6BMS | F9.9BMS | F9.9BML | F15BMS | F15BML |
| H.P. | 2.5HP | 4HP | 5HP | 6HP | 9.9HP | 15HP | 9.9HP | 15HP |
| (mm/in)OVERALL LENGTH | 623(25.4) | 680(26.8) | 680(26.8) | 680(26.8) | 700(27.6) | 873(34.4) | 700(27.6) | 873(34.4) |
| (mm/in)OVERALL WIDTH | 345(13.6) | 325(15.8) | 325(15.8) | 325(15.8) | 310(12.2) | 330(13.0) | 310(12.2) | 330(13.0) |
| (mm/in)OVERALL HEIGH | 1021(40.2) | 1073(42.2) | 1073(42.2) | 1073(42.2) | 1007(39.6) | 1167(45.9) | 1007(39.6) | 1167(45.9) |
| (mm/in)TRANSOM HEIGH | 432(17.0) | 435(17.1) | 435(17.1) | 435(17.1) | 381(15.3) | 567(22.3) | 381(15.3) | 567(22.3) |
| ENGINE TYPE | 4 stroke | 4 stroke | 4 stroke | 4 stroke | 4 stroke | 4 stroke | 4 stroke | 4 stroke |
| DISPLACEMENT(cc) | 72 | 123 | 123 | 123 | 323 | 323 | 323 | 323 |
| BORE*STROKE(mm) | 54*31.5 | 59*45 | 59*45 | 59*45 | 59*59 | 59*59 | 59*59 | 59*59 |
| MAX. OUTPUT(hp/kw) | 1.8(2.5) | 2.9(4) | 3.7(5) | 4.4(6) | 7.3(9.9) | 11(15) | 7.3(9.9) | 11(15) |
| RPM | 5250-5750 | 4500-5500 | 5000-6000 | 5000-6000 | 4500-5500 | 4500-5500 | 4500-5500 | 4500-5500 |
| STARTING SYSTEM | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL |
| IDLING SPEED(IN NEUTRAL) | 1800-2000 | 1500-1600 | 1500-1600 | 1500-1600 | 900-1000 | 900-1000 | 900-1000 | 900-1000 |
| TRIM METHOD | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL | MANUAL |
| IGNITION SYSTEM | TCI | TCI | TCI | TCI | CDI | CDI | CDI | CDI |
| CONTROL SYSTEM | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER | TILLER |
| GEAR POSITIONS | Forward-neutral | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse | Forward-neutral-reverse |
| PROPELLER(in) | 3*7 1/4*6" | 3*7 4/5"*8" | 3*7 4/5"*8" | 3*7 4/5"*8" | 3*9 1/4"*11" | 3*9 1/4"*11" | 3*9 1/4"*11" | 3*9 1/4"*11" |
| Integral fuel tank capacity(L) | 1 | 1.1 | 1.1 | 1.1 | ||||
| Separate fuel tank capacity(L) | 12 | 12 | 12 | 24 | 24 | 24 | 24 | |
| WEIGHT(KG) | 17 | 25 | 25 | 25 | 45 | 47 | 45 | 47 |
| ENGINE OIL CAPACITY | 0.35 | 0.45 | 0.45 | 0.45 | 1 | 1 | 1 | 1 |
| PACKED CASE SIZE(cm) | 103*50.5*43 | 112.5*62.5*38.5 | 112.5*62.5*38.5 | 112.5*62.5*38.5 | 134.5*80*51 | 134.5*80*51 | 134.5*80*51 | 134.5*80*51 |
| CONTAINER LOADING20/40/40HQ) | 100/210 | 65/140 | 65/140 | 60/135 | 33/66/88 | 33/66/88 | 33/66/88 | 33/66/88 |
