Home > Products > Construction Machine Spare Parts > WANBO 1~35 tonne Electricl Trolley Chain Hoist - 1t Electric Hoist
WANBO 1~35 tonne Electricl Trolley Chain Hoist - 1t Electric Hoist
USD $2,000 - $3,000
/ Set
1 Set(Min.Order)
- 2000 Set / Sets per Month
- Main Port of China
- T/T
You May Like
-
Price SANY Concrete Pump Spare Parts / Sany S Pipe C12037II.3.4.1
-
WANBO 1ton to 35ton Trolley Hoist 1t Electric Hoist
-
WD615 Series WEICHAI Engine for Heavy Truck
-
LIUGONG Machine Spare Parts - Loader, Excavator, Roller, Grader, Bulldozer, Forklift, Mixer, Pump, Truck - Liugong Parts
-
SHANTUI bulldozer, pile layer, loader, grader, roller, excavotor, mixer, forklift - Shantui Spare Parts
-
Side-Tipping Dump Truck Side Tipping Hydraulic Cylinder
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | WANBO | Model Number | WBH-01001S | |
| Usage | Construction Hoist | Power Source | Electric | |
| Sling Type | Chain | Maximum Lifting Weight | 1t | |
| Maximum Lifting Height | 3m | Lift Speed | 6.9/2.3m/min | |
| Certification | CCC,ISO, SGS, CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1t Electric HoistWANBO 1ton to 35ton Trolley Hoist
Light,compact,durable electric hoist
1ton Trolley Hoist
ISO,CE,SGS
1t Electric Hoist
WANBO - CE Certiicate - 1.0~35.0 Tonne Capacity - CCC, ISO, CE, SGS
TECHNICAL PARAMETERS
| Type | WBH-00501S | WBH-01001S | WBH-01501S | WBH-02001S | WBH-02501S | WBH-03001S | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m) | 6.9/2.3 | 6.9/2.3 | 8.9/2.9 | 6.8/2.3 | 5.4/1.8 | 5.4/1.8 | |
| Lifting Motor | Power(kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Rotation Speed(r/min) | 2890/980 | ||||||
| Phases | 3 | ||||||
| Voltage(v) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Operating Motor | Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 |
| Rotation Speed(r/min) | 1440 | ||||||
| Operating Speed(m/min) | 11/21 | ||||||
| Phases | 3 | ||||||
| Voltage(V) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Chain Turns | 1 | ||||||
| Chain Specification | Ø6.3 | Ø7.1 | Ø10.0 | Ø10.0 | Ø11.2 | Ø11.2 | |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 3.75 | |
| Weight(kg) | 47 | 61 | 108 | 115 | 116 | 122 | |
| I-Beam(mm) | 58-153 | 58-153 | 82-178 | 82-178 | 100-178 | 100-178 | |
| Weight Added with 1m Higher(kg) | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 2.8 | |

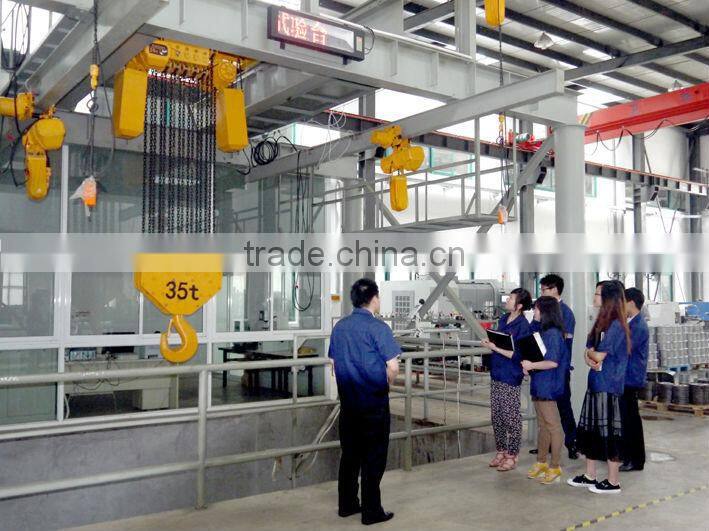

FACTORY QUICK-VIEW
PRODUCT DRAWINGS
TESTING-AREA PERFORMANCE
READY-FOR-DELIVERY
