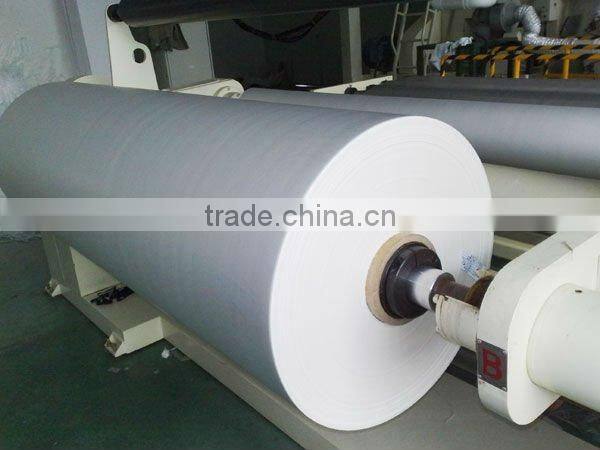

Good Quality Double Side Lamination Film

  Description of BOPP Thermal Lamination Film

Item specifications (gloss/matte):
1) Thickness (um):
a) BOPP: 12, 12, 15, 15, 18
b) EVA:5,7, 8, 13, 12,  8, 12
c) Total:17,19, 20, 25, 27, 23; 30
2) Thickness tolerance: ±1.5um
3) Width: 200mm - 1,000mm (±5mm)
4) Length: 100m, 200m, 300m, 400m (±3%)
5) Paper core (inner dia.): 1"
6) Connector: ≤1
7) Corona treatment side: A/B (both sides)
8) Surface tension (after corona): BOPP side≥38 dyne, EVA side≥52 dyne
9) Resistance: g/25mm 560, 580, 620, 630, 580, 680

Applications:

1) coating on books and magazines, catalogs, pictures, promotional materials; non-drying adhesive, paper bag, clothes lag,

2) Blueprint document, outdoor advertisement, spray paintings, post, digital print

3) Wedding photograph, photo album

4) outside coating for wrapping box for food, medicine, cosmetic, gift, liquor, etc

Process parameter:

1) Equipment for laminating film: dry and wet laminating film machine

2) Temperature: normal: 85~100°C; special: 100~110°C

3) Roller pressure: 8~15MPa

4) Speed: 8~25m/min

5) Remarks: special laminations are those with thicker ink, solid color, high moisture content and bigger size paper

Packing:

        Rolling package(Upside and downside round plastic cover, outside board); Paper box (export specification), in pallet individual corrugated boxes, with core plugs both sides and foam or bubble wrap on the roll.

Storage:

        The product should be stored in a dry, well ventilated warehouse. To avoid direct sunlight, the product should not be stored in the open air.

Safety Precautions

    1. Be away from fire and heat sources.

    2. Should not be stored or transported together with chemicals and inflammables.

    3. Warehouse must be equipped with extinguishers or fire-fighting device
