CNC Spindle Wood Core Veneer Peeling and Cutting Machine for Plywood Factory
- Qingdao port
- T/T Credit Card
You May Like
-
No Spindle Veneer Making Machine / Spindle Less Rotary Cutting Machine
-
Spindleless Veneer Peeling and Cutting Lathe / Wood Veneer Making Machine
-
Natural Veneer Peeling Machine / Rotary Veneer Cutting Machine / Timber Peeling Machine
-
4*8ft Plywood Veneer Hot Press Drying Machine / Woodworking Machinery in Linyi
-
Veneer Peeling Machine / Veneer Peeling Lathe / Veneer Peeling Line
-
Veneer Stitching Machine / Automatic Veneer Stitching Machine / Zigzag Veneer Stitching Machine
Product Details
| Condition | New | Type | Other, wood rotary peeling machine | |
| Place of Origin | Shandong, China | Brand Name | RUIHAO,HUIXIN | |
| Model Number | LXQ260 | Voltage | 380V | |
| Power(W) | 35.5kw | Dimension(L*W*H) | 5800*2200*2720 mm | |
| Weight | 7.2ton | Certification | CE ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CNC spindle wood core veneer peeling and cutting machine for plywood factory
CNC spindle wood core veneer peeling and cutting machine for plywood factory
Mainly features:
1 manufacturer.
2 Peeling diameter 1500 mm.
3 Peeling length 2600 mm.
4 Veneer thickness 0.3-2.0mm
We are a professional manufacturer and exporter for veneer production line in China for 26 years.
We are a professional team.

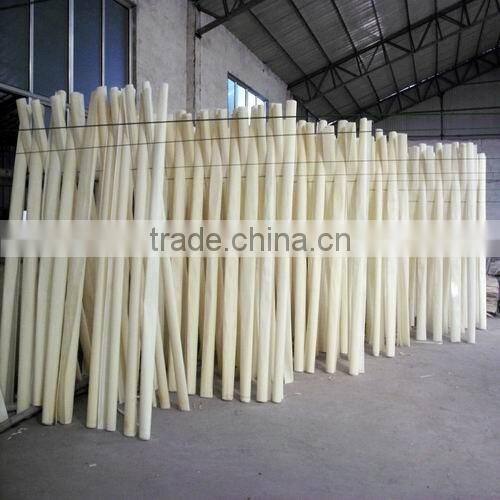

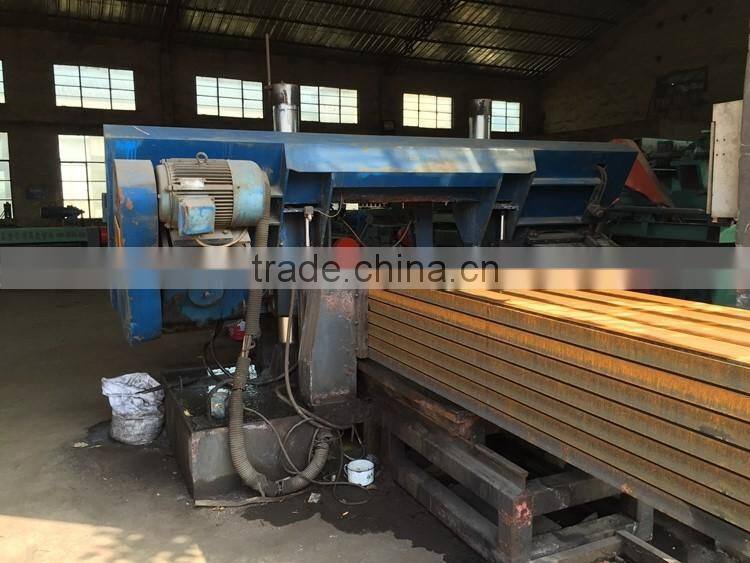

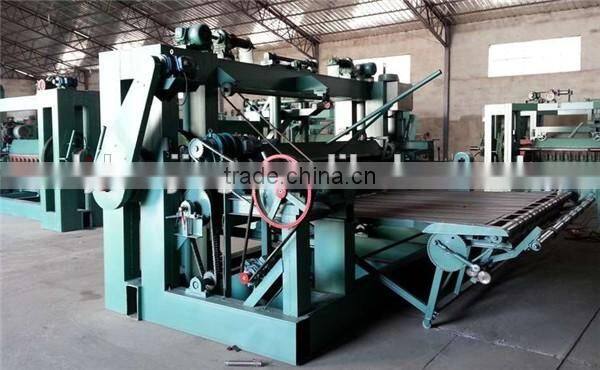

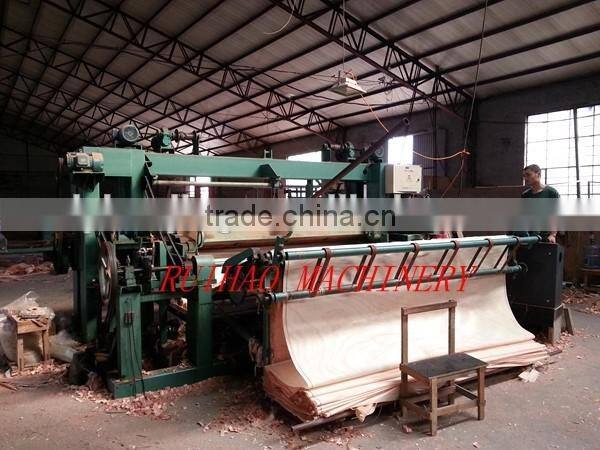

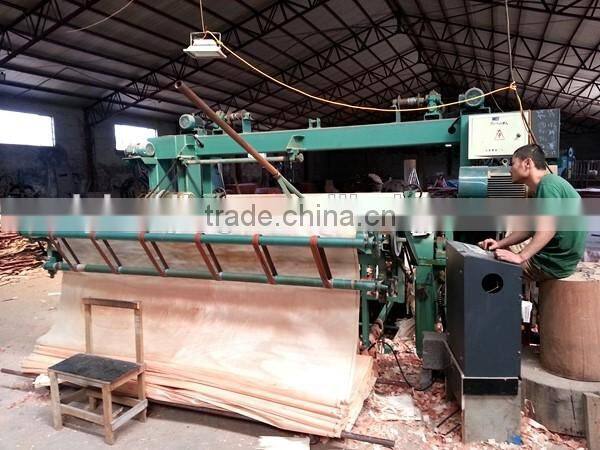

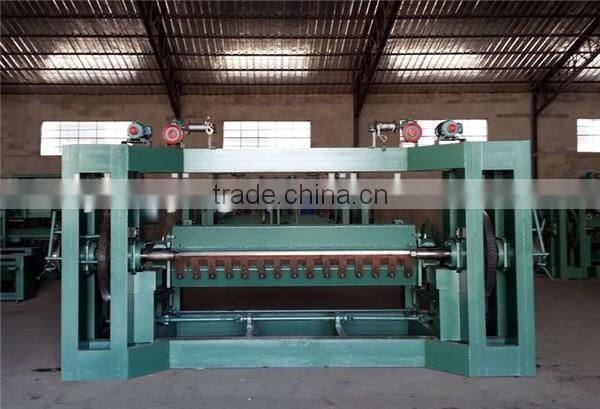

Photos of CNC spindle wood core veneer peeling and cutting machine for plywood factory
CNC spindle wood core veneer peeling and cutting machine for plywood factory technical specifications:
Model | LXQ260 |
Log dimension processing (D*L) | 1500*2700 mm |
Veneer thickness range | 0.3-2.0 mm |
The smallest diameter core | 150 mm |
Total motor | 35.5kw, 380V-50Hz 3phase |
Chief motor | 30kw, 380V-50Hz 3phase |
Reference output | 25m3/day |
Spindle peeling lathe dimension | 5800*2200*2720 mm |
Spindle peeling lathe weight | 7.2ton |
Clipper Max. working width | 2650mm |
Max. travel of shears | 55mm |
Max. number of shearing | 30t/min |
The thickness of clipping veneer | 0.3-2.0mm |
Feeding speed | 0-40m/min |
Motor power of inlet conveyor | 1.1kw, 1.5kw, 380V-50Hz, 3phase |
Electrical veneer clipper dimension | 3200*1700*1000mm |
Electrical veneer clipper weight | 1.2ton |
CNC spindle wood core veneer peeling and cutting machine for plywood factory Usually packing in nude.
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air
tickets, foods, accommodation and service fee. The services include fixing, debugging, operating,
maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer
should pay for the round-trip air tickets. The seller arrange for food and accommodation. The
services include fixing, debugging, operating, maintaining.
Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line
manufacturer for 26 years. Our main product is including: wood debarking machine, wood rotary
peeling and cutting machine, veneer drying machine, veneer core building machine, knife grinding
machine and accessories for woodworking machinery.
We are famous for competitive price, best service, high quality and timely delivery. Warmly
welcome customers home and aboard to cooperate with us in business!
CNC spindle wood core veneer peeling and cutting machine for plywood factory
Payment Terms: By T/T. 30% payment in advance, the balance should be paid before shipment.
Delivery Time: Within 15 working days after advance.
Validity: Within 30 days after the date.
Guaranty for 12 months.
We supply whole wood veneer production line machinery, for more information,
please feel free to contact with me! You will receive quick response !
My name is Gary Gu, please contact me at any time. My call +86 13665395656
