Linyi Market Straight Knife Grinding Machine in Plywood Factory
- Qingdao port
- T/T
You May Like
-
Hydraulic Wood Log Debarking and Rounding Machine / Wood Round Making Machine
-
8 Feet Wood Log Debarker for Log Rounding Machine
-
Hydraulic Log Debarker / 1300 mm Wood Log Debarker For 500mm Diameter
-
Non Spindle Wood Veneer Rotary Peeling and Cutting Machine for Plywood
-
Hydraulic Lifter Machine -3ton Capacity Hydraulic Upright Scissor Lifter
-
Plywood Core Veneer Composer Jointing Machine for Plywood Industry
Product Details
| Condition | New | Type | Other, knife grinder | |
| Place of Origin | Shandong, China | Brand Name | HUIXIN | |
| Model Number | YM3000 | Voltage | 380V, 50HZ | |
| Power(W) | 5.3KW | Dimension(L*W*H) | 5300*1300*1400mm | |
| Weight | 2900kg | Certification | CE ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Linyi market Straight Knife grinding machine in plywood factory
Linyi market Straight Knife grinding machine in plywood factory
Knife grinder is used for sharpening the straight knife, like planer knives, slicer knives, cutting knives, peeling machine.
The working table is of electromagnetic chunk with strong magnetic power and lower power consumption.
The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
Option parts: Design and assemble according to customers is available. (Servomotor, Professional grinding head,
Inverter, Magnetic separator) .
Max. 8000mm in length for magnetic chunk, Max. 300mm in width and 30kw spindle motor power is the maximum for
us.
The technicial specifications of Linyi market Straight Knife grinding machine in plywood factory
Model | YM1500 | YM3000 | YM3500 |
Max. grinding length | 1500mm | 3000mm | 3500mm |
Working-table width | 180mm | 180mm | 200mm |
Grinding head motor | 4kw, 380V-50Hz | 4kw, 380V-50Hz | 4kw, 380V-50Hz |
Walking motor | 0.75kw, 380V-50Hz | 0.75kw, 380V-50Hz | 0.75kw , 380V-50Hz |
Lifting motor | 0.55kw, 380V-50Hz | 0.55kw, 380V-50Hz | 0.55kw, 380V-50Hz |
Wheel rotation rate | 1400r/minute | 1400r/minute | 1400r/minute |
Linear speed for grinding wheel | 17m/minute | 17m/minute | 17m/minute |
Speed of sliding plate | Variable speed | Variable speed | Variable speed |
Tilting range for working-table | ±90° | ±90° | ±90° |
Grinding wheel form | Cup | Cup | Cup |
Grinding wheel dimension | Φ200*110*32mm | Φ200*110*32mm | Φ200*110*32mm |
Overall dimension | 3500*1200*1200mm | 5300*1300*1400mm | 5800*1300*1400mm |
Weight | 1600kg | 2900kg | 3200kg |
Remark: When the machine is improved, the appearance and the indexes should be standardized according to the physical goods.

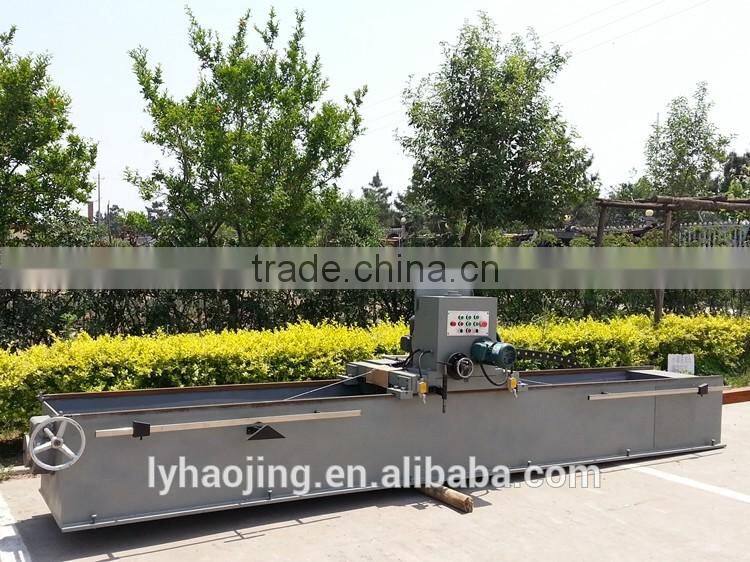

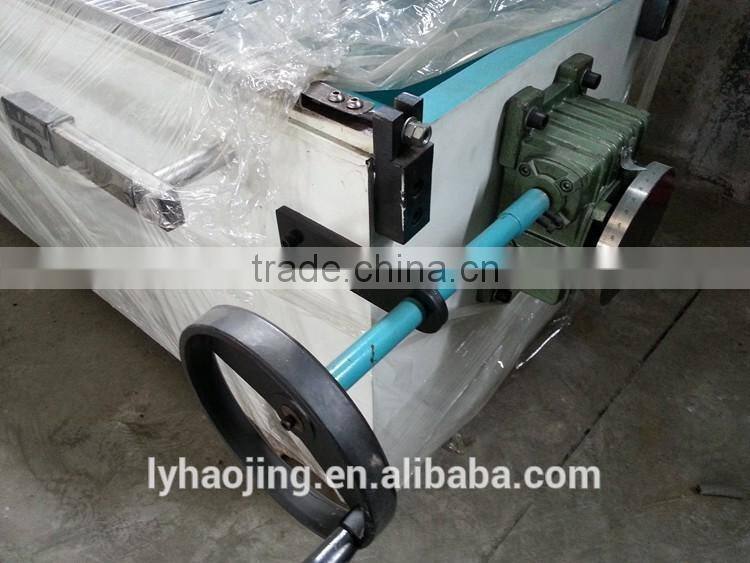

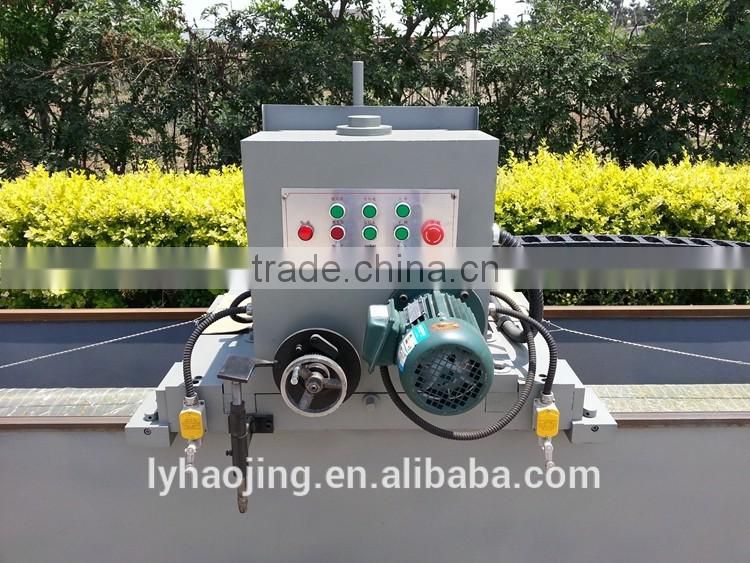

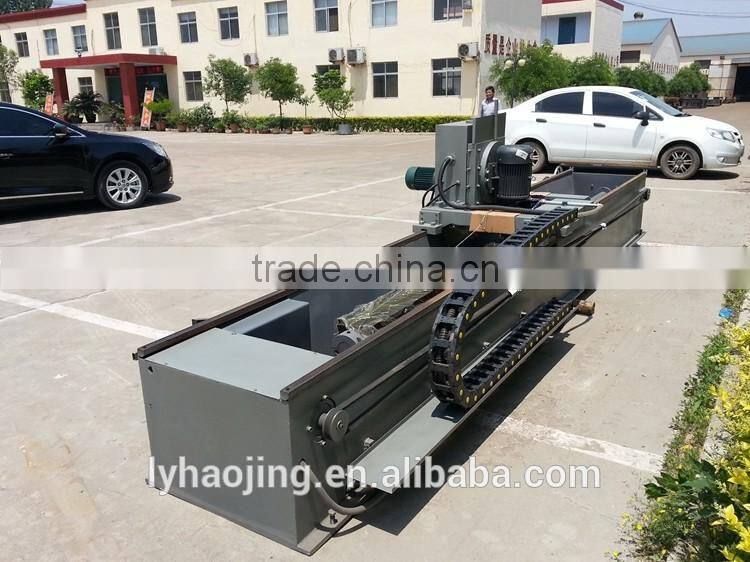

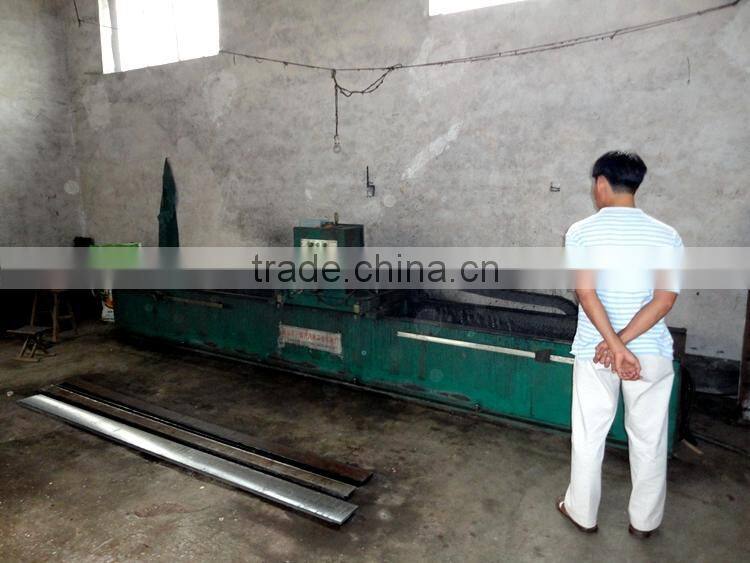

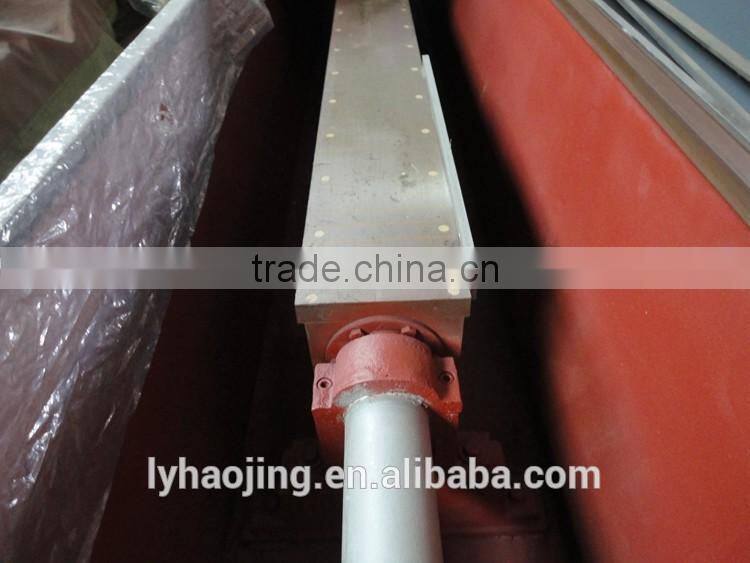

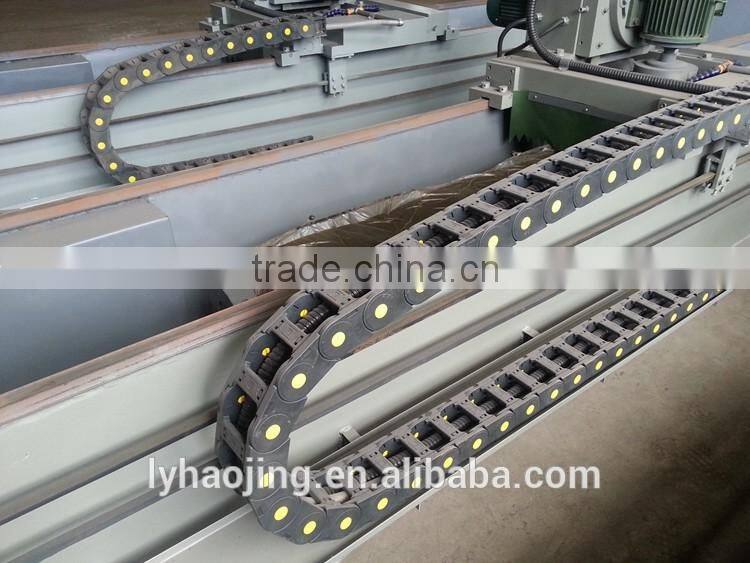

The photos of Linyi market Straight Knife grinding machine in plywood factory

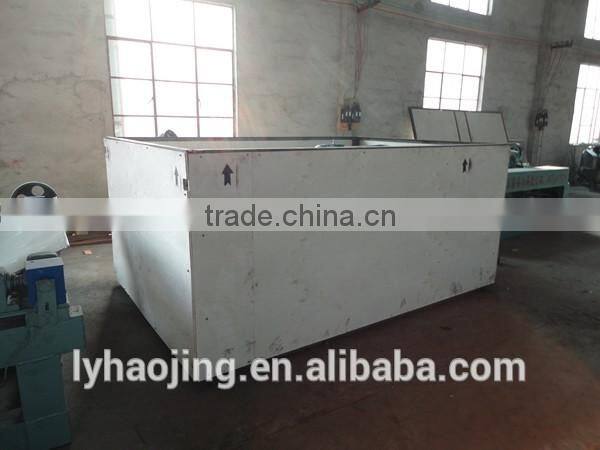

Linyi market Straight Knife grinding machine in plywood factory usually packed by standard export box or as your requirement or in nude with shrink film, one set machine could load into one 20ft container.
Linyi market Straight Knife grinding machine in plywood factory
After sales service:
I. Short time abroad service: 3-10 days, one person. The buyer should pay the round-trip air tickets, foods,
accommodation and service fee. The services include fixing, debugging, operating, maintaining and workers’ training.
II. The buyer sends workers to seller’s factory for study: 3-10 days, one person. The buyer should pay for the
round-trip air tickets. The seller arrange for food and accommodation. The services include fixing, debugging,
operating, maintaining.

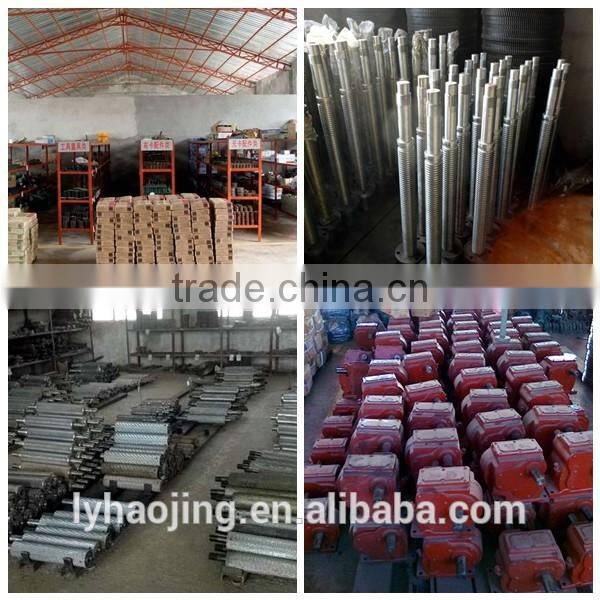

Feixian Ruihao Machinery is a key enterprise as a professional wood veneer production line manufacturer for 26 years. Our main product is including: wood debarking machine, wood rotary peeling and cutting machine, veneer
drying machine, veneer core building machine, knife grinding machine and accessories for woodworking machinery.
We are famous for competitive price, best service, high quality and timely delivery. Warmly welcome customers home and aboard to cooperate with us in business!
Linyi market Straight Knife grinding machine in plywood factory
Remark:
1. Payment Terms: By T/T. 30% down payment, the balance to be paid before shipment.
2. Delivery Time: Within 15 days after advance.
3. Guarantee: Machines running in under normal correct controlling situation, all machines have 12 months warranty.
4. When the product is improved, the appearance and the indexes should be standardized according to the physical
goods.

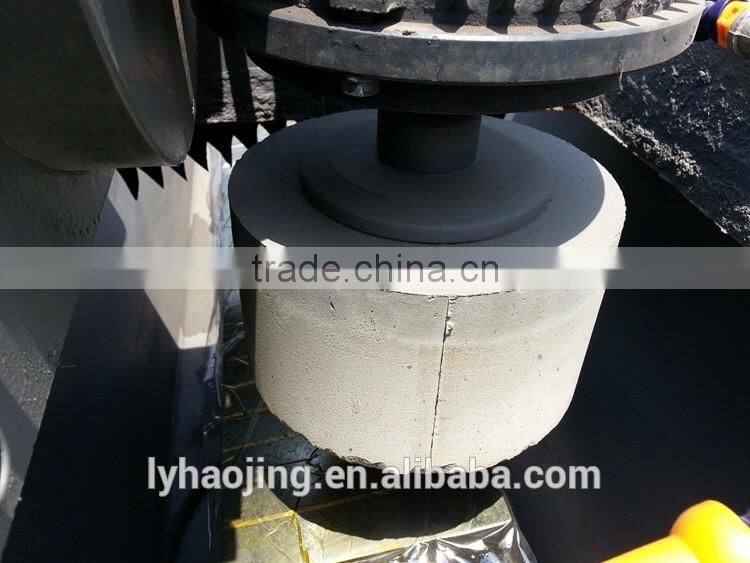

5. One grinding wheel can grinder about 100 sequence of the knife. For soft wood you can grinder the knife every 3
months. And for the hard wood you must grinder the knife every one week. So you need 12pcs grinding wheel per year.
If you have any other questions, please send us your inquiry, we will contact with you as soon as possible!!!
Mr. Gary Gu
Machinery Department
Linyi City Haojing Trading Co., Ltd
Taoran Road, Lanshan District, Linyi City, Shandong, China
Mobile: +86-13665395656 (Wechat & Whatsapp)
http://www.chinahaojing.cn/
http://lyhaojing.en.china.cn/
