Drainage Plate China
- qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | starring | |
| Model Number | drainage cell |
Product Description
Specifications
Drainage plate chinaLess mainteness
330x330x30mm 500x500x30mm
Combined with Geotextile 4 protect

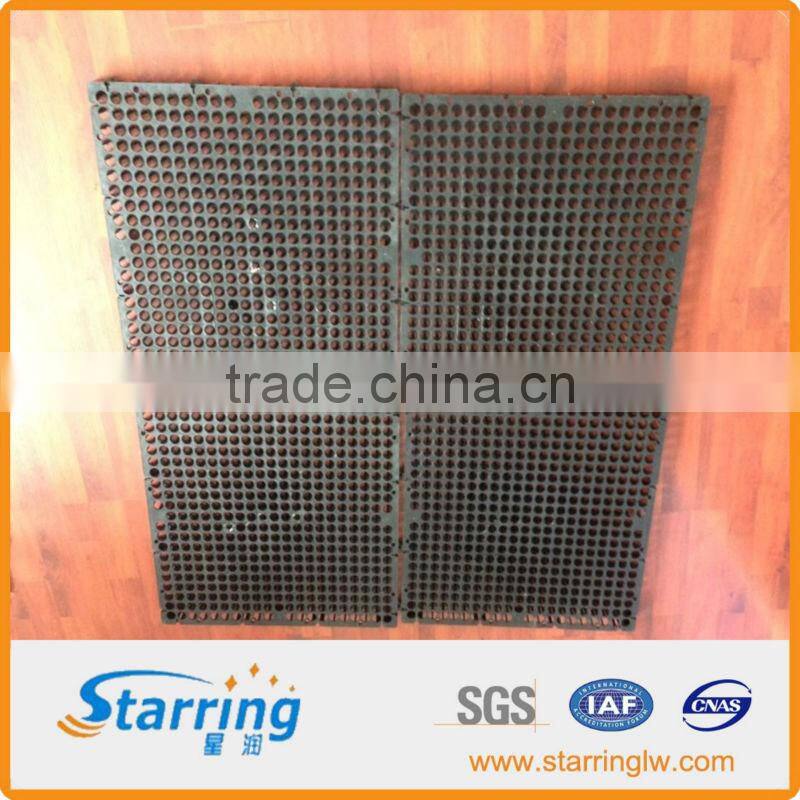

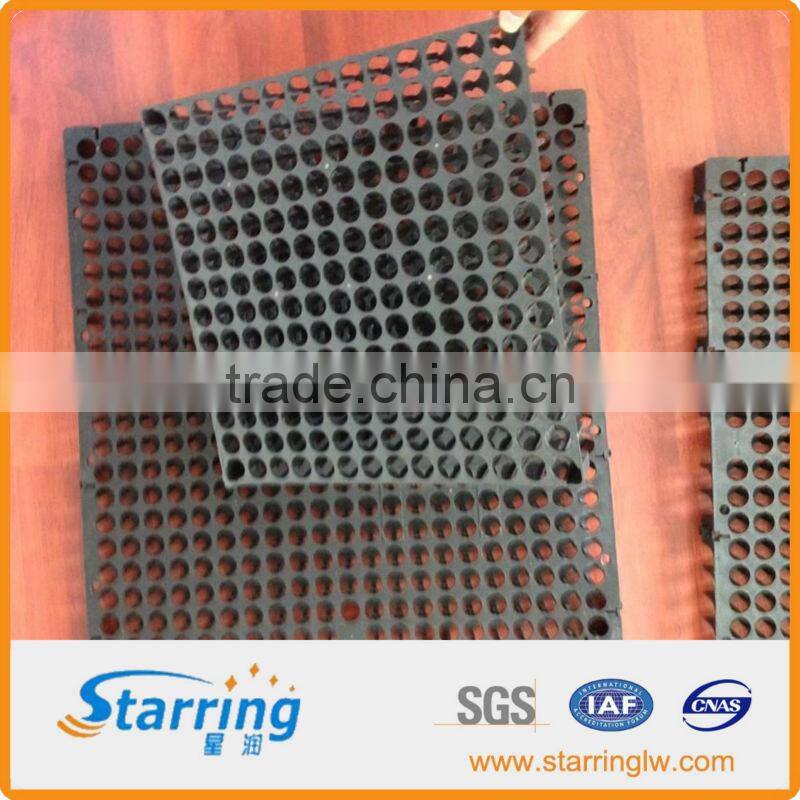

Drainage plate china
Drainage plate china Description:
Drainage plate china is a narrow profile, high strength, lightweight interlocking plastic drainage cell. The modules are 30mm high and are ideal where narrow drainage profiles are critical. It protects waterproofing membranes and creats a thermal insulation barrier.
Drainage plate china is moulded into a unique profile and then wrapped in a filtration geotextile which then provides a complete void space for the water to travel horizontally without any obstruction. Its lightweight, high compressive strength makes the product ideal for roof gardens & podium landscaping, retaining walls, sports fields & golf courses, under drains for slabs and foundations and subsurface drainage for permeable driveways and car parks.
Drainage plate china Application:
• Roof gardens
• Balcony landscape applications
• Retaining wall drainage
• Sport fields and golf courses
• Under drains for floor slabs and foundations
• Gas collection layers
• Subsurface drainage for permeable driveways and car parks
Drainage plate china Laying step:
Products Name: | Drainage plate china |
Item No: | ST-W-H30 |
Size: | 330*330*30mm 550x550x30mm |
Material: | HDPE(high density polyethylene)and Polypropylene |
Thickness: | 30MM |
Tensile loading: | >1000kpa |
Drain capacity: | 25----30cm³/s |
Storing capacity | 2.6----4.0l/m2 |
Surface Void Area : | >67% |
Internal Void Area | >95% |
Biological/Chemical Resistance | Unaffected by moulds and algae and good resistance to oils ,acids ,alkalis and bitumen |
Service Temperature | -20°C to 120°C |
