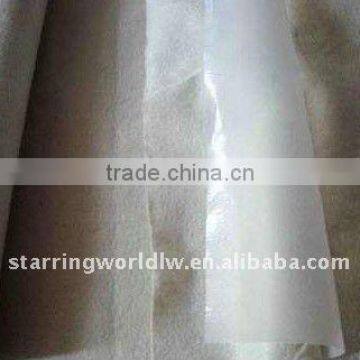

Short Fiber Composite HDPE Geomembrane Liner

FOB Price

Negotiable / Square Meter

10 Square Meters(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Starring
Material	HDPE

Product Description

Specifications

Short Fiber Composite HDPE Geomembrane Liner
1.High strength ,high tensile strength
2.Safe and easy for construction

Short Fiber Composite HDPE Geomembrane Liner

Product Description

Compound geomembrane is a nonwoven complex geomembrane, using non woven geotextile as the base,and polyethylene (PE),PVC membrane, etc. as membrane materials. The product is formed after the processes of calendering, spreading and rol

Product Specification

1.One piece of geotextile and one piece of membrane:Weight of base geotextile:100-1000g/m2;Thickness of geomembrane :0.1-1.5mm

2.Two pieces of geotextile and one piece of membrane:Weight of base geotextile:80-600g/m2;Thickness of geomembrane: 0.2-1.5mm

3.One piece of geotextile and two pieces of geomembrane:Weight of base geotextile :100-1000g/m2;Thickness of geomembrane :0.1-0.8mm

4.Multi-layers:Weight of base geotextile :100-1000g/m2; Thickness of geomembrane :0.1-0.8mm

Application range

Widely used in dam ,traffic tunnel,road,airport ,drainage, housing,environmental protection and many other fields for waterproof protection,reinforcement,etc.

Technical Specification of Compound Geomembrane

Item		Value
Nominal Breaking Strength(KN/M)		5	7.5	10	12	14	16	18	20
1	Breaking Strength(MD/CD)/(KN/m)	5.0	7.5	10	12	14	16	18	20
2	Breaking Elongation(MD/CD)/1%	30-100
3	CBR Mullen Burst Strength≥	1.1	1.5	1.9	2.2	2.5	2.8	3.0	3.2
4	Tear Strength(MD/CD)/(KN/m)≥	0.15	0.25	0.32	0.40	0.48	0.56	0.62	0.70
5	Hydraulic Pressure /MPA	As table 2
6	Peel Strength/(N/cm)	6
7	Vertical Permeability Coefficient/(CM/S)	According to request
8	Width Variation/%	-1.0

Table2

Thickness of membrane
mm

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Note

One textile one membrane mm

0.4

0.5

0.6

0.8

1.0

1.2

1.4

Two textile one membrane mm

0.5

0.6

0.8

10.

1.2

1.4

1.6

Note:The above table is referring to GB/T17639-2008,GB/T17642-2008 Standard.

(Special sizes are available at customer’s request)
