Ir9 off Road 4wd I Suzu RODEO/CAMPO R9 Car Snorkel 4 jb Diesel

The misunderstood attributes of a snorkel...

Your combustion engine needs two things to take you off-road: fuel and clean air full of oxygen.
Gathering clean air on those off-road tracks, is rather difficult with the traditional air intakes.
Dust, heat and even water can lower the quality of the air as they lower its density in precious oxygen.

... Revealed !

Our snorkels are designed to take the air on the top of your vehicle where it is clean and cold resulting in improve torque and power as well as more fuel efficiency.
Science has clear answers! Tests involving dynamo-meter and powerful air-fan has been taken on 4x4 equipped with a snorkel.

When using the snorkel:

power and torque of your engine improved below 95 km/h.

fuel efficiency increased by 8% when towing and carrying heavy load on long distances.

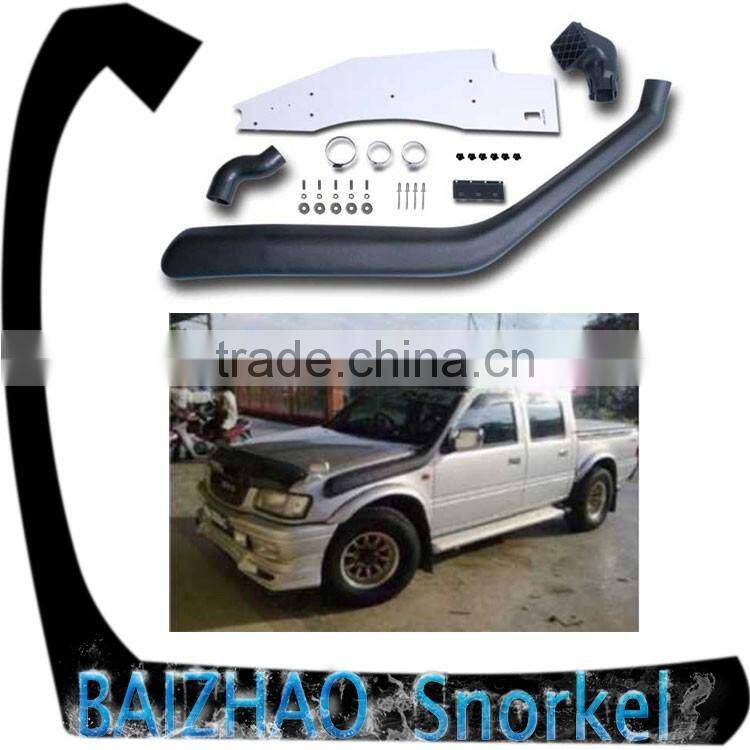

I suzu RODEO/CAMPO R9 accessories-4wd Snorkel Diesel Car Snorkel

Item Code: BB-IR9

Material: LLDPE

Color: Black

Placement of Snorkel: Left Side

Packing Size: 153*44*16cm

Car Model: I suzu RODEO/CAMPO R9 accessories-4wd Snorkel Diesel Car Snorkel

High Impact & UV Resistance

Improves Engine Combustion & Fuel Efficiency

Other Models: Ford, Isuze, Jeep, Land Rover, Mitsubishi, Nissan, Toyota, Mazda

I suzu RODEO/CAMPO R9 accessories-4wd Snorkel Diesel Car Snorkel

I suzu RODEO/CAMPO R9 accessories-4wd Snorkel Diesel Car Snorkel

Clean air is important to any vehicle engine and one can only imagine the conditions a 4WD air system would be subject to when driven off road. Harsh conditions such as driving deep through water crossings and driving on extremely dusty outback tracks will be detrimental to your engine without proper air filtration.
A snorkel is quite simply a raised air intake system and allows the vehicle to be completely submerged as long as the main intake is free of water. A snorkel is highly recommended if you intend to travel in the outback. Beside creek and river crossings, heavy rains or flooding can be a constant threat and roads could become underwater in considerably short periods of time.
Snorkels can protect the engine from dust because air that is drawn from the roof level does not have as much dust content as in the air lower to the ground. This results in a cooler and cleaner air intake, which will also prolong the life of the air filtration system.

Normal packing: Plastic wrapping packaging bag + 1 carton box/set

Delivery time: 10-15 days after reception of deposit

Express (door to door) DHL, UPS, TNT, EMS, FedEx,etc.
By Sea (please tell us the name of the destination Seaport)
By Air (please tell us the name of the destination Airport)

ONE YEAR WARRANTY  Terms & Conditions

1. Within the stated period of warranty from the date of purchase this appliance is proved to be defective by reason only of faulty design. workmanship or materials and not for any other reason whatsoever we undertake upon the following conditions to repair the same free of charge.

2. That if at any time during the warranty period any part or parts of this appliance is or are removed, altered, tampered, adjusted, modified, dismantled, repaired or handled in anyway whatsoever by any person or persons not authorized by us,this warranty shall immediately cease to be valid.

3. This warranty does not particularly cover damages,losses,defects and malfunctions caused and resulting from act of God,fire,civil unrest,accidents, misuse,improper installation,or any manner of tampering; usage of wrong electrical supply/voltage;usage not in accordance with the operation instruction booklets;normal wear and tear,corrosion rusting or stains; and we shall not under any obligation,legal or otherwise to repair this appliance if the same shall be required as a result of losses, damages and malfunctions arising from any of the causes mentioned in this paragraph.

About our snorkels

1. What are the main differences between snorkels on the market?
There are almost no technical differences between snorkels on the market except for price and looks. They are all designed to deliver air from roof level instead of traditional air intakes.
2. How should a snorkel be designed?

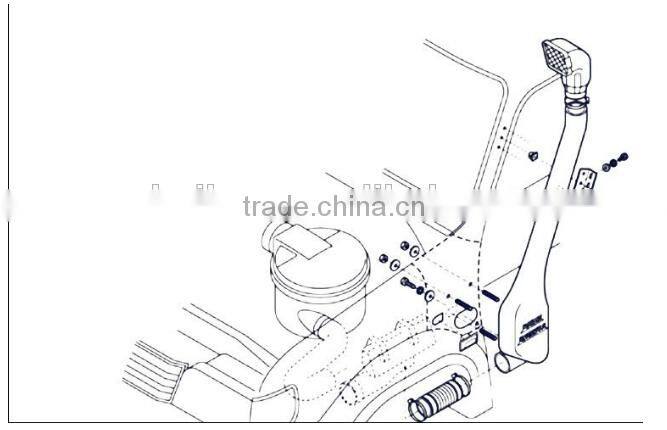

A tube that goes smoothly from the engine’s air intake through the flank of the vehicle and flows smoothly along the “A” pillar to reach roof level with a wide open air box at the end. This design concept is used throughout our entire product line.
3. What about the size?
The size of the snorkel should fit the requirements of the engine. This is why our products have different size according to the engine they are made to fit.
4. What about durability?
Our Snorkels are made from original and unused Polyethylene powder. It means that it has not been used before in any rotomolding process. It is not recommended to use recycled material as it can lower its durability of the snorkel. Recycled material are more incline to discolor, twist or crack at the surface.
5. What about reversing the air ram?

If you are driving during thick snowfall or crossing water, it is a good practice to reverse the side of your air ram. Firstly, thick snow can accumulate in your air ram and block the air stream. Secondly, while water crossing, large quantities of water could enter your snorkel at once and cause engine water-lock. In those cases, you should not drive above 25 km/h, as your engine will receive less air-flow.
6. How does the water separation system works?
In addition, of being completely sealed, our snorkel separate water from air. The hat of our snorkels are specially design so that the water that comes in will stream across the inner surface of the tube. The inner surface of the tube is equipped with a drainage system that will allow the water to evacuate the hat.

About order process

1. MOQ?

Our MOQ is 10 units. Booking around 400 units will optimize your shipping cost as it is the capacity of a 20ft container.
2. Can I buy different snorkel model in one container?
Of course, we can provide you the list of model we are capable of doing.
3. What car snorkel models can you provide?
We produce a full range of 4x4 snorkels: Toyota, Nissan, Volkswagen, Isuzu, Jeep, Mitsubishi, Land Rover, Ford. Please tell us about your car model and we will recommend the suitable snorkel sets.
4. Can I pay through Paypal?
Indeed you can, you will receive the link to our company Paypal account in your invoice.
5.What about your OEM service?
Custom service is an option for your special car, in that case please tell us about your car and we will design snorkel especially for it.

6. How can I order sample?

Simply notify us the quantity of samples you need, and we will tell you all about our sample policy.
