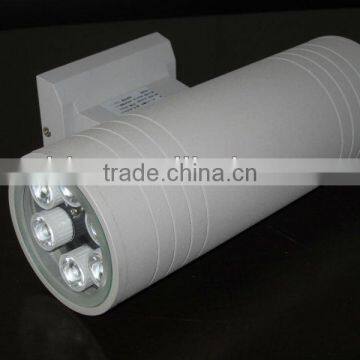

6W led outdoor wall light waterproof IP55 with die-cast aluminium

led wall washer light    high power led wall washer   waterproof led wall washer   led wall washer

Parameter:

Features:

1) Adopt high LED as light source. Energy-saving up to 80%, environment protection and long life time.

2) Using constant current to drive.

3) Low working voltage. Secure and reliable.

4) 5mm toughened transparent glass, high temperature resisting, easy for lights penetration, transmittance as high as 92%.

5) Color effects: shifting in seven colors. Color chasing, color fading, jump changing, gradual changing, running. 256 degree gray  scale funtion.

Waterproof treatment:

1) The single output connector XL-3R of the last fixture( Max. 30 fixtures) of each series must wrapped with waterproof tab(auto-adhesive, pls refer to instruction for operation). Thence sealed with a O20 thermal shrinking sleeve and blow and shrink it with a hair drier for waterproof purpose.

2) Warning: Neglect on action of the above treatment will to failure of waterpfoof and proper working of the lights.

Installation of supporting brackets:

Please screw the supporting bracket  to the bult-in fixing patch inside of the aluminum housing according to your requirement and location.

Applications:

Design for the lighitng purpose for highlighting building outline,using super bright power LED, it can shoot a long distance as customer's demand with 256 degree gray scale function, generating various changing-color effects. Able to play user's own programe steadily and flexibly.If connected to a DMX controller suitable for commercial locations, hotel, casino, subway and relative decorative lighting projects

.
