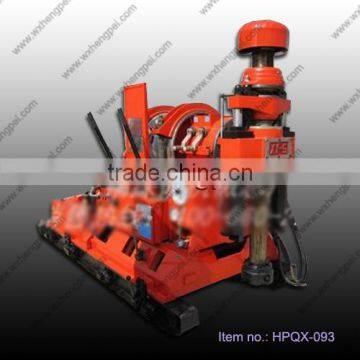

Portable water well drilling machine for sale XY-5

wooden box or export packing standard

Quick Details

• Condition: New
• Type: Core Drilling Rig
• Power Type: Diesel
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: XY-5
• Usage: Water Well
• Voltage: 380V
• Power(W): 59KW
• Dimension(L*W*H):3190*1495*2140mm
• Weight: 3500KG
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: XY-5
• Hole Depth: 1600m
• Feeding stroke: 500mm
• Max.Torque: 6150NM
• Max. Hoisting Force: 30KN
• Max .lifting capacity: 135KN
• Max .feeding capacity: 90KN
• power: 56kw
• Backward Stroke: 550mm
• Dimensions: 3190*1495*2140mm
• Product Description

1. XY-5 is a core drilling rig for deep hole. It not only apply to core drilling with carbide and diamond bits but also be used on areas such as engineering geological exploration, water well drilling as well as  foundation pile construction in large diameter.

2. With powerful drilling capacity, the rated drilling depth comes up to 1,300m with wire line 71mm drill rod. With large spindle I.D. 96mm, the rig is fed with hydraulic cylinders with longer stroke up to 500mm.

3. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed

Applications:

1. Core drilling with carbide and diamond bit .

2. Engineering geological exploration.

3. Water well drilling.

4. Basic pile foundation engineering in large diameter.

Specifications:
