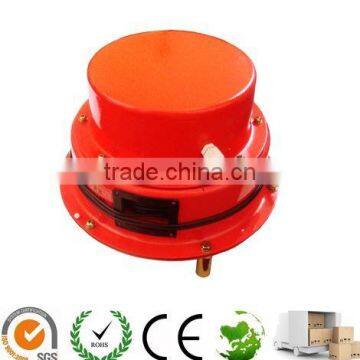

Cable reel for crane/ recoil drum/ cord reel LSX-25B

Crane cable reel/ cable drum/ recoil drum/ cord reel LSX-25B

General Description

Reel cord LSX series can be used on all types of equipment where the length and angle of the telescopic boom needs to be measured.  Reel cord LSX consists of a housing, spring-loaded cable drum with measuring cable and mounting equipment for installation on the boom. Included in the housing is a length sensor, angle sensor, slip ring, and circuit board. Reel cord LSX SERIES can reach the max.length range 60m and angle range of -10°~+90°.

Specifications

Cable reel LSX-15B is for boom length 0-15m, with length and angle sensor, left mounted way

Cable reel LSX-15BR is for boom length 0-15m, with length and angle sensor, right mounted way

Cable reel LSX-25B is for boom length 0-25m, with length and angle sensor, left mounted way

Cable reel LSX-25BR is for boom length 0-25m, with length and angle sensor, right mounted way

Cable reel LSX-43B is for boom length 0-45m, with length and angle sensor, left mounted way

Cable reel LSX-43BR is for boom length 0-45m, with length and angle sensor, right mounted way

Cable reel LSX-60 is for boom length 0-60m, with length and angle sensor, left mounted way

Cable reel LSX-60R is for boom length 0-60m, with length and angle sensor, right mounted way
