Home > Products > Centrifugal Blowers > 4inch Hybrid-flo In Line Extractor Fan for Hydroponic Grow Room Tent

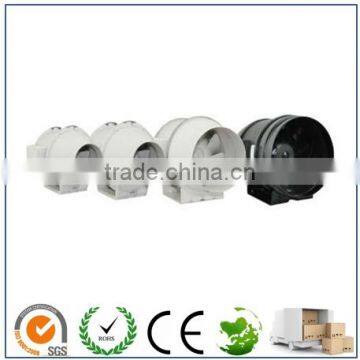

4inch Hybrid-flo In Line Extractor Fan for Hydroponic Grow Room Tent
- SHANGHAI
- T/T
You May Like
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Duct Fan | Place of Origin | Shanghai, China | |
| Brand Name | GOLTA | Model Number | HF | |
| Power | 26/140w | Voltage | 115/230v | |
| Air Volume | 180-690M3/H | Speed | 960~2900r/min | |
| Certification | CE, ROHS | After-sales Service Provided | No overseas service provided |
Product Description
General Features
1. The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function
2. Using ABS blades ,design by hydromechanics to reach the optimal air and pressure
3. Two -speed motor, imported NMB ball bearing, it’s life expectancy up to 50,000 hours
4. IP44 Protection class, waterproof and dustproof more effective
5. Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design
6. Operating temperature range :-20°C~60°C
Product Parameter:
| Model | Gear | Voltage/Frequency | Current | Power | Speed | Weight | Air Flow | Air Pressure | Avg. dBA@3m |
| (Amps) | (W) | (RPM) | (Kg) | (M3/H) | (Pa) | (db) | |||
| GLT-100 (4") | H | 230V/50Hz | 0.12 | 26 | 2200 | 2.0 | 198 | 156 | 31 |
| L | 0.11 | 23 | 1850 | 165 | 131 | 26 | |||
| H | 115V/60Hz | 0.26 | 30 | 2200 | 198 | 156 | 31 | ||
| L | 0.24 | 28 | 1850 | 165 | 131 | 26 | |||
| GLT-125 (5") | H | 230V/50Hz | 0.14 | 33 | 2250 | 1.8 | 284 | 159 | 31 |
| L | 0.13 | 28 | 1850 | 248 | 106 | 26 | |||
| H | 115V/60Hz | 0.30 | 32 | 2250 | 284 | 159 | 31 | ||
| L | 0.26 | 27 | 1850 | 248 | 106 | 26 | |||
| GLT-150 (6") | H | 230V/50Hz | 0.24 | 54 | 2550 | 2.7 | 530 | 300 | 33 |
| L | 0.21 | 48 | 1850 | 410 | 240 | 29 | |||
| H | 115V/60Hz | 0.58 | 65 | 2550 | 530 | 300 | 33 | ||
| L | 0.49 | 53 | 1850 | 410 | 240 | 29 | |||
| GLT-200 (8") | H | 230V/50Hz | 0.57 | 128 | 2450 | 4.9 | 840 | 352 | 63 |
| L | 0.52 | 123 | 1950 | 690 | 274 | 55 | |||
| H | 115V/60Hz | 1.41 | 162 | 2450 | 840 | 352 | 63 | ||
| L | 1.28 | 146 | 1950 | 690 | 274 | 55 |
Dimenstions:
| Model | X | A | øB | C | øD | E | F | G | H |
| GLT-100 | 188 | 303 | 176 | 115 | 97 | 100 | 90 | 80 | 60 |
| GLT-125 | 188 | 258 | 176 | 115 | 123 | 100 | 90 | 80 | 60 |
| GLT-150 | 212 | 320 | 200 | 127 | 147 | 112 | 130 | 80 | 60 |
| GLT-200 | 232.5 | 302 | 217 | 141 | 197 | 124 | 140 | 100 | 94 |
Application:
Practical examples of installation of the HF mixed flow fans range The HF fans provides a large number of solutions for small and large ventilations.
Residential-Kitchen, Domestic-Range Hood Exhaust, Commercial-Office, Industrial-Republic Restroom, School-Dining Hall, Industrial-Locker Room Health-Waiting Room, Meeting Room, Catering, Gym, Bathroom, Study Room.
Packing:
Shipping:
