Seamless Steel Pipe ASTM A333 Grade 6
You May Like
Product Description
Seamless steel Pipe ASTM A333 grade 6
1.Low Temoerature Techncial Parameters
Out diameter: 21.3mm-609.6mm
Thickness: SCH30 STD 40 80 160 XXS
Length: SRL; DRL; 5.8M; 11.8M, Fixed Length as per client`s requirements.
Steel Standard: ASTM A333.ASTM A671
Steel Material: Grade 1,Grade 3,Grade 6,Grade 7,Grade,7,Grade 9,CC60,CC65,CC70 ECT
Surface: Bare, Oiled, Anti-Corrosion Coating (3LPE 3LPP FBE Etc.);
Package: Plain/Bevel End With End Caps. Waterproof Packing, Bare Packing, In bundle, Nest Packing, Standard Export Packing
Inspection: SGS; BV.
Certificate: ISO9001; 2000
Date of Delivery: After received deposit 15-60 Days According to the Quantity
Payment: T/T; 100% L/C at sight; Western Union; D/A; D/P; O/A
Port of Shipment: Xingang Tianjin; Shanghai Port; Guangdong port; Ningbo Port; Qingdao port.
| Chemical Composition and Mechanical Property For ASTM A333 | ||||||||||
| Steel Grade | Chemcial Composition | | Mechanical performance | |||||||
| C(Max) | Si | Mn | P(Max) | S(Max) | Ni | Tensile strenght(Min) | Yield Strenght (Min) | |||
| psi | Mpa | psi | Mpa | |||||||
| Grade 1 | 0.3 | | 0.4-1.06 | 0.025 | 0.025 | | 55000 | 380 | 30000 | 205 |
| Grade 3 | 0.19 | 0.18-0.37 | 0.31-0.64 | 0.025 | 0.025 | 3.18-3.82 | 65000 | 450 | 35000 | 240 |
| Grade 4 | 0.12 | 0.08-0.37 | 0.5-1.05 | 0.025 | 0.025 | 0.47-0.98 | 60000 | 415 | 35000 | 240 |
| Grade 6 | 0.3 | 0.10(Min) | 0.29-1.06 | 0.025 | 0.025 | | 60000 | 415 | 35000 | 240 |
| Grade 7 | 0.19 | 0.13-0.32 | 0.90(Max) | 0.025 | 0.025 | 2.03-2.57 | 65000 | 450 | 35000 | 240 |
| Grade 8 | 0.13 | 0.13-0.32 | 0.90(Max) | 0.025 | 0.025 | 8.4-9.6 | 100000 | 690 | 75000 | 515 |
| Grade 9 | 0.2 | | 0.4-1.06 | 0.025 | 0.025 | 1.6-2.24 | 63000 | 435 | 46000 | 315 |
| Grade 10 | 0.2 | 0.1-0.35 | 1.15-1.5 | 0.035 | 0.015 | 0.25(Max) | 80000 | 550 | 65000 | 450 |
| Grade 11 | 0.1 | 0.35(Max) | 0.6(Max) | 0.025 | 0.025 | 35-37 | 65000 | 450 | 35000 | 240 |
| Steel Grade | Impact Temperature Requirement For ASTM A333 | ||||||||
| ℉ | ℃ | ||||||||
| Grade 1 | -50 | -45 | |||||||
| Grade 3 | -150 | -100 | |||||||
| Grade 4 | -150 | -100 | |||||||
| Grade 6 | -50 | -45 | |||||||
| Grade 7 | -100 | -75 | |||||||
| Grade 8 | -320 | -195 | |||||||
| Grade 9 | -100 | -75 | |||||||
| Grade 10 | -75 | -60 | |||||||
| Grade 11 | -320 | -195 | |||||||
2.Low Temparature Steel Pipe Showcase
3.Low Temperature Pipe Facility

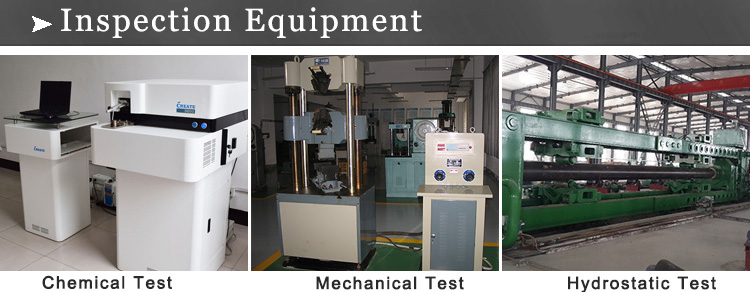

4.Low Temperature Pipe Inspection Equipment
5.Low Temperature Pipe Packing and Transportation
Our Advantages
1. Professional Sales Team With More Than 10 Years Experience In Steel Industry.
2. Technical Engineer From Oil Company and Third Party Inspection Company.
3. One-Stop Service for steel industry, Especially for pipeline project application.
4. Rich Cooperation Experience With SHELL,Lukoil,Samsung Etc.
5. Competitive price,Fast Delivery Time,Excellent Service.
Quality Control
Quality control is the basic but most important point for qualification of the steel pipes/tubes&fittings. We carry out in-production supervision and after-production inspection for our products. We ensure that the products are produced,tested,and inspected strictly according to standard specification under supervision of our QA engineer during production. After production inspection is carried out by worldwide famous third party inspection company like BV,SGS,Intertek Etc.
