24 Ply Nylon Polyamide Rope
You May Like
Product Description
Product Name:Nylon Rope
Material:Nylon
Products Description:

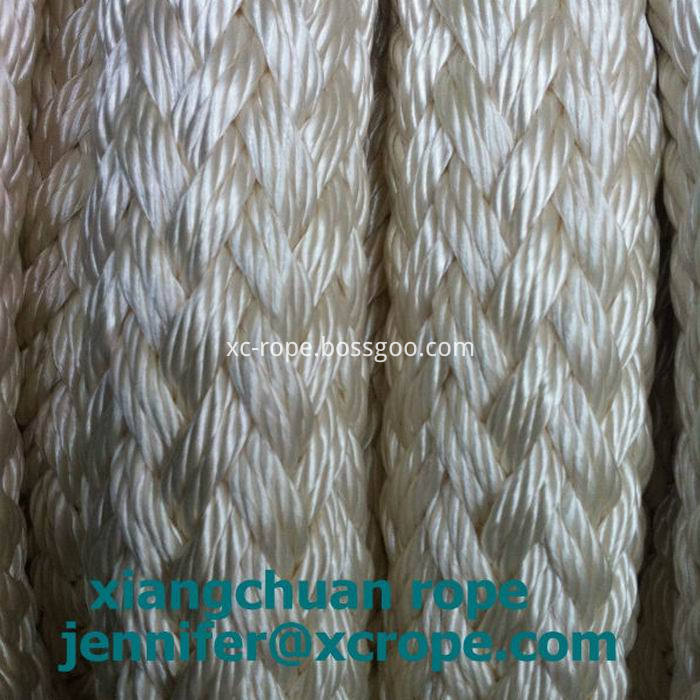

24-strand ropes are 100% Nylon (Polyamide) ropes fit for applications requiring elasticity and shock absorption properties.12/24-strand ropes have very good resistance to abrasion, sunlight, chemicals and cyclic loading.When wet they lose approximately 10% of their dry breaking strength which is recovered once dry again.
Application: mooring line, anchor line, towing rope
Length per coil: 220m
Spliced strength: ±10% lower
Weight and length tolerance: ±5%
MBL: ISO 2307 strandard
Other sizes can be customized
Parameter Table
| dia | PA multi | PA yarn | PP multi | PP mono | Polyester | PES/PP mixed | |||||||
| mm | ktex | kn | ktex | kn | ktex | kn | ktex | kn | ktex | kn | ktex | kn | |
| 4 | 10 | 3.7 | 10 | 2.6 | 6.3 | 2.3 | 6 | 2.1 | 12 | 2.9 | 7 | 2.8 | |
| 6 | 22 | 7.9 | 22 | 6 | 18 | 6.5 | 17 | 5.9 | 27 | 5.6 | 17.5 | 6.8 | |
| 8 | 40 | 13.8 | 40 | 10.9 | 32 | 11.4 | 30 | 10.4 | 48 | 10 | 31 | 11.9 | |
| 10 | 62 | 21.2 | 62 | 15.7 | 47 | 16.8 | 45 | 15.3 | 76 | 15.6 | 48.5 | 18.2 | |
| 12 | 89 | 30.1 | 89 | 24.1 | 68 | 23.9 | 65 | 21.7 | 110 | 22.3 | 69.9 | 25.7 | |
| 14 | 121 | 40 | 121 | 33 | 95 | 32.9 | 90 | 29.9 | 148 | 31.2 | 95.1 | 34.7 | |
| 16 | 158 | 51.9 | 158 | 42.5 | 121 | 40.7 | 115 | 37 | 195 | 39.8 | 124 | 44.8 | |
| 18 | 200 | 64.3 | 200 | 53.9 | 155 | 51.9 | 148 | 47.2 | 245 | 49.8 | 157 | 56.1 | |
| 20 | 247 | 79.2 | 247 | 66.7 | 189 | 62.6 | 180 | 56.9 | 303 | 62.3 | 194 | 68.7 | |
| 22 | 299 | 94 | 299 | 80.4 | 231 | 75 | 220 | 68.2 | 367 | 74.7 | 235 | 82.1 | |
| 24 | 355 | 112 | 355 | 96.3 | 273 | 87.7 | 260 | 79.7 | 437 | 89.6 | 279 | 96.3 | |
| 26 | 417 | 129 | 417 | 111.5 | 320 | 101 | 305 | 92.2 | 512 | 105 | 328 | 113 | |
| 28 | 484 | 149 | 484 | 127 | 373 | 115 | 355 | 105 | 594 | 120 | 380 | 130 | |
| 30 | 555 | 169 | 555 | 143 | 425 | 132 | 405 | 120 | 682 | 134 | 437 | 148 | |
| 32 | 632 | 192 | 632 | 161 | 483 | 146 | 460 | 132 | 778 | 154 | 497 | 167 | |
| 36 | 800 | 240 | 800 | 200 | 614 | 182 | 585 | 166 | 982 | 190 | 629 | 210 | |
| 40 | 987 | 294 | 987 | 241 | 756 | 221 | 720 | 201 | 1215 | 235 | 776 | 257 | |
| 44 | 1190 | 351 | 1190 | 289 | 924 | 266 | 880 | 242 | 1468 | 275 | 939 | 308 | |
| 48 | 1420 | 412 | 1420 | 338 | 1092 | 308 | 1042 | 280 | 1750 | 329 | 1110 | 364 | |
| 52 | 1670 | 479 | 1670 | 393 | 1281 | 357 | 1220 | 325 | 2050 | 384 | 1320 | 424 | |
| 56 | 1930 | 550 | 1930 | 450 | 1491 | 408 | 1420 | 371 | 2380 | 439 | 1520 | 489 | |
| 60 | 2176 | 630 | 2176 | 520 | 1720 | 460 | 1750 | 430 | 2700 | 510 | 1990 | 600 | |
| 64 | 2475 | 710 | 2475 | 780 | 2000 | 530 | 1986 | 480 | 3100 | 590 | 2270 | 640 | |
| 72 | 3133 | 880 | 3133 | 720 | 2500 | 660 | 2527 | 610 | 3818 | 742 | 2870 | 800 | |
| 80 | 3868 | 1100 | 3868 | 890 | 3100 | 817 | 3086 | 740 | 4636 | 910 | 3540 | 980 | |
| 88 | 4680 | 1300 | 4680 | 1100 | 3810 | 980 | 3748 | 890 | 5636 | 1090 | 4280 | 1170 | |
