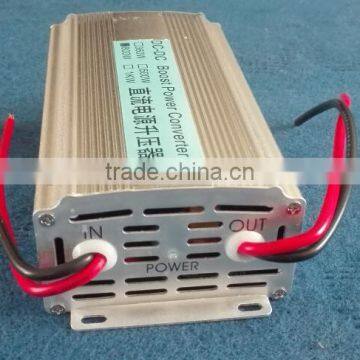

24v to 48v 15a 720w dc -dc Boost Power Converter

DC -DC Boost converter Spec. is as follows

12v to 24v,5A                               12V TO 48V,2A                       24V TO 48V,10A

12V to 24v,10A                            12V TO48 V,5A                       24V TO 48V,20A

12V to 24V,15A                            12V TO 48V,10A                24V TO 48V,30A

12V TO 24V,20A                           12V TO 36V 10A

12V TO 24V,25A                            12V TO 36A  5A

12V TO 24V,30A

the converter is a using pulse width modulation (PWM), non isolation type switch stable voltage power supply, the input voltage 24V to 48V output, using imported high power integrated switching regulator module as the core, the unstable of 20 - 28V DC power converter for stable 48V DC power output. With high conversion efficiency, stable performance and other features, input over-voltage, output over current, over temperature, short circuit and other automatic protection function, and after the elimination of the fault to resume normal work. Particularly suitable for car audio, LCD TV, intercom, monitoring system and mechanical equipment, etc..

main  parameters:
Input voltage: DC20V - DC28V
Output voltage: DC48V ± 5%
Output Current: 15A
Working temperature: -20 ℃ - + 55 ℃
Conversion efficiency:> 90%
Rated power: 600W
Peak power: 850W (MAX)
Quiescent current: <100mA
Size: Length 160MM, width 87MM, 52MM high
