2000W 12v to 24v 84a waterproof boost /step up dc-dc power converters

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port China port
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	GW
Model Number	GW-12S2484	Output Power	Other, 2000W
Output Type	Single	Size	20012763mm
Weight	3KG	Input Voltage	DC 10-16V
Output Voltage	DC 24V	Type	DC/DC Converters
Output Current	84A

Product Description

Our products are widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-16Vdc
4. Industry grade DC12V to DC24V step-up converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:

Model	WG-12S2484
Input rated voltage	12V DC
Input voltage range	10-16V DC
Efficiency	97.5% (half load), 96% (full load)
Output voltage	24V DC
Output current	84 Amps
Output rated power	2000 Watts
Output peak power	130%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (Full load test)	< 180mV
No-load current	50~60mA
Working temperature	-40°c ~ +80°c
Waterproof rating	IP68
Over-voltage protection	YES
Over-current protection	YES
Over-temperature protection	YES
Short-circuit protection	NO

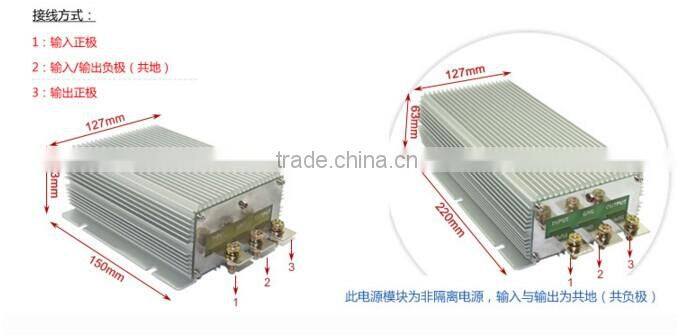

Machine size	20012763mm
Package size	250150100mm
N. Weight	2.7kg
G. Weight	3kg
Cooling way	Free air convection
Other	Carton packaging
