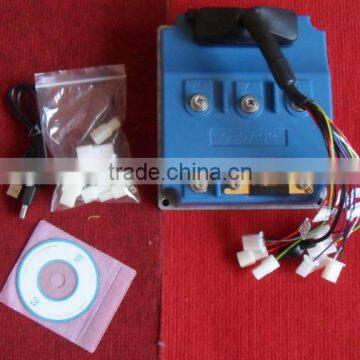

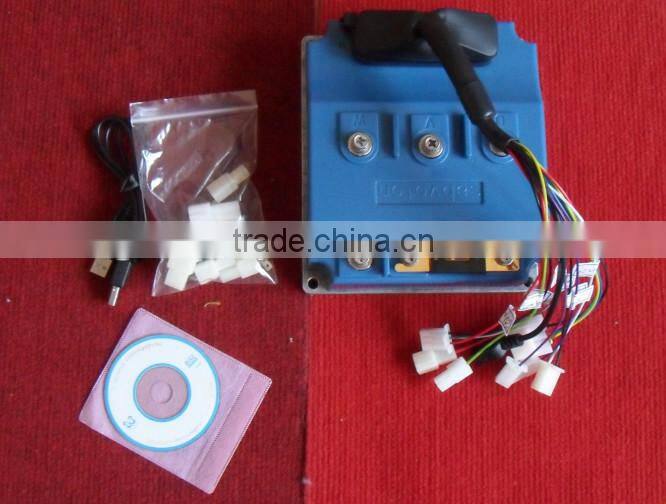

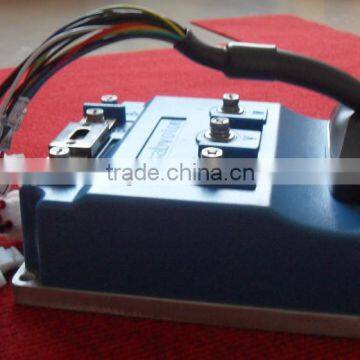

72v 150a Sine Wave Bldc Motor Controller

SSC programable sine-wave motor cotroller works with high efficiency, less nosie, and lower energy comsuption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and abtain the diagnostic info easily and quickly.

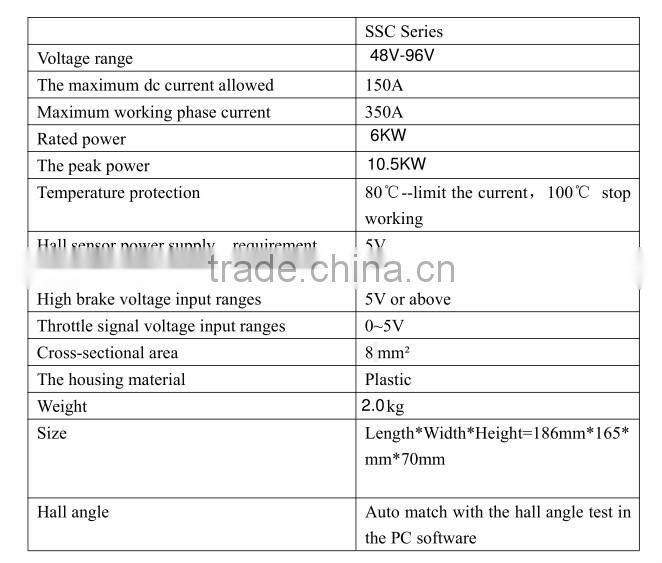

General Spec .:

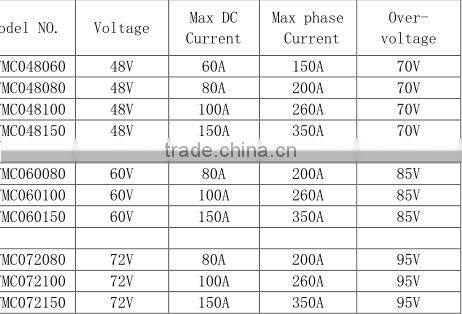

1. power supply:72V, MAX DC current:150A , Max phase current:350A

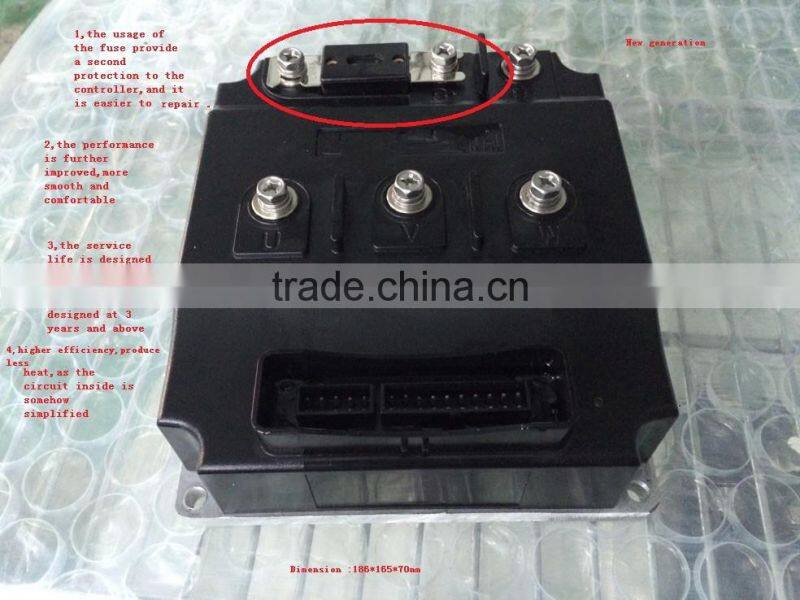

2. Product Size: 186x165x70mm

3. Net Weight:2kgs

4. Testing way: Hall sensor

Features:

1,FOC-180 sinusoidal drive controller applied to BLDCM or PMSM..

2,It takes only 3 minutes for the motor to be well matched on its best electronic angle at the first time.

3,The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.

4,The precise current ring can provide accurate torque input to meet the requirement 0f large torque output during vehicle starting and climbing.

5,The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controllerand extend battery life mileage

6,Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection ,under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.

7,System status and fault intelligent management system can effectively monitor the current system operating mode external input state ,the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.

8,The rich peripheral interfaces: reverse, cruise, anti-theft, electronic brake, etc.

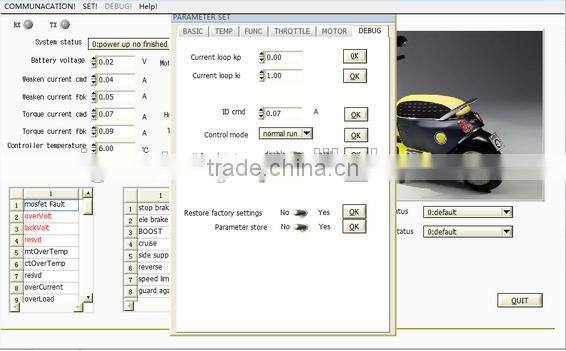

9,Parameter modifications and settings are available through online configuration with online computer
