Home > Products > Control Systems > AC Asynchronous Motor Controller

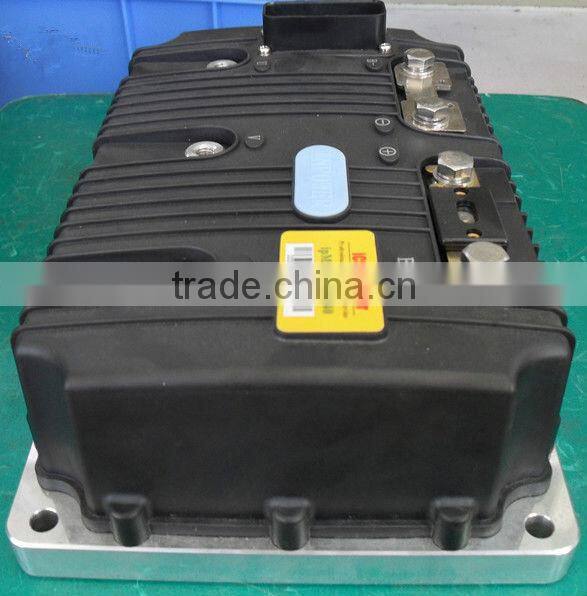

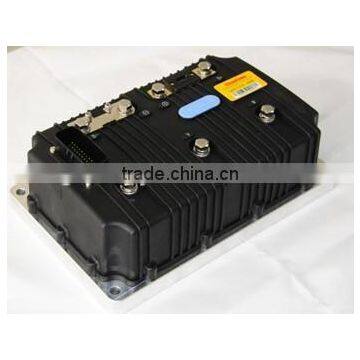

AC Asynchronous Motor Controller

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port China port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	gw
Model Number	MC3336		Motor Type	AC Motor

Product Description

MCAC series AC Motor Controllers is developed for electric vehicles, it adopts advanced DSP processor and high performance vector control algorithm that can provides efficient, fluent operation and regenerative braking ,.Comprehensive protection functions ensure safety of controllers and electrical systems of vehicles .Fully programmable function enables custom optimization to change driving parameters flexibly.

Product Features:

All-digital control by Digital-signal-processor (DSP)

Advanced vector control algorithm

Accurate torque control in wide speed range and efficient,

fluent operation

Protection of OC (Over current), LU(Low Voltage), OU(Over Voltage), OT(Over Temperature) etc.

Customizable communication of RS232 and CAN bus

Fully programmable function for controllers to customize control parameters

Regenerative braking and energy feedback

Sealed Package standard:IP65

Product Specification:

Type		72V	96V
	Input Voltage(DC/V)	65~85	82~115
	Max Output Current(AC/A)	450	450
	Rated Current(AC/A)	200	200
	Starting Voltage(DC/V)	48	64
	Max Output Power(KW)	32	43
Operation Temperature		-30°C------- 55°C
IP Grade		IP65
Insulating Property		Input to or Output to Shell: Leakage Current 0.05mA and Insulation Resistance 20MΩ @DC 1000V
Storage Temperature		-40°C------70°C
Max Efficiency		98%
Type of Cooling		Self-cooling
Shock & Vibration		GB/T2423
Control Method		Vector control with velocity sensor
Communication		RS232 and CAN bus
Weight		8.5kg

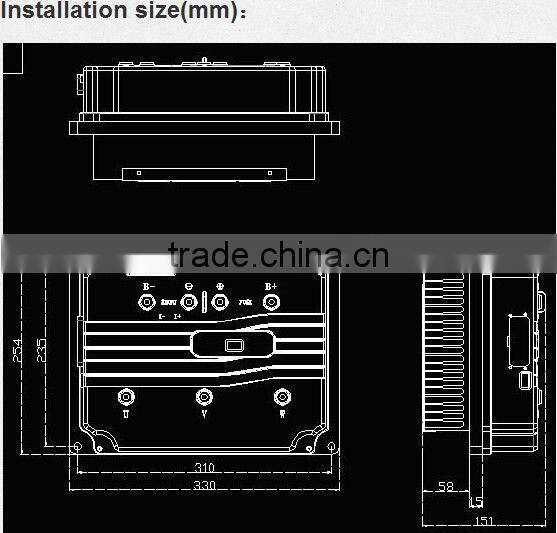

Size		Attached photo

Type Spec.

Type	Battery Voltage	Amerate Current	Shape
IpMCAC7225	72V	250A	I
IpMCAC9625	96V	250A	I
IpMCAC12025	120V	250A	I
IpMCAC14425	144V	250A	I
IpMCAC19225	192V	250A	I
IpMCAC19225	192V	500A	II
IpMCAC30025	300v	500A	II
IpMCAC60025	600V	500A	II
