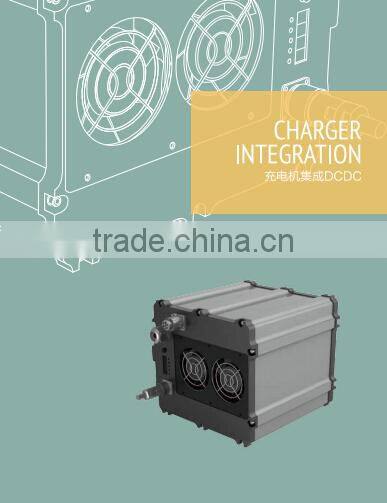

OBC Integration DCDC
Negotiable
/ Piece
1 Piece(Min. Order)
- QINGAO
- Credit Card PayPal
You May Like
-
On-board Charger Integrated DC-DC Converter
-
6KW 417V 18A HF-PFC On-board Lithium Battery Charger CH417-18
-
380v ac Three-phase Input Frequency Intelligent Battery Charger
-
700w/1.5kw/2kw/3kw/4kw/6kw/8kw/10kw HF/PFC On-board Lithium/lead Acid Battery Charger for Electric Car
-
Waterproof Intelligent PF/PFC on Board Lithium Battery Charger for Electric Car
-
3kw on Board Lithium Battery Charger With CANbus Control or Enable Control
Product Details
| Brand Name | GW | Model Number | GWCH | |
| Use | Other, all kinds of EV, PHEV | Type | Electric | |
| Place of Origin | Shandong, China |
Product Description
Applicable for all kinds of EV, PHEV, etc
Applicable for lithium ion battery & lithium manganese battery charge
Cooling system: air cool
Control mode: CAN bus
OBC-DCDC integrated application
Model | GW-FEI018-C-33 | ||
Specification | |||
| 1 | DCDC | Power | 1.8KW |
| 2 | Input voltage range | DC 200V~420V | |
| 3 | Rated input current | 130A | |
| 4 | Rated input voltage | DC 13.7V±0.3V | |
| 5 | Voltage control accuracy | <1% | |
| 6 | Current control accuracy | <2% | |
| 7 | Overall efficiency | ≥96% | |
| 8 | Operation temperature range | -40℃~85℃ | |
| 9 | Storage temperature range | -40℃~65℃ | |
| 10 | Relative humidity | 5%~95% no condensation | |
| 1 | OBC | Input power | 3.3KW |
| 2 | Input Voltage | 220V±15% | |
| 3 | Input Frequency | 45-65HZ | |
| 4 | Max Currenct | 16A(220V) | |
| 5 | Output Voltage | 336V | |
| 6 | Output Voltage Range | 200V-420V | |
| 7 | Voltage Ripple Factor | ≤±5% | |
| 8 | Max Output Current | 9A | |
| 9 | Power Factor | ≥99% | |
| 10 | Overall Unit Peak Efficiency | 94.00% | |
| 11 | Starting Current Impact | <24A | |
