Home > Products > geosynthetics > HOT!!!High Density Polymer (HDPE) Geocell Manufacturer

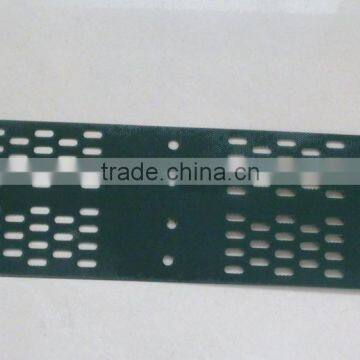

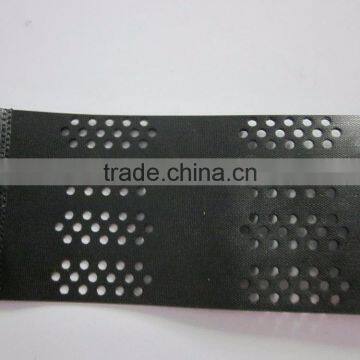

HOT!!!High Density Polymer (HDPE) Geocell Manufacturer

FOB Price

US$ 0.5 - 7 / Square Meter

500 Square Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	Hengfeng
Model Number	GS200-400		Material	HDPE

Specifications

1. Price: Reasonable
2. Height: 50~250mm
3. Welding Range:330~1000mm
4. Thickness: 1.1/1.2/1.5mm
5. Type: Smooth & Textured

Introduction

Hengfeng Geocell is engineered for soil stabilization applications, it is used to help improve the performance of standard construction materials and erosion-control treatments.
Hengfeng Geocell is a lightweight and flexible three-dimensional, expandable panels made from high-density polyethylene(HDPE) strips which are ultrasonicallybonded together to form an extremely strong configuration.Hengfeng Geocell System can be filled with a wide rangeof material: aggregate, concrete, sand, soil, etc
Hengfeng Geocell is popular with both domestic and abroad.

Application:

1. Erosion Control

2. Load support

3. Slope protection

4. Channel protection

5. Retaining wall

6. Ground stabilisation

Concrete construction method

1. Open the superimposed geocell.

2. Fixed with nails or connected with the framework of stretching device.

3. Fill the particle filler until the full and beyond standard room to the top, then vibrate or roll to finish the primary work.

4. At this point, cell chamber system can support all kinds of construction equipment. The construction can be done directly in the above.

Technical indexes

Product Type	Height(mm)	Welding Distance(mm)	Thickness (mm)	Tensile Strength of Welding Points(N/cm)	Tensile Strength of Connection of Cells(N/cm)	Tensile Strength at Yield of Each Sheet(N/Mpa)
Flat and Not Perforated	50≤H≤250	330≤A≤1000	1.1/1.2	≥100	≥120	≥20
Flat and Perforated	50≤H≤250	330≤A≤1000	1.1/1.2	≥100	≥120	≥20
Embossed and Not Perforated	50≤H≤250	330≤A≤1000	1.5	≥100	≥120	≥20
Embossed and Perforated	50≤H≤250	330≤A≤1000	1.5	≥100	≥120	≥20
Remarks: Width of the product can be made according to the customer’s demand, and the other special standards will be carried out by agreement or contact. (The product has passed CE & GOST-R & SGS certification)
