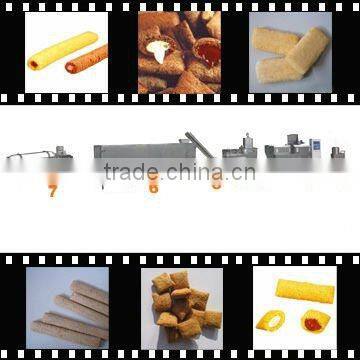

Automatic Core Filling Snack Food Processing Line renamed Jam center snack food production line in Chenyang Machinery

Name

Processing Line

Output

Power

Size

Snack food

1.Mixer

2.Double-screw extruder

3.Air conveyer

4.Roasting oven

5.Flavoring line

100-120kg/h

53kw

15*0.8*1.6m

Jam Center food

1.Mixer

2.Double-screw extruder

3.Multi-function cutting shaper

4.Core filler

5.Large-hoister

6.Roasting oven

7.Flavoring line

100-120kg/h

55kw

18*0.8*1.6m

NO.

EQUIPMENT

QUAN

TITY

TECHNICAL PARAMETER


FUNCTION

1

Mixer

1

Power:4kw

Output:50kg/tube

Size:0.8*0.7*1.2m

To mix the raw materials with the water

2

Screw conveyer

1

Power:1.1kw

Output:100-500kg/h

Size: 0.2*0.8*3.0m

To send the materials to the extruder,

3

Double-screw extruder

CY65-II

1

Power:35kw

Length-diameter ratio:

1050*65

Output:120-150kg/h

Size: 2.5*1.0*1.8m

To extrude and inflate the food. the main machine of the line

4

Multi-function cutting shape

1

Power:1.1kw

Output:150kg/h

Size: 1.0*0.8*1.2m

To shape the food, like moon, bird, fish etc.

5

Core filler 65-Ⅱ

1

Power:1.1kw

Output:150kg/h

Size: 1.0*0.8*1.2m

To fill the different jam center

6

Air conveyer

1

Power:0.75kw

Output:100-500kg/h

Size: 2.5*0.6*2.0m

To send the food to the next machine

7

Large-hoister

 T200

1

Size 1.52*1.192*2.945m

Material stainless stell

Power 0.8kw

Hoisting hight 1.9m

Hoisting speed 3m/min

Hoisting capacity 300kg

Weight 350kg

To convey the production from one machine to another

8

Roasting oven

(3layer/5m

 electrical)

1

Power:27.5kw

Output:100-150kg/h

Size: 5*1.3*2.0m

To dry the food

9

Automatic

flavoring line

1

Power 0.37kw

Size 2.1*0.7*1.6m

Output 150-200kg/h

To flavor the production
