Home > Products > "Juanyong" Brand Water Pump > Hot Sale Farm Irrigation Water Pump Machine
Hot Sale Farm Irrigation Water Pump Machine
- Chongqing
- T/T
You May Like
-
Hydraulic Power and Low Pressure Pressure Hand Water Pump
-
High Quality With Best Price Water Pump for Agriculture
-
Standard Standard or Nonstandard and Centrifugal Pump Theory Cast Steel Water Pump
-
Water Pump for IRRIGATION Manufacturer From China
-
NEW 5.5HP 3 Inch Water Transfer Pump 4 Stroke Petrol
-
Price 6.5hp Water Pump for Agriculture
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | WP100 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Other, Hydraulic, 15hp | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Other, garden |
Product Description

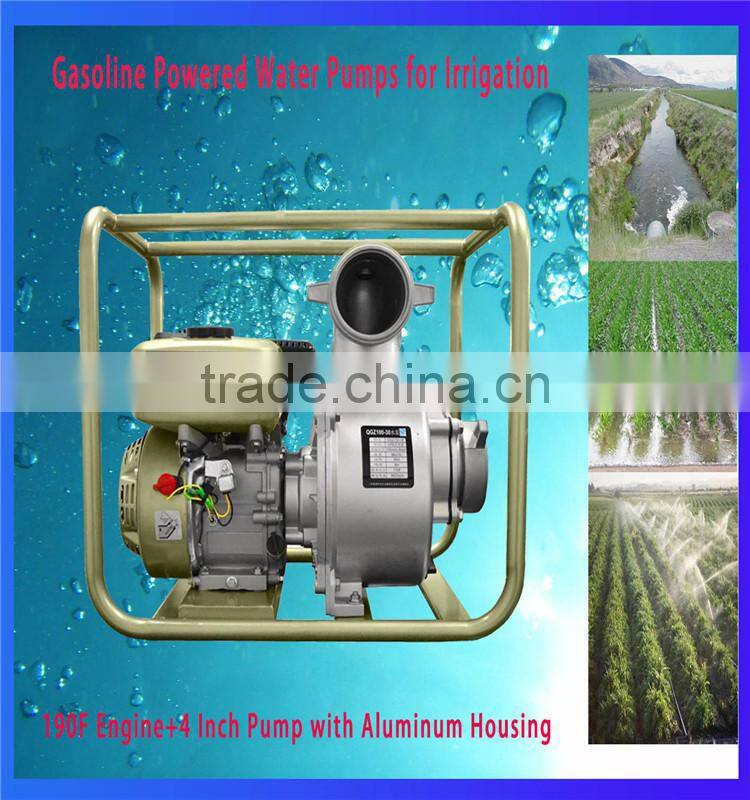

Hot Sale Farm Irrigation Water Pump Machine

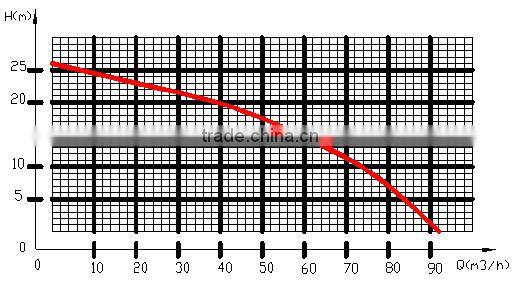

Performance curve
Parameter
ITEM | WP100 |
Outlet Size(mm) | 100 |
Inlet Size(mm) | 100 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 90 |
Lift H.max(m) | 25 |
Suction(m) | 7 |
Engine Model | 190F |

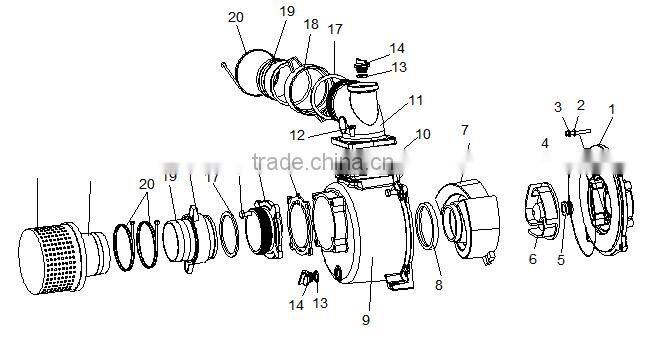

Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 5 |
3 | Bolt M8×45 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | Bolt M10×30 | 12 |
13 | Rubber plug gasket | 2 |
14 | Threaded plug pump | 2 |
15 | Inlet sealing gasket | 1 |
16 | Inlet joint | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Pipe joint connecting nut | 2 |
19 | Pipe joint | 2 |
20 | Clamp | 3 |
21 | The filtering orifices | 1 |
22 | Filter cover | 1 |
Water pump feactures
*Powered by a strong engine.The strong and lightweight die-cast aluminum pump delivers
high volume of water.
*The highly effective mechanical seal with special carbon ceramics provide extra durability.
*The entire unit is protected by a sturdy rollover pie frame.
*Guaranteed suction head of 7meters.

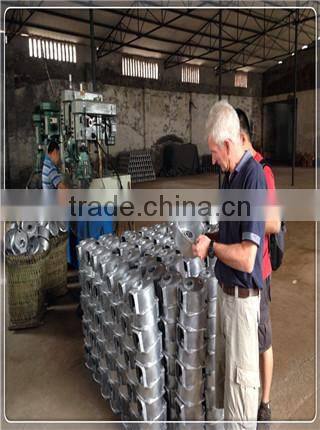

Customers to visit our factory
*Sprinkling for field irrigation.
*Irrigation of paddy fields.
*Orchard cultivation.
*Pumping water from wells.
*Feeding or draining water to/from ponds or troughs.
*Feeding or draining water on fish farms.
*Washing cattle,barns or agricultural tools.
*Feeding water into water reservoirs.
Delivery time:10-15days after initial payment.
Sampe by express, like UPS,TNT,FEDEX,EMS by air.
For large goods will delivery by sea.
Payment :T/T30% payment in advance,70% pay it when we prepared all goods after.
West Uion/PayPal and the special issues can be discussed.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
