Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | FTB80 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Maritime |
Product Description
ITEM | FTB80 |
Outlet Size(mm) | 80 |
Inlet Size(mm) | 80 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 50 |
Lift H.max(m) | 22 |
Suction(m) | 7 |
Engine Model | 168F |

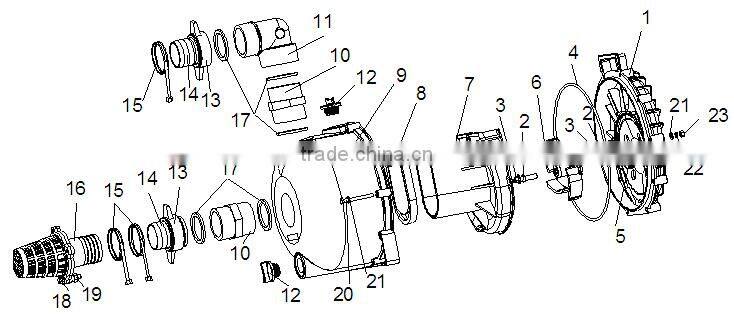

Serial number | Name
| Number
|
1 | Water pump cover | 1 |
2 | Rubber ring φ12×φ6×3.1 | 4 |
3 | Bolt M8×35 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Inlet joint | 2 |
11 | The water outlet joint | 1 |
12 | Threaded plug pump | 2 |
13 | Pipe joint connecting nut | 2 |
14 | Pipe joint | 2 |
15 | Clamp | 3 |
16 | Filter cover | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Bolt M8×35 | 2 |
19 | Nut M8 | 2 |
20 | Bolt M6×65 | 10 |
21 | Shim | 20 |
22 | Spring pad | 10 |
23 | Nut M6 | 10 |
