NEW Gasoline Pump /Chemical Pump With Specification of Centrifugal Pump for Water
- Chongqing Port
- T/T Money Gram Credit Card
You May Like
-
Chemical Pumps With Plastic for Industry Usage With Sea Pumps
-
Hot Sale 3 Inch Portable Gasoline Honda Chemical Pump Small Water Pump
-
Petroleum Chemical Centrifugal Pump
-
Electric or Diesel Power and Water, Oil, Corrosive Liquid Usage Low Flow Chemical Process Pump
-
Diesel Engine Centrifugal Water Pump, Water Flow, Chemical Pump, Pumps Pirce
-
Self Priming Chemical Pump(2 Inches) With Aluminum Chemical Pumps
Product Details
| Place of Origin | Chongqing, China | Brand Name | JUANYONG | |
| Model Number | FTB50 | Theory | Centrifugal Pump | |
| Structure | Diaphragm Pump | Usage | Water | |
| Power | Other, Hydraulic, 6.5hp | Standard or Nonstandard | Nonstandard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Metering |
Product Description
Plastic pumps are designed to move≥5℃ and PH4-11 abrasive materials,acids,adhesives,
chemicals,coolants,liquid metal.
Plastic pump can pump ground water,potable water and salt water.
1.Plastic pumps are designed to move fluids that would corrde or damage other types of pumps.
2.They provide broad chemical resistance and lighter in weight than metal pumps.

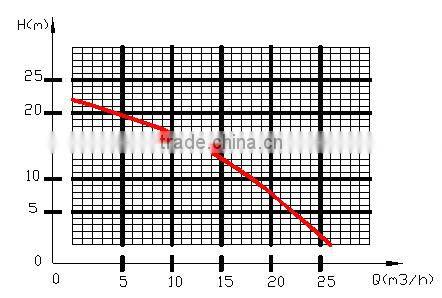

Performance curve
Parameter
ITEM | FTB50 |
Outlet Size(mm) | 50 |
Inlet Size(mm) | 50 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 25 |
Lift H.max(m) | 22 |
Suction(m) | 7 |
Engine Model | 168F |
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A.Stable quality-coming from good material and technic.
B.Lower price-not cheapest but the lowest at the same quality.
C.Good service-satisfactory service before and after sale.
D.Delivery time10-15 days for mass production.

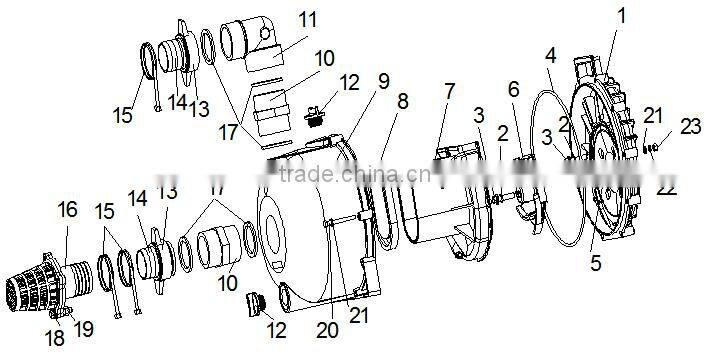

Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Rubber ring φ12×φ6×3.1 | 4 |
3 | Bolt M8×35 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Inlet joint | 2 |
11 | The water outlet joint | 1 |
12 | Threaded plug pump | 2 |
13 | Pipe joint connecting nut | 2 |
14 | Pipe joint | 2 |
15 | Clamp | 3 |
16 | Filter cover | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Bolt M6×20 | 2 |
19 | Nut M6 | 2 |
20 | Bolt M6×65 | 10 |
21 | Shim | 20 |
22 | Spring pad | 10 |
23 | Nut M6 | 10 |
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
