Solar water pump inverter DC to AC converter Mppt function three phase 380V 22kw 22 kw
USD $29 - $39
/ Set
1 Set(Min.Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Solar water pump inverter DC to AC converter Mppt function three phase 380V 18kw 18 kw
-
Solar water pump inverter DC to AC converter Mppt function three phase 380V 15kw 15 kw
-
Solar water pump inverter DC to AC converter Mppt function single phase 220V 2.2kw 2200w
-
Solar water pump inverter DC to AC converter Mppt function single phase 220V 1.5kw 1500w
-
Solar water pump inverter DC to AC converter Mppt function single phase 220V 1.1kw 1100w
-
Solar water pump inverter DC to AC converter Mppt function single phase 220V 0.75kw 750w
Product Details
| Place of Origin | Shanghai, China | Brand Name | YC | |
| Model Number | Yaochuang solar water pump inverter | Application | Solar System Controller | |
| Rated Voltage | Other, 380V solar water pump inverter | Maximum Current | 50A/100A/150A/200A |
Product Description
Solar water pump inverter DC to AC converter Mppt function three phase 380V 22kw 22 kw
In order to meet various pumping water applications requirements, YCSB solar water pump controller adopts maximum power point tracking and mature motor driving technology to maximize the output power of PV array. It supports DC and AC input, if sunshine is insufficient, the controller will switch to single or three phase AC input, such as genset or battery. And it provides fault detection, build-in VFD, and speed-controlling function, out of the box, convenient installation.
| Model | YCSBH3PH110 | YCSBH3PH150 | YCSBH3PH180 | YCSBH3PH220 | YCSBH3PH300 | YCSBH3PH350 | YCSBH3PH450 |
| Rated capacity(KW) | 11 | 15 | 18 | 22 | 30 | 35 | 45 |
| Max. input voltage(V) | 800 | ||||||
| MPPT voltage range(V) | 300-750 | ||||||
| Recommend input work voltage(V) | 560 | ||||||
| Max. input current(A) | 35 | 41 | 56 | 69 | 83 | 113 | 139 |
| Max. MPPT efficiency | 97% | ||||||
| Recommend pv array power(kw) | 13.8 | 16.5 | 22.5 | 27.8 | 33.0 | 45.0 | 55.5 |
| Input road | 2 | ||||||
| Max, drive motor power(kw) | 9.2 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Rated output voltage(V) | 380V 3 phase | ||||||
| Output frequency | 0~50/60Hz | ||||||
| Max. system efficiency | 98% | ||||||
| Operating temperature range | from-10℃ to +40℃ | ||||||
| Cooling method | Natural cooling + air cooling | ||||||
| Display | LCD | ||||||
| Altitude | 1000m,above 1000m need derate power 1000m | ||||||
| Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||||

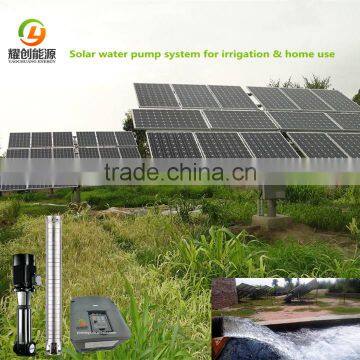

25hp solar water pump system configuration (solar panel + solar water pump + deep well pump)
