15kw solar system 15kva solar power system off grid system

FOB Price

USD $377 - $677 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

15kw solar system 15kva solar power system off grid system

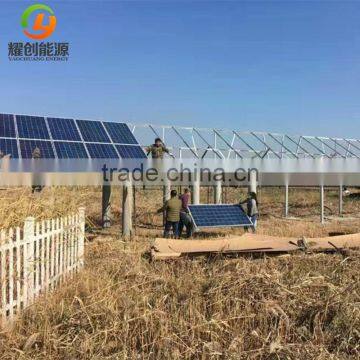

15kw solar system project

Install Site: Haerbin City ,Heilongjiang Province.

Solar capacity: 15kw solar power system

Power Generation: 42KWH per Day

10 years solar panel for solar off grid system

solar panel certificates

Solar inveter for off grid system (pure wave solar inverter)

Solar controller for solar off grid system

System voltage	24V	48V
System current	80A	80A
No-load loss	<20mA	<15mA
Solar energy input voltage	55V	100V
Over voltage protection	33.0V±1%	66.0V±1%
Over voltage recovery	30.0V±1%	60.0V±1%
Balancecharge voltage	29.2V±1%	58.4V±1%
Increase charge voltage	28.8V±1%	57.6V±1%
Float charge voltage	27.6V±1%	55.2V±1%
Charging return voltage	26.6V±1%	53.2V±1%
Over discharge protection voltage	22.2V±1%	44.4V±1%
Over discharge return voltage	25.6V±1%	51.2V±1%
Night identification voltage	6.0V±1%	12.0V±1%
Daytime identification voltage	14.0V±1%	28.0V±1%
Temperaturecmpensation	-4.0mv/℃/2V
Over-load, short circuit protection	1.25 times rating current 30S;1.5 times rating current 10S overload current protection ≥3 times rating current short circuit protection
Work temperature	-25℃to+60℃
Protection degree	IP30
Outline size	150mm135mm63mm

Lead-acid battery for solar off grid system

completely sealed and maintenance-free, low self-discharge

100% precise quality testing, stable quality and high reliable performance

Unique grid alloy formula and updated manufacturing technique

Floating & standby use:up to 5 years

Cycle use 1: More than 280 cycles at 100% DOD

More than 1400 cycles at 30% DOD

Battery certificates
