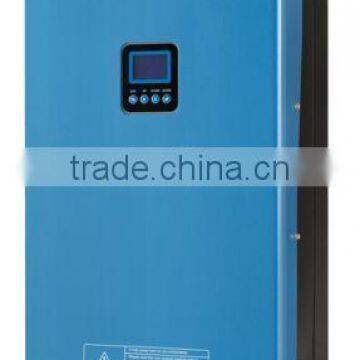

1 Phase or 3 Phase 220/240v Automatic Hybrid Solar Pumping Inverter Dry Run Protection by Sensor/software

Solar water Pumping System

Solar  water Pumping System is consist of  PV panel,pumping inverter/controller,AC/DC pump .

HSPL/HXXXXL/HA/B series produts are conver the  DC power of the PV array to 3ph-AC power

and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.

Product Introduction

Product Advantage:

Hybrid(Solar,AC Power,Battery,Diesel generator)

Automatic switching

MPPT MEPT function

Solar Booster for saving solar panels

Metal Shell,Waterproof IP65

Setting working time,Control the flow

Film capacitor 100000 working hours

Work with any 3 phase pump

Features:

1.Convert the DC power of solar array into AC power to the water pump.Soft start and Variable Frequence drive the pump.

2.Second Generation of MPPT Function:Automatic /don't need set MPPT voltage by LCD/LED.Efficiency is Max to 30% higher than the inverter who need to set the MPPT Voltage,more output water flow.

3.One key for startup/Stop,support to adjust the output water flow also.

4.Without battery,storing water is more efficient than storing electricity,reduce the cost of constrution,operating and routine maintenance

5.Protection:Over temperature,Over input voltage,over input current,over reted load,input anti-reverse,AC output short circuit,phsae missing,phase unbalance,lighting.

dry run protection by software/Well sensor,waterpfoof.

6.water level detactive of tank for over flow,Optional of pressure sensor for long

distance between the well and tank.

7.Mobile phone control or computer remote monitoring through RS485/GPRS/wifi/Ethernet(optional)

 Solar Pump Inverter Parameters

 Project and Product Application

1,-Global leading professional inverter manufacturer

2,-Perfect product quality:100% full bum-in test

3,-Test report:CE,RoHS,UL,ISO9001-2008

4,-Monthly production capaciy:1,000 pcs
