Product Details

Place of Origin	Shandong, China	Brand Name	Lida
Model Number	LD-CH002	Material	Container
Use	Hotel, House, Other, Office, Shop, Toilet, Warehouse, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse

Product Description

Different function prefab mobile container type house

Container House is designed and developed according to the standard size of shipping container. Transportation is designed in accordance with a standard ISO shipping container. The corner casting structure enables lifting capability utilizing a crane in the same manner as a standard ISO shipping container.It is of heatproof and waterproof. It is widely used as Site office, site living room, meeting room, dormitory, shop, toilet, storage, kitchen, shower room and so on. Light material without overload, easy to pack and transport. The house can be assembled and disassembled more than 6 times, and the service life is more than 20 years.

Characters:
1) Good ability to assemble and disassemble for several times without damage.
2) Could be lifted, fixed and combined freely.
3) Heatproof and waterproof.
4) Cost saving and convenient transportation (Each 4 container house can be loaded in one standard container)
5) Service life can reach up to 15 years
6) We can provide the service of installation, supervision and training by extra.

Technical Parameter of standard prefabricated house:
Wind resistance: Grade 11(wind speed≤111.5km/h)
Earthquake resistance: Grade 7
Live load capacity of roofing: 0.5kn/m2
External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
Live load of floor is 2.0kn/ m2

Main Material:

NO.	ITEMS	DESCRIPTION
1	MATERIAL	Light steel structure material Q235
2	WALL	Sandwich panel with steel plate surface: Panel total thickness: 75mm
3	ROOF	Roof exterior: 1.2mm steel plate Insulation filling: 75mm rock wool Inner wainscot: 9mm MDF
4	WINDOWS	PVC sliding window
5	DOORS	Frame is made of aluminum, Insulation: 50mm thick EPS insulation foam

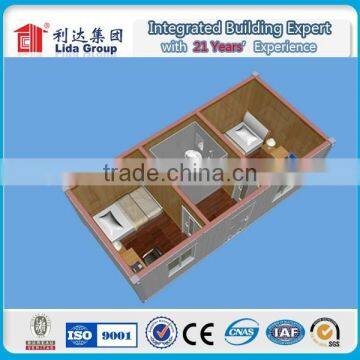

Different floor plan for 20Ft and 40Ft container house

20Ft:Two bedroom with one toliet

20Ft: One bedroom with sitting area,one toliet

20Ft: One bedroom with kitchen

40Ft(two bedrooms with one bathroom)
