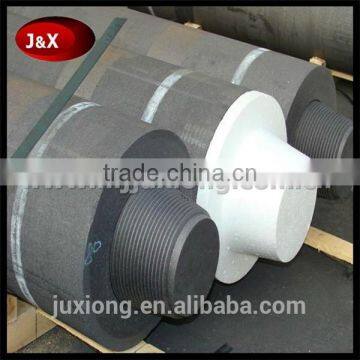

Machined Graphite electrodes for metallurgy and melt industry
- China port
- T/T Credit Card
You May Like
Product Details
| Brand Name | J&X | Model Number | JX-UHP | |
| Type | Electrode Block | Application | steel smelting | |
| Diameter | Dia200-700mm | Length | 1800-2200mm | |
| Grade | UHP (Ultra High Power) | Thermal Expansion | 1.4-2.8 |
Product Description
Specifications
1. Grade: RP, HP,UHP2. Product Name: graphite electrode
3. Brand Name: J&X
Graphite Electrode
Technical Data | ||||||||
PROPERTY | JXRP | JXHP | JXUHP | |||||
1 | 2 | 1 | 2 | 1 | 2 | |||
Electric resistance | μΩm ≤ | electrode | 8.5 | 9.0 | 6.5 | 7 | 6.0 | 6.5 |
nipple | 8.0 | 8.5 | 6.0 | 6.5 | 5.0 | 5.5 | ||
Bending strength | Mpa ≥ | electrode | 8.0 | 7.8 | 11.0 | 10.5 | 11.0 | 10.0 |
nipple | 13.5 | 13.0 | 14.0 | 14.0 | 16.5 | 16.0 | ||
Elastic modulus | Gpa ≤ | electrode | 8.0 | 9.3 | 11.0 | 12.0 | 13.5 | 14.0 |
nipple | 13.0 | 14.0 | 15.0 | 16.0 | 14.5 | 18.0 | ||
Bulk density | g/cm³ ≥ | electrode | 1.56 | 1.52 | 1.62 | 1.60 | 1.65 | 1.64 |
nipple | 1.70 | 1.68 | 1.72 | 1.70 | 1.72 | 1.70 | ||
Ash content | % ≤ | electrode | 0.3 | 0.5 | 0.2 | 0.3 | 0.2 | 0.3 |
nipple | 0.4 | 0.5 | 0.2 | 0.3 | 0.2 | 0.3 | ||
C.T.E | 100-6/℃ ≤ | electrode | 2.8 | 2.9 | 2.4 | 2.4 | 1.5 | 1.5 |
nipple | 2.7 | 2.8 | 2.2 | 2.2 | 1.4 | 1.4 | ||
PACKAGE
JX MAIN MARKET ALL OVER THE WORLD
JX PRODUCTION SHOP
JX PROFESSIONAL TEST EQUIPMENTS
