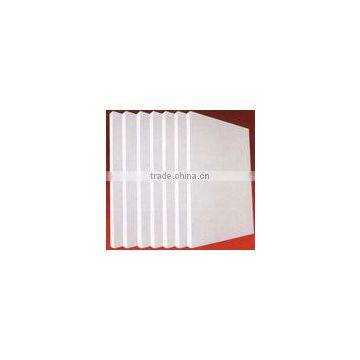

Ceramic fiber board 1430
- Qingdao
- T/T D/P D/A
You May Like
Product Details
| Application | Heat Insulation | Thickness | 25/50mm, 25/50mm | |
| Width | 600/1000mm | Length | 1200/900mm | |
| Grade | HAZ (High Aluminum Zirconium) | Chemical Composition | Al2O3+ SiO2+ ZrO2 | |
| Working Temperature | 1350 | Thermal Conductivity | 0.085(400°C);0.132(800°C);0.180(1000°C) | |
| Model Number | JX-TXB | Brand Name | JX |
Product Description
Specifications
1.Material: Ceramic fiber board2.Function: fire-resistance
3.Thickness:25/50mm
4.Temperature Type:1050,1260,1360,1430
JX Ceramic Fiber Board (JX-TXB)
JX-TXB is made by the continous processing method. It’s widely used as the back lining of different industrial furnace for example: the kiln in the field of cement building, ceramic field, metallurgical and petrochemical industry etc.
Classification Temp | 1050 | 1260 | 1260 | 1360 | 1430 | |
Working Temp | 950 | 1050 | 1100 | 1200 | 1350 | |
JX-TXT Density(kg/m3) | 96 128 | 96 128 | 96 128 | 128 160 | 128 160 | |
JX-TXB Density(kg/m3) | 260 400 | 260 400 | 260 400 | 260 400 | 260 400 | |
Rate of Liner(%) (24th,Density128Kg /m3) | -4 (950°C) | -3 (1000°C) | -3 (1100°C) | -3 (1200°C) | -3 (1350°C) | |
JX-TXT Rate of Thermal Conductivity (w/m.k) (Density 128Kg /m3) | 0.09(400°C) 0.176(800°C) | 0.09(400°C) 0.176(800°C) | 0.09(400°C) 0.176(800°C) 0.22(1000°C) | 0.132(600°C) 0.22(1000°C) | 0.76(600°C) 0.22(1000°C) | |
JX-TXB Rate of Thermal Conductivity (w/m.k) (Density 128Kg /m3) | 0.085(400°C) 0.132(800°C) 0.180(950°C) | 0.085(400°C) 0.132(800°C) 0.180(1000°C) | 0.085(400°C) 0.132(800°C) 0.180(1000°C) | 0.085(400°C) 0.132(800°C) 0.180(1000°C) | 0.085(400°C) 0.132(800°C) 0.180(1000°C) | |
JX-TXT Tensile Strength (Mpa) (Density 128Kg /m3) | 0.08-0.12 | 0.08-0.12 | 0.08-0.12 | .08-0.12 | 0.08-0.12 | |
JX-TXB Tensile Strength (Mpa) (Density 128Kg /m3) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |
Chemical Composition(%) | Al2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
Al2O3 + SiO2 | 96 | 97 | 99 | 99 | --- | |
Al2O3+ SiO2+ ZrO2 | --- | --- | --- | --- | 99 | |
ZrO2 | --- | --- | --- | --- | 15-17 | |
Packaging | Bags/Cartons | |||||
JX-TXT Size (mm) | 7200 x 610 x 25,3600 x 610 x 50 Other made according to customer’s requirement | |||||
JX-TXB Size (mm) | 1200 x 1000 x 25/50,900 x 600 x 25/50 Other made according to customer’s requirement | |||||
