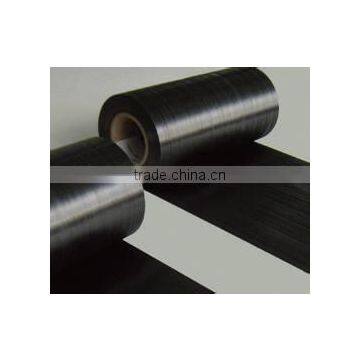

JX 15003 Carbon fiber prepreg
- China port
- T/T
You May Like
Product Details
| Brand Name | J&X | Model Number | JX-CFP | |
| Application | Other, intermediate material to manufacture sth | Shape | Other, in rolls | |
| Dimensions | 75-200g/sqm | Product Type | Carbon Fiber Cloth |
Product Description
Specifications
JX-CFP is the intermediate material to manufacture the sports equipments such as fishing rod, golf clubs, tennis racket, bicycle Introduction
Carbon fiber prepreg is produced by the forming methods of the vacuum bag moulding, mould pressing and autoclave. The prepregs we are supplying can meet different demands: thickness, resin content, VOC, resin flowability and pot life.
Specification
Classifiaction | Item NO. | CF Content (g/m2) | Resin Content (%) | Area Density (g/m2) | Thickness (mm) | Width (cm) |
Non-stipulated fabric | JX 04000 | 40 | 48 | 77 | 0.04 | 100 |
JX 05400 | 54 | 40 | 90 | 0.05 | 100 | |
JX 07500 | 75 | 38 | 121 | 0.08 | 100 | |
JX 10000 | 100 | 36 | 156 | 0.11 | 100 | |
JX 12500 | 125 | 34 | 190 | 0.12 | 100 | |
JX 15000 | 150 | 34 | 227 | 0.15 | 100 | |
JX 17500 | 175 | 34 | 265 | 0.18 | 100 | |
JX 20000 | 200 | 34 | 303 | 0.21 | 100 | |
Stipulated fabric | JX 05403 | 54 | 40 | 127 | 0.09 | 100 |
JX 07503 | 75 | 38 | 160 | 0.12 | 100 | |
JX 10003 | 100 | 36 | 193 | 0.15 | 100 | |
JX 12503 | 125 | 34 | 229 | 0.16 | 100 | |
JX 15003 | 150 | 34 | 266 | 0.19 | 100 | |
JX 17503 | 175 | 34 | 304 | 0.22 | 100 | |
JX 20003 | 200 | 34 | 342 | 0.25 | 100 | |
Net fabric | JX 10001 | 100 | 36 | 182 | 0.28 | 100 |
JX 12501 | 125 | 34 | 216 | 0.29 | 100 | |
JX 15001 | 150 | 34 | 253 | 0.32 | 100 | |
Woven fabric | JX1k-plain | 125 | 38 | 202 | 0.17 | 100 |
JX3k-plain | 200 | 40 | 333 | 0.28 | 100 | |
JX6k-plain | 330 | 40 | 550 | 0.39 | 100 |
