Welded wire mesh(15 years factory)
US$ 3 - 15
/ Piece
2000 Pieces(Min. Order)
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
China supplies !! used Wire mesh fence for high way
-
High quality trench Grating Steel Bar Grating
-
Low Carbon Steel Expanded Metal Mesh Steel Bar Grating
-
galvanized steel bar grating,galvanized steel grating
-
galvanized sideroad walkway drainage /trench flat bar floor grating /metal bar grating
-
(ISO 9001)hot dip galvanized serrated steel bar grating factory
Product Details
| Place of Origin | Hebei, China | Brand Name | HonSen | |
| Model Number | Hswm-1589 | Material | Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire | |
| Type | Welded Mesh | Application | Fence Mesh | |
| Hole Shape | Square | Aperture | 1''x2'' | |
| Wire Gauge | BWG14-BWG23 |
Product Description

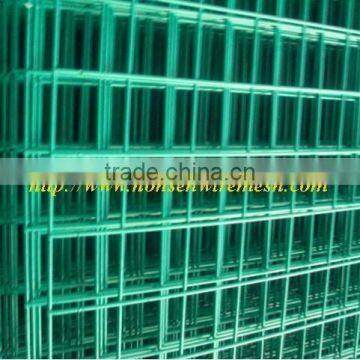

Welded wire mesh
| Specifications of Welded Wire Mesh |
GAUGE | MESH | W X L | VN.W/ROLL (KGS) | LOAD CAPABILITY (ROLLS/20') |
BWG14 | 1" X 1" | 3' X 100' | 56 | 240 |
2" X 1" | 3' X 100' | 41 | 245 | |
BWG15 | 1" X 1" | 3' X 100' | 42 | 275 |
2" X 1" | 3' X 100' | 32 | 285 | |
BWG16 | 1" X 1" | 3' X 100' | 35 | 330 |
2" X 1" | 3' X 100' | 27 | 360 | |
3/4" X 3/4" | 3' X 100' | 47 | 300 | |
BWG17 | 1" X 1" | 3' X 100' | 28 | 360 |
1" X 1/2" | 3' X 100' | 41 | 330 | |
3/4" X 3/4" | 3' X 100' | 36 | 335 | |
BWG18 | 1" X 1" | 3' X 100' | 19 | 475 |
1/2" X 1/2" | 3' X 100' | 40 | 415 | |
1" X 1/2" | 3' X 100' | 29 | 415 | |
3/4" X 3/4" | 3' X 100' | 26 | 440 | |
BWG19 | 1" X 1" | 3' X 100' | 14 | 565 |
1/2" X 1/2" | 3' X 100' | 28 | 490 | |
1" X 1/2" | 3' X 100' | 20 | 525 | |
3/4" X 3/4" | 3' X 100' | 19 | 545 | |
BWG20 | 1" X 1" | 3' X 100' | 10 | 740 |
1/2" X 1/2" | 3' X 100' | 20 | 580 | |
3/4" X 3/4" | 3' X 100' | 13 | 630 | |
BWG21 | 1/2" X 1/2" | 3' X 100' | 16 | 700 |
BWG22 | 1/2" X 1/2" | 3' X 100' | 13 | 800 |
BWG23 | 1/4" X 1/4" | 3' X 100' | 20 | 800 |
Galvanized Fencing Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2" x 3" | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mm x 100mm | 2.11mm,2.5mm |
4" x 4" | 100mm x 100mm | 2.0mm,2.5mm |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
PVC Coated Welded Mesh: | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4" x 3/4" | 19mm x 19mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.2m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||
