High Quality Expanded wire mesh
US$ 1 - 3
/ Piece
300 Pieces(Min. Order)
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Stainless Steel Wire | |
| Type | Expanded Mesh | Application | Protecting Mesh | |
| Weave Style | Plain Weave | Wire Diameter | 0.5-6mm | |
| Technique | Perforated | Model Number | Hswm-1592 | |
| Brand Name | HonSen |
Product Description

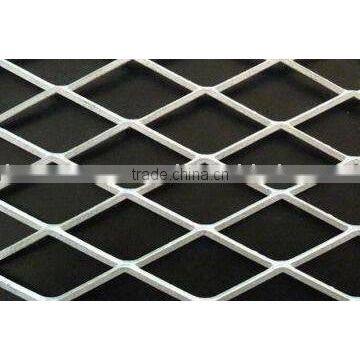

Expanded wire mesh
Material: Aluminium plate, thin low carbon steel plate, stainless steel plate, AL-MG alloy plate, Copper plate, Nickel plate.
The material is cut and stretched while still leaving it attached at the knuckle. This allows it to retain its shape when cut and can't separate or fray. Often cutting to shape is the only fabrication needed.
Expanded mesh sheets can be supplied in a variety of finishes, thickness, raised or flattened. Flattened is smoother and does not indent soft materials if this is a consideration but is not as strong as the more robust raised mesh.
| thickness | inch of mesh grid | inch of standard finished product | count quality | |||
| short distance | long distance | width of wire stems | width of mesh | length of mesh | ||
| D | TL | TB | b | B | L | kg/m2 |
| 0.5 | 3 | 6 | —— | 100 200 | 2000 | 1.76 |
| 3.2 | 8 | |||||
| 5 | 10 | |||||
| 6 | 12.5 | 1800 | 3000 | 1.08 | ||
| 7 | 14 | |||||
| 8 | 16 | 2000 | 3340 | |||
| 9 | 20 | |||||
| 12 | 30 | 1.35 | 1800 2000 | 3600 4000 | 0.88 | |
| 10 | 25 | 1.12 | ||||
| 0.8 | 10 | 25 | 1.12 | |||
| 12 | 30 | 1.35 | 1.41 | |||
| 15 | 40 | 1.68 | ||||
| 1.0 | 10 | 25 | 1.12 | |||
| 12 | 30 | 1.35 | 1.76 | |||
| 15 | 40 | 1.68 | ||||
| 1.2 | 10 | 25 | 1.13 | |||
| 12 | 30 | 1.35 | 2.12 | |||
| 15 | 40 | 1.68 | ||||
| 18 | 50 | 2.03 | ||||
| 1.5 | 15 | 40 | 1.69 | —— | —— | 2.64 |
| 18 | 50 | 2.03 | ||||
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.25 | 3.53 | |||
| 2.0 | 18 | 50 | 2.03 | 1800 2000 2500 | 3600 4000 5000 | |
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.26 | 4.42 | |||
| 36 | 100 | 4.05 | ||||
| 44 | 120 | 4.95 | 5.29 | |||
| 3.0 | 36 | 100 | 4.05 | |||
| 44 | 120 | 4.95 | ||||
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
| 2500 | 6400 | |||||
| 65 | 180 | 4.60 | 2000 | 6400 | 3.33 | |
| 2500 | 8000 | |||||
| 4 | 22 | 60 | 4.5 | 1500 | 2000 | 2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 | ||
| 38 | 100 | 6 | 2000-4500 | 9.91 | ||
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
| 35 | 80 | 6 | 2000-4000 | 14.71 | ||
| 38 | 100 | 7 | 2000-4500 | 14.67 | ||
| 56 | 150 | 6 | 2000-6000 | 8.41 | ||
| 76 | 200 | 6 | 2000-6000 | 6.19 | ||
| 6 | 32 | 80 | 7 | —— | 2000-4000 | 20.60 |
| 38 | 100 | 7 | 2000-4500 | 17.35 | ||
| 56 | 150 | 7 | 2000-6000 | 11.77 | ||
