Telecom Cabinet Heat Exchanger Ventilator
- Xiamen port
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | AIR-ERV | |
| Model Number | HEC--C120 | Type | Evaporator | |
| Application | Refrigeration Parts | Certification | CE |
Product Description
Specifications
1.Telecom cabinet heat exchanger2.Design for Industry/ communication
3.ISO9001:2008/CE
4.Wall/Door/Top mouted
Telecom cabinet heat exchanger ventilator
Introduction:
HEU-C Series Cabinet Ventilator is specially designed for industrial cabinets and communication cabinets, in order to eliminate the heat which produced during the electronic equipment (PLC, converter machine, relay, driving system, telecom module) working; the Cabinet Ventilator not only provide the ideal temperature and humidity for the cabinet, but also separate the dust and moisture from the cabinet, prolong the service life of electronic equipment and improve the reliability of system.
Product Characteristic:
1.High Efficiency

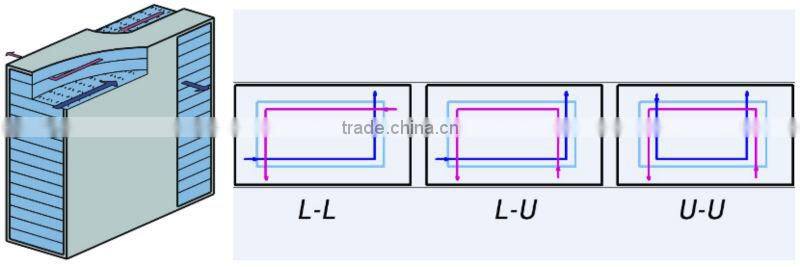

Special Heat Exchanger (Cross flow or counter flow), ensure the high heat efficiency
2.Waterproof, Dustproof
Closed circulating cooling system, inside air separate from outside air, insulate the outside pollution, keep clean and dry in cabinet, also with high IP
3.Stable Running
High quality accessories, reliable performance index
4.Easy Installation
Ultrathin physical design, compact shape; side, door and top installation available for selection.
5.Simple Maintainance
Less running parts, long service life
6.Full Functions
DC, AC fans available for selection,electric heater on request.
Technical parameter:
Product Model | |||||
Parameter | Unit | HEU-C060 | HEU-C080 | HEU-C100 | HEU-C120 |
Cooling capacity | W/K | 60 | 80 | 100 | 120 |
Air Volume | M3/h | 300 | 400 | 500 | 600 |
Static pressure | Pa | 20 | |||
Power | W DC:48V | 75 | 115 | 157 | 220 |
Voltage | W AC:220V | Optional | |||
V | DC:48V AC:220V | ||||
Temp. Range | °C | -40 to 70°C 0-100%RH | |||
Noise | dB(A) | <60 | |||
Dimension | mm | 1000x380x138 | 1050x435x158 | 1200x440x188 | 1350x480x218 |
Weight | Kg | 22 | 26 | 31 | 38 |
Protection grade | IP | ≥IP54 | |||
Note: Except the standard product, we also could OEM products on request.

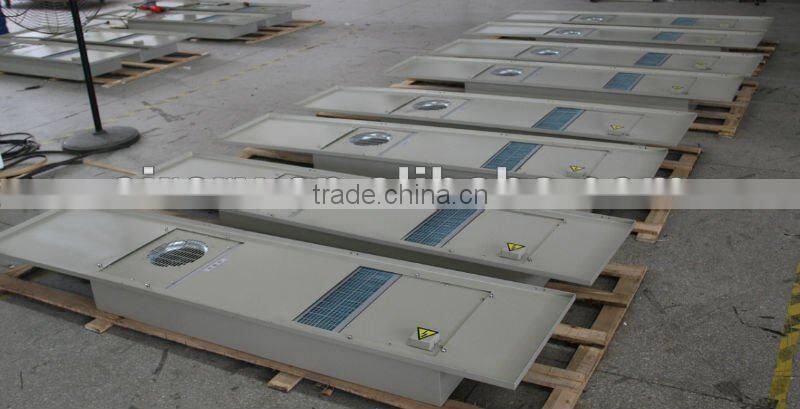

Outdoor cabinet heat exchanger:

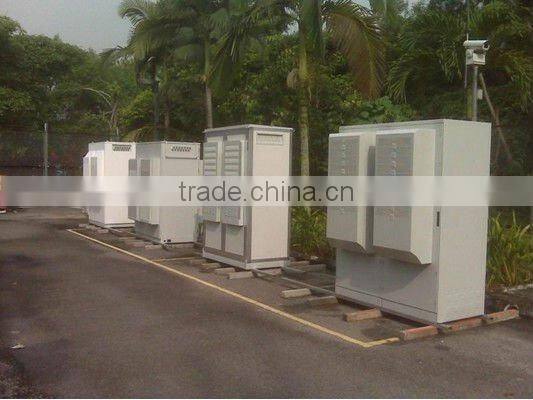

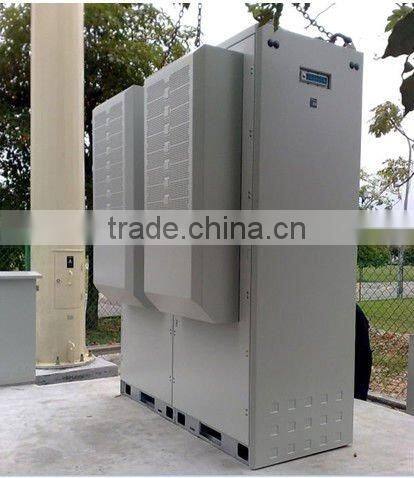

Installation on Telecome cabinet case:
