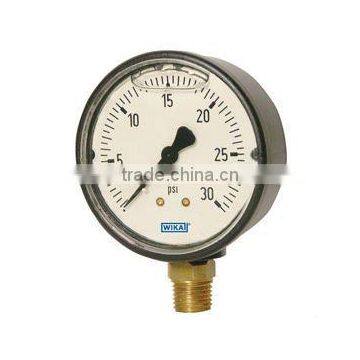

Bourdon Tube Pressure Gauge Type 113.13 - ABS Case with Liquid Filling Standard Series

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Germany		Brand Name	WIKA
Model Number	113.53

Bourdon Tube WIKA Pressure Gauge Stainless Steel Case / Liquid-Filled

Intended for severe service conditions where pulsation or vibration exist
Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts
Hydraulic systems and compressors

Bourdon Tube Pressure Gauge Type 113.13

Design EN 837-1 & ASME B40.100	Pressure connection Material: copper alloy 1/8” or ¼” NPT (¼” not available in 1½” case size) Lower mount (LM) or center back mount (CBM) (1½” size only available with CBM connection)
Sizes 1½”, 2” & 2½” (40, 50 & 63 mm)	Bourdon tube Material: copper alloy 3 0” Hg (Vac) to 800 psi C-type 1000 psi to 6000 psi helical type
Accuracy class ± 3/2/3% of span (ASME B40.100 Grade B)	Movement Copper Alloy
Ranges (All ranges not stocked) Vacuum / Compound to 200 psi Pressure from 15 psi to 6,000 psi	Dial White ABS with stop pin and black lettering
Working pressure Steady: 3/4 of full scale value Fluctuating: 2/3 of full scale value Short time: full scale value	Pointer Black ABS
Operating temperature Ambient: -4°F to 140°F (-20°C to 60°C) Media: 140°F (+60°C) maximum	Case 1½”: black ABS 2” & 2½”: black ABS with integral profile ring O-ring seal between case and socket Ranges <_ 100 psi with internal pressure compensation
Temperature error Additional error when temperature changes from reference temperature of 68°F (20°C) +0.4% for every 18°F (10°C) rising or falling. Percentage of span.	Window Acrylic, ultrasonically welded to case
Weather protection Weather tight (IP 65), NEMA 4X	Case fill Glycerine 99.7%
