Home > Products > gauge > Bourdon Tube Pressure Gauges Solid-Front Test Gauge - Direct Drive Type 332.34DD

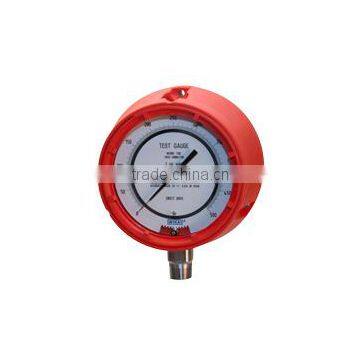

Bourdon Tube Pressure Gauges Solid-Front Test Gauge - Direct Drive Type 332.34DD

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Germany		Brand Name	Wika
Model Number	332.34DD

Bourdon Tube Pressure Gauges Solid-Front Test Gauge - Direct Drive Type 332.34DD

Test gauge accuracy for rough service conditions that include severe shock and vibration
Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
Process industry: chemical, petrochemical, refining, power stations, mining, environmental technology, mechanical engineering and plant construction

Design ASME B40.100	Weather protection Weather resistant (NEMA 3 / IP54)
Sizes 4½” (115 mm) dial size	Pressure connection Material: 316 SS Lower mount (LM) and lower back mount (LBM) 1/4” or 1/2” NPT
Accuracy class ± 0.25% of span (ASME B40.100 Grade 3A)*	Bourdon tube / wetted parts Material: Inconel X-750 316 SS socket & capillary All connection nicro-brazed
Ranges Vacuum / Compound to 300 psi Pressure from 30 psi to 10,000 psi or other equivalent units of pressure or vacuum	Filter Porous metal disk - 316 SS Porosity: 25 to 50 microns
Working pressure Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.5 x full scale value	Dial White aluminum with mirror band, black lettering Mirror band dial - aluminum substrate with white polyester film and black lettering
Operating temperature Ambient: -65°F to +190°F Medium: -65°F to +400°F	Pointer Black aluminum, adjustable, knife edge External zero adjustment Adjustment screw located on window
Temperature error Additional error when temperature changes from reference temperature of 68°F (20°C) ±0.4% for every 18°F (10°C) rising or falling. Percentage of span.
