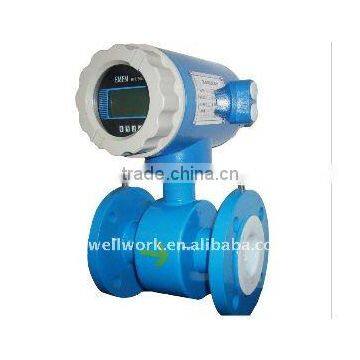

electromagnetic flowmeter

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

LGDC

Model Number

LGDC-40/65/80/200/300/

1. electromagnetic flowmeter
2.DN40 Flange Connection
3.SS316 Electrode
4.Caborn Case Material

Item	Compact type			Remote type
	Flange connection	Inserted type	Threaded connection	Flange connection	Inserted type	Threaded connection
Caliber(mm)	15~3000	125~3000	10~25	15~3000	125~3000	10~25
Pressure(MPa)	0.6,1.0,1.6,4.0
Accuracy	±0.5%, ±0.3%(±0.2% available for special order)
Applicable medium	Conductive liquid and slurry
Medium Temperature	≤150°C
Medium Conductivity	≥5μS/cm
Medium Velocity	≤15 m/s
Ambient	Temperature:-25°C~+60°C, Humidity: 5%~90%
Liner Material	DN10mm~32mm: Polytetrafluoroethylene(F4), Polyurethane; DN40mm~1000mm: F4, Polyurethane, Polychloropree rubber; DN1000mm~3000mm: Polychloropree rubber; Others: Polyvinyl fluoride, Fluorinated ethylene-propylene(FEP), etc.
Electrode Material	Mo-containing stainless steel, Hastelloy B, Hastelloy C, Titanium alloy, Tantalum alloy, Platinum-iridium alloy, Stainless steel-coated tungsten carbide
Electrode Type	Fixed type(DN150~DN2600); Blade type(DN300~DN1600)
Flange Material	SS, CS
Communication	RS485, RS232, HART, Profibus-DP
Signal Output	Analog 4-20mA, isolated, load resistor≤750Ω
Power Supply	AC 85-265V, 45-63Hz, power≤20W; DC 11-40V; lithium battery(3.6V)			AC 85-265V, 45-63Hz, power≤20W; DC 11-40V
Display	LCD display with back light.			Intelligent flow totalizer display.
Protection Grade	IP65			IP65, IP67, IP68
Explosion- proof Grade	Exdm II CT4, md II BT4			non
