300 Mg/h Water Treatment Spa Ozone Generator for Spa

Specifications

1-Replace all other model ozone generator in Spa & hot tubs
2-85-250 VAC
3-US design&quality
4-Have different kind ozonators

How BWT's Aquatic 2 Works:

BWT Ozone Generators produce ozone gas which is introduced to spa water through suction created by the spa injector. Tubing is used to connect the ozone generator to an injector (pictured below). The injector acts similarly to a vacuum, and pulls the ozone gas out of the Aquatic 2 and into the water.

Venturi Injector Method

BWT Ozone also manufactures our own venturi injectors ranging in size from 1/4 inch, 1/2 inch, 3/4 inch, 1 inch, 1.5 inch and 2 inch in diameter. You will need to choose the correct size venturi for your hot tub to plumb into. Injectors are sold separately.

Quick Installation and Start-Up!

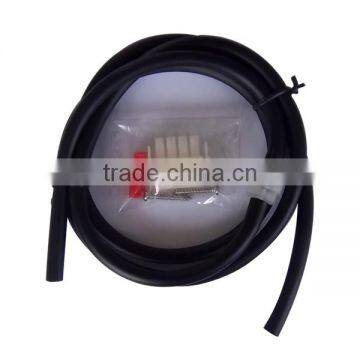

The Aquatic 2 is pre-assembled and ready to install. User manual, check valve, 5 feet of tubing, four hose ties and two screws and plastic anchor for mounting are all included in the Aquatic 2 package.

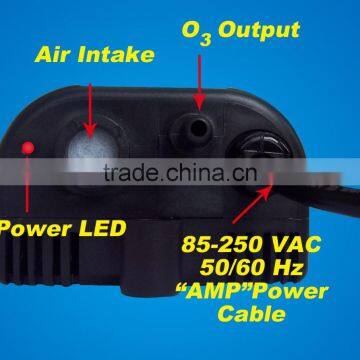

Aquatic 2 features a universal plug-type

The Aquatic 2 features a universal plug-type meaning that it can be wired one way for 110v and another for 240v. The user manual provides a complete wiring diagram and instructions.

Enjoy crystal clear water with easy maintenance!

BWT Ozone recommends running the Aquatic 2 on a 6hr/day ozone cycle in accordance to your hot tub pump timer. The following table shows anticipated longevity of the Aquatic 2 in accordance to daily run-times: 2hr/day= 3 years 3hr/day=2 years 6hr/day= 1 year Individual pump times may vary according to user preference.

Specifications:

• Technology: CD Corona Discharge Technology
• Electric: 85-250 VAC, 50/60Hz
• Power: 6 W
• Ozone output: 6 W
• Size: 3.6x 2.5x 5.7 inches
• Weight: .74 lbs
• Connection: AMP model
• Cable: 5.5 ft
• Check Valve: 1/4 inch
• Tube: 5 ft
