Home > Products > Scaffolding Tube > ERW Welded Carbon Steel Round Pipe/tubes With Oil Surface
ERW Welded Carbon Steel Round Pipe/tubes With Oil Surface
- Tianjin(China mainland)
- T/T Money Gram
You May Like
-
MS Steel Pipe/Tube Manufacture With Oil Surface With Widely Ranged Sizes
-
ERW Welded Steel Pipe Structure Use With Anti-rust Oil
-
ERW ms Scaffolding Pipes
-
Scaffolding Steel Pipe With Standard BS1387/EN 39/BS EN10219
-
Black Welded Scaffolding Steel Pipe Q195/Q235/Q215/JIS Ss400
-
Black Welded Scaffolding Steel Pipe Q235/JIS Ss400
Product Details
| Thickness | 2.5, 8.5 | Section Shape | Round | |
| Outer Diameter | 21.3 - 325 mm | Place of Origin | Tianjin, China | |
| Secondary Or Not | Non-secondary | Application | Structure Pipe | |
| Technique | ERW | Certification | Other, ISO | |
| Surface Treatment | Galvanized | Special Pipe | API Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Material: Q195, Q235, Q215, 10#, 20#, ASTM A53,BS EN 10296,BSEN 10219
Technique: ERW
Section Shape: Round
Specification: 1/2"-12", OD: 21.3mm-325mm WT: 2.5-8.5mm
Length: 4.5m, 5.8m, 6m, 11.8m, 12m
Surface Treatment: bare,galvanized,painted
End Treatment: Threaded, beveled, plain, screwed, etc.
End protector: plastic cap, coupling, nipple, elbow, tee, flange and some other pipe fittings.
Secondary treatment: cutting, drilling, stamping, etc.
Welded line type:longitudinal
Inspection: Hydraulic Testing, Eddy Current , Infrared Test
Company Type:Manufacture
Supply Ability:8000 ton per month
Certification: ISO9001-2008
Application: Heating pipe, irrigation pipe, structure pipe, fluid
pipe,fence post, construction and so on
Main Market:South America, Africa, mid east, domestic market and European country and so on
Theory weight scale of Welded pipe and galvanized pipe (According to GB/T3091-2001 standard execution)
specification | outer diameter mm | Thickness mm | Min thickness mm | Welded pipe (6m) | galvanized pipe (6m) | |||
inner diameter | Inch | Kg/m | Kg/piece | Kg/m | Kg/piece | |||
DN15 | 1/2 | 21.3 | 2.8 | 2.45 |
|
|
|
|
DN20 | 3/4 | 26.9 | 2.8 | 2.45 | 1.66 | 9.96 | 1.76 | 10.56 |
DN25 | 1 | 33.7 | 3.2 | 2.8 | 2.41 | 14.46 | 2.554 | 15.32 |
DN32 | 1.25 | 42.4 | 3.5 | 3.06 | 3.36 | 20.16 | 3.56 | 21.36 |
DN40 | 1.5 | 48.3 | 3.5 | 3.06 | 3.87 | 23.22 | 4.10 | 24.60 |
DN50 | 2 | 60.3 | 3.8 | 3.325 | 5.29 | 31.74 | 5.607 | 33.64 |
DN65 | 2.5 | 76.1 | 4.0 | 3.5 | 7.11 | 42.66 | 7.536 | 45.21 |
DN80 | 3 | 88.9 | 4.0 |
| 8.38 | 50.28 | 8.88 | 53.28 |
DN100 | 4 | 114.3 | 4.0 |
| 10.88 | 65.28 | 11.53 | 69.18 |
DN125 | 5 | 140 | 4.5 |
| 15.04 | 90.24 | 15.942 | 98.65 |
DN150 | 6 | 168.3 | 4.5 |
| 18.18 | 109.08 | 19.27 | 115.62 |
DN200 | 8 | 219.1 | 6.0(welded pipe) |
| 31.53 | 189.18 |
|
|
DN200 | 8 | 219.1 | 6.5(galvanized) |
|
|
| 36.12 | 216.7 |






Remarks
MOQ: one 20’container
Deliver Time: 15-30 days after receiving your deposit;according to the quantity

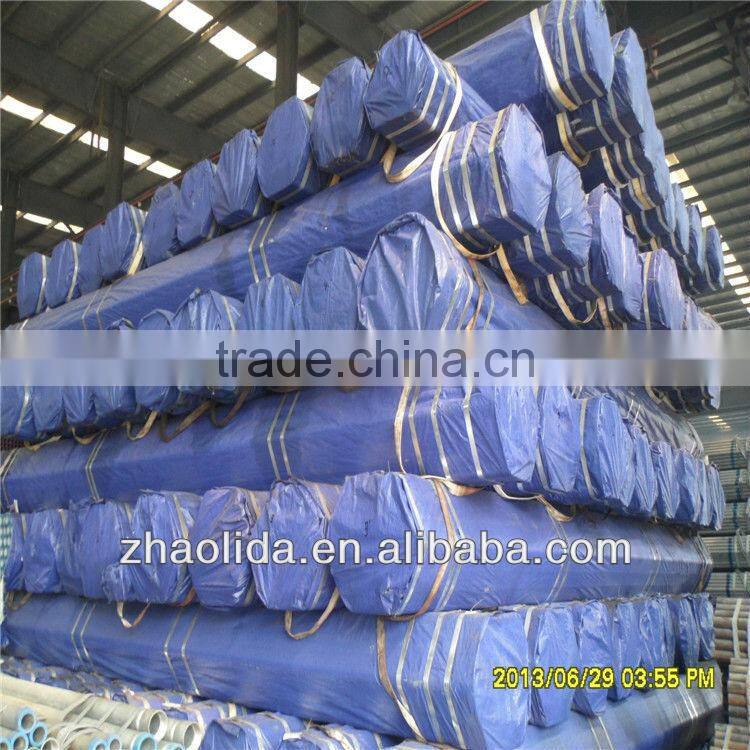

Packing:in bulk, orby PVC bag,or according to customer’s requirements
Payment terms:30%TT prepaid and balance before shipping or against copy of B/L



About us

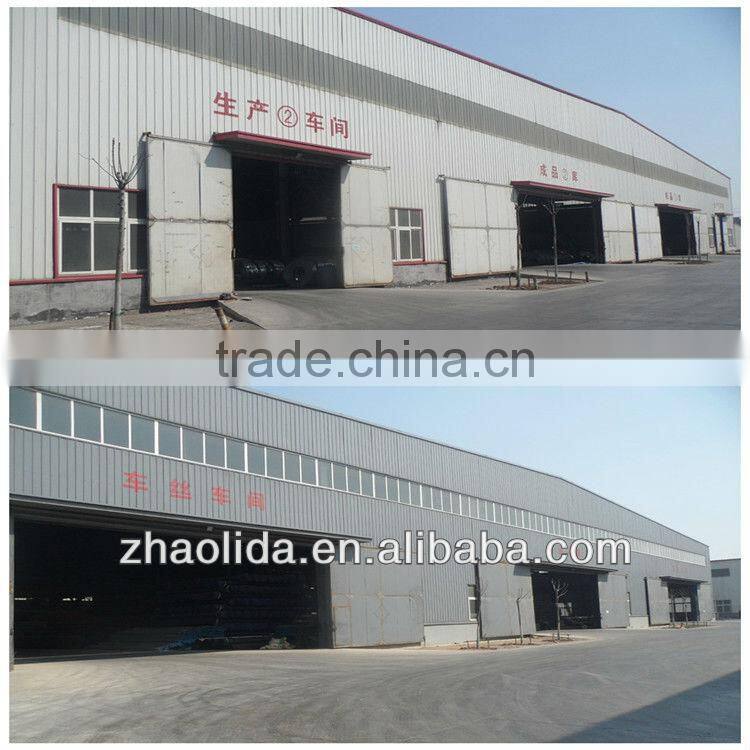

Zhaolida Steel Pipe Group is located in the largest steel base of china-----Daqiuzhuang Town.
We are a leading enterprise specialized in steel pipe , galvanized steel pipe and pre-galvanized steel pipe .We integrate trade ,storage ,process and logistics. Our area is 300000 square meters ,
our employees are over 1000 and our productivity per year is 400000 MT.
We can meet all your specific requirements and satisfy all your needs.
If you have any needs please contact with me.
Business supervisor: Nina Chu
Skype: helon_nina
Telephone: 86+18822668002
